Rib Lath Mesh/Expanded Ribbed Lath for Wall Plastering

Rib Lath Mesh/Expanded Ribbed Lath for Wall Plastering

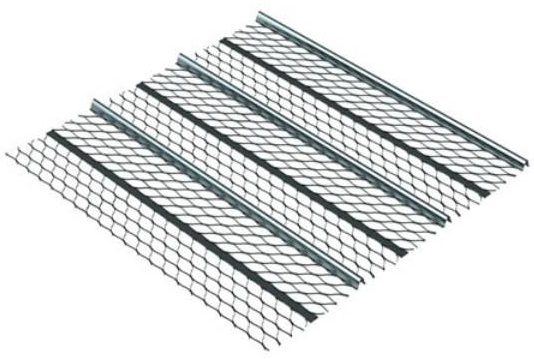

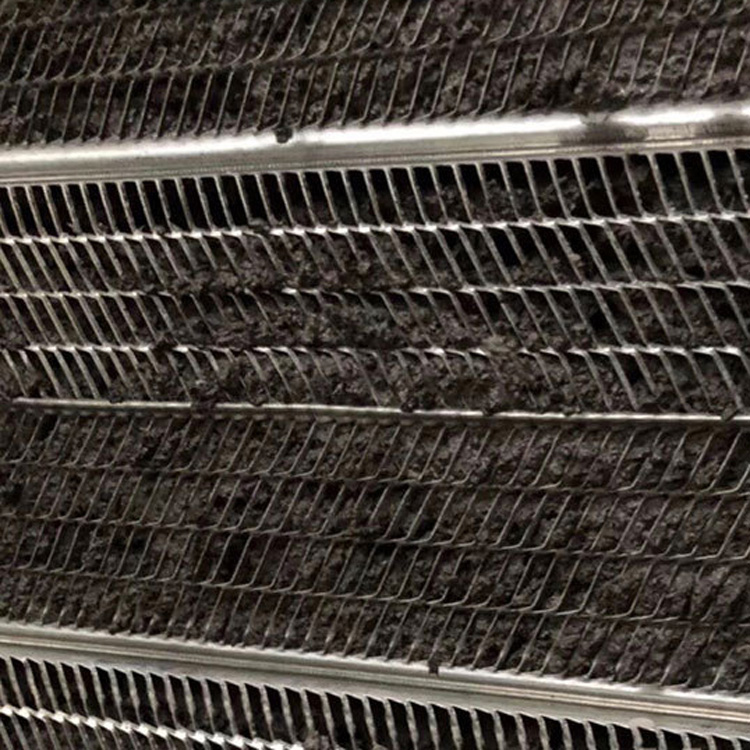

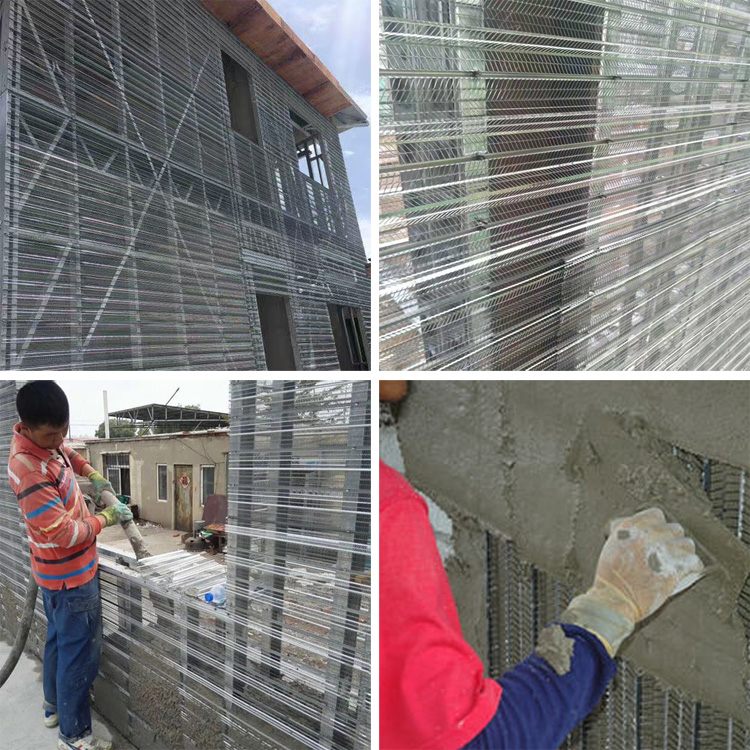

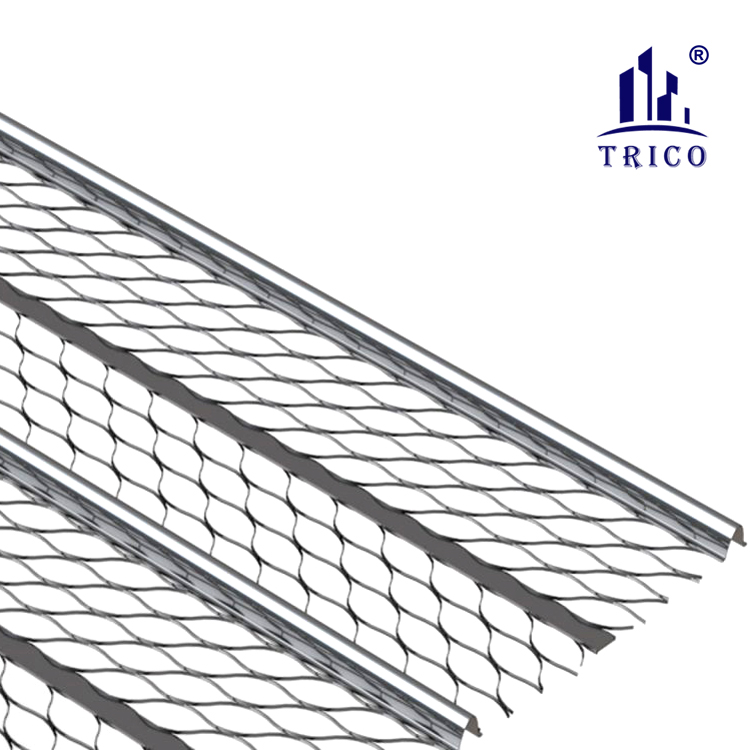

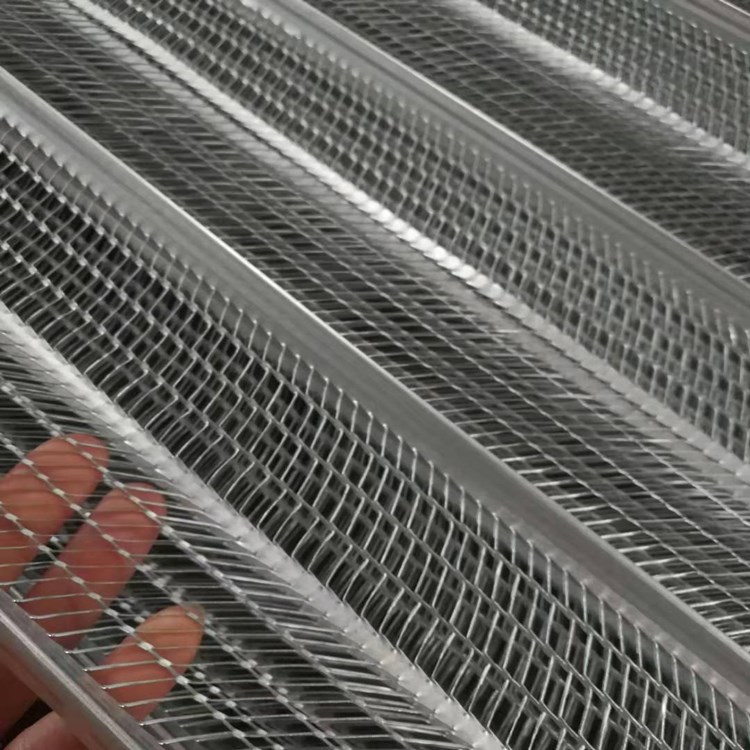

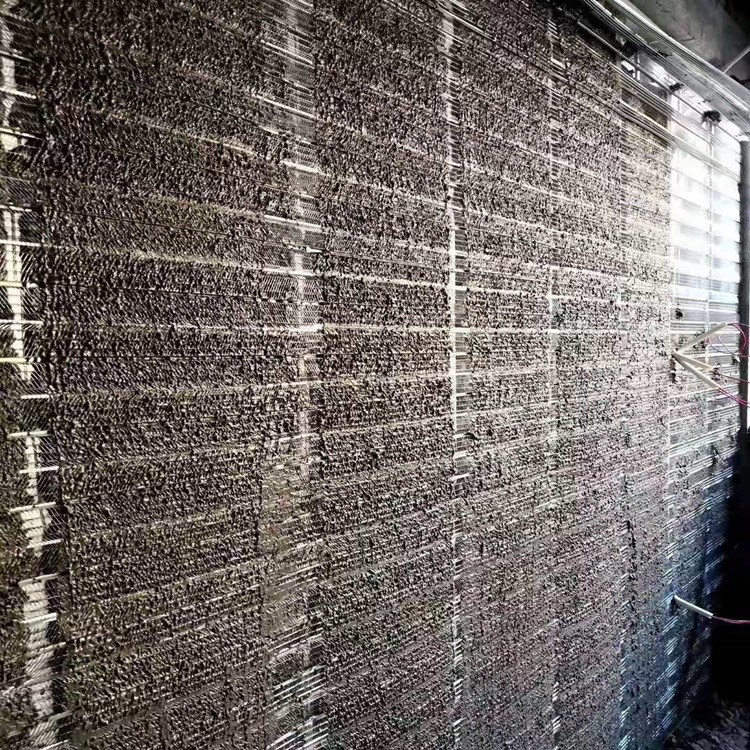

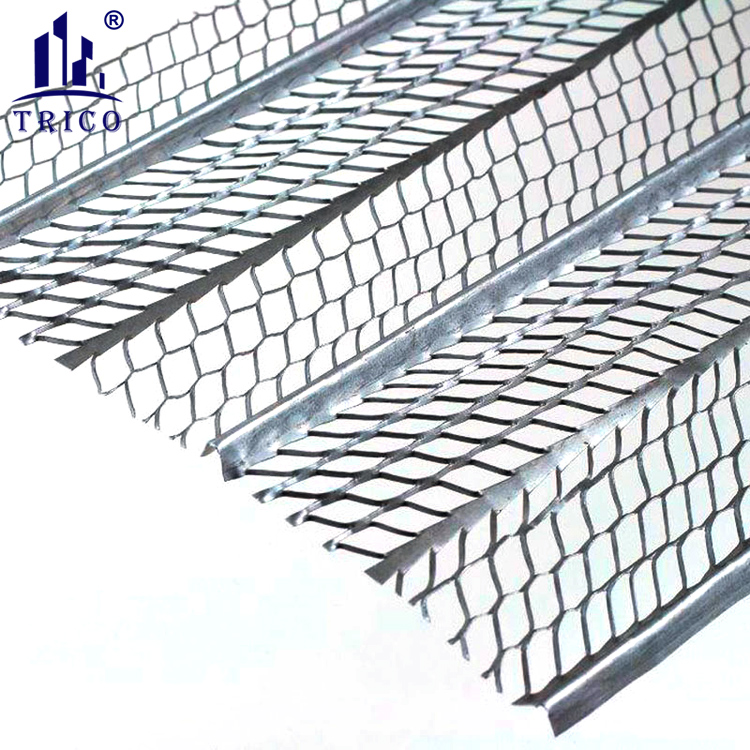

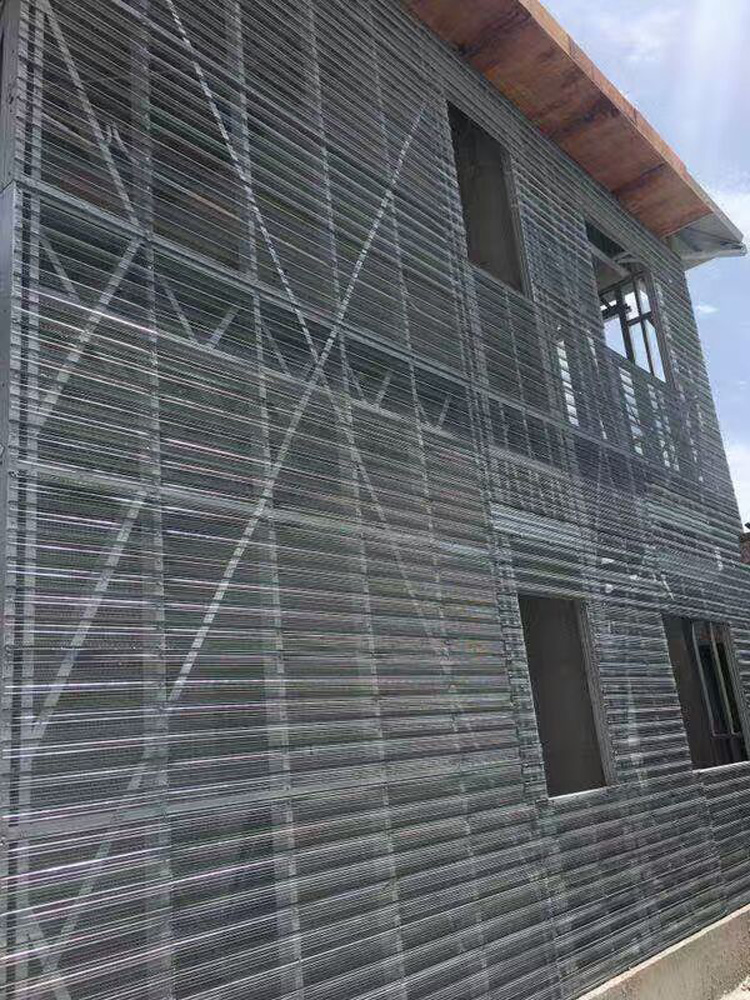

Rib lath is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet. Rib lath, also known as expanded ribbed lath, has V-ribs to offer an increased tensile strength and give a uniform plastering depth over a large coating area. Compared with common metal lath, V ribs provide added support capacity and its unique structure offers better permeability, thereby delivering greater plaster bonding and fixing properties. It is extensively used in plastering works on walls and suspended ceilings and serves as plaster base for building construction.

Rib Lath Mesh
	Material	Mild Steel
	Width	200mm, 300mm, 400mm, 500mm,600mm,700mm or as demand
	Length	2000mm,3000mm or as demand
	Thickness	0.25mm,0.30mm,0.40mm,0.45mm,0.50mm
	Rib Distance	10mm,15mm or as demand

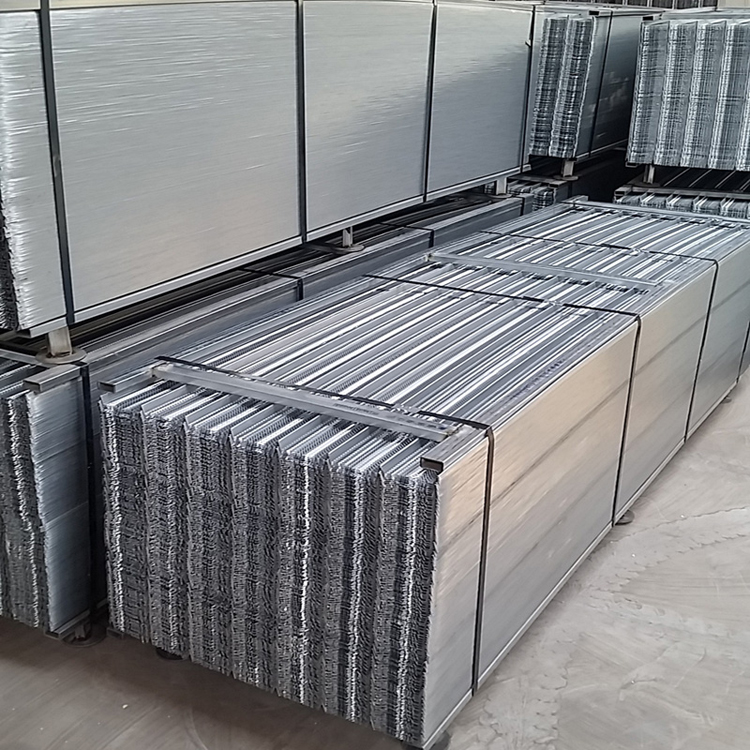

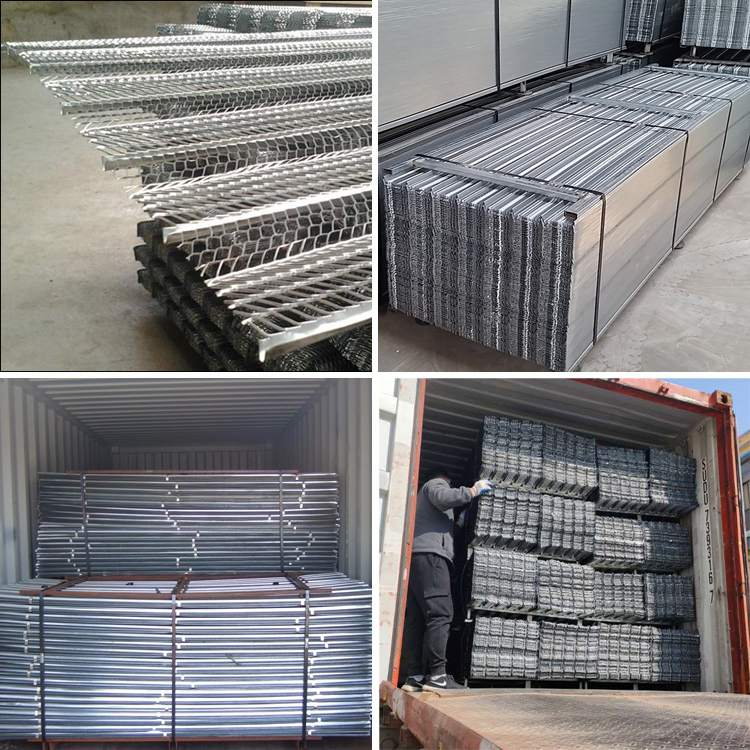

	Packing	250pcs/pallet or as demand
	Other Sizes Available

Similar Products:

Hy-Rib Permanent Stopend Formwork
	Material	Mild Steel
	Width	880mm or as demand
	Length	2200mm, 2500mm or as demand
	Thickness	0.7mm
	Surface Treatment	Hot Dip Galvanized
	Packing	250pcs/pallet or as demand

Hy Rib Mesh
	Size	2000x445mm;3000x445mm
	Thickness	0.25mm, 0.30mm, 0.35mm, 0.40mm, 0.45mm
	Color	Silver
	Surface Treatment	Hot Dip Galvanized
	Packing	250pcs/pallet or as demand
	Other Size Acceptable

Benefits

• It offers great stiffness, high tensile strength and is not easy to break.

• It provides ample keying for plastering.

• Flexible structure can be bent and shaped at will.

• Easy construction, it allow you save your time greatly while offering an even plastering surface.

• Lightweight, easy to cut, bind and nail onto the keel light steel frame for easy and fast construction.

Similar Products:

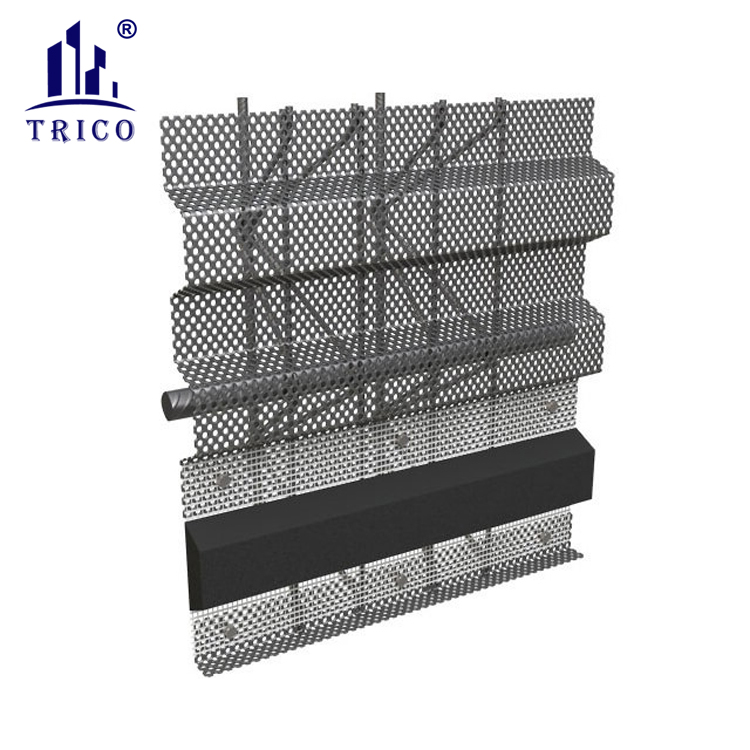

Hy-Rib Mesh for Concrete Permanent Stopend Formwork

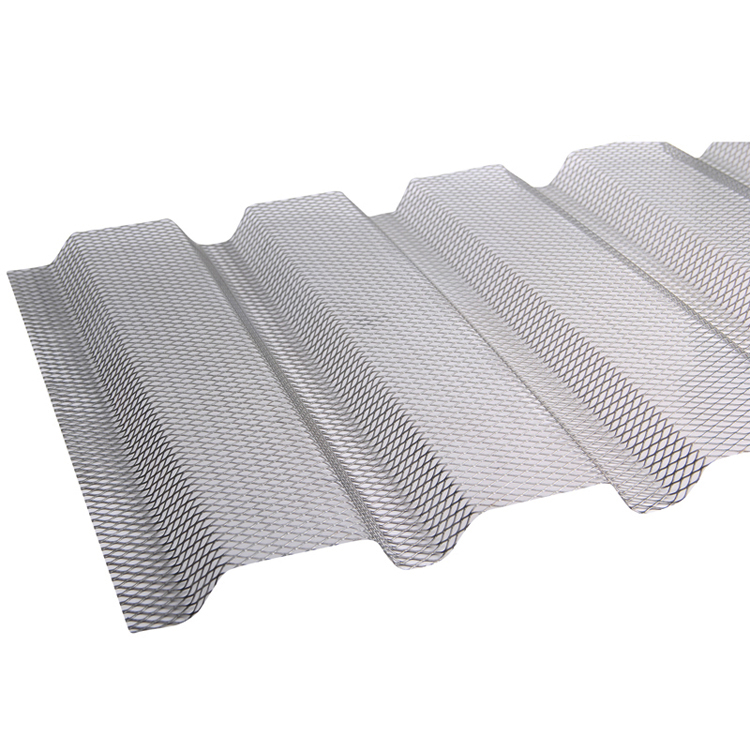

Hy-rib stop end Formwork is manufactured from hot-dipped galvanized steel sheets. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality and construction security in the following applications as concrete permanent assembly-free formwork.

Shuttering units comprised of finely meshed, trapezoidally-profiled, expanded metal, designed for creating construction joints in concrete base slabs. Units are supplied to specific project-heights on site.

Applications:

• Widely used in tunnels bridges

• Valve basement systems

• Sewage systems

• Subways

• Retaining walls

• Nuclear power plants

• Shipyards

• Water pools

• Marine engineering works

• High rise building projects

• Non-regular or bending pattern

Hy Rib Mesh for Concrete Permanent Formwork & construction joints

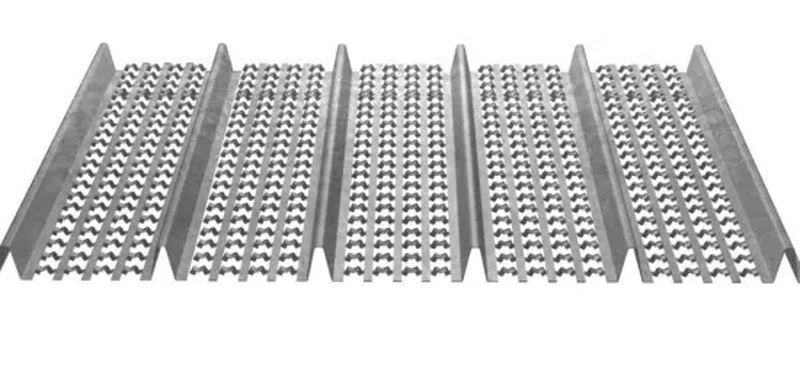

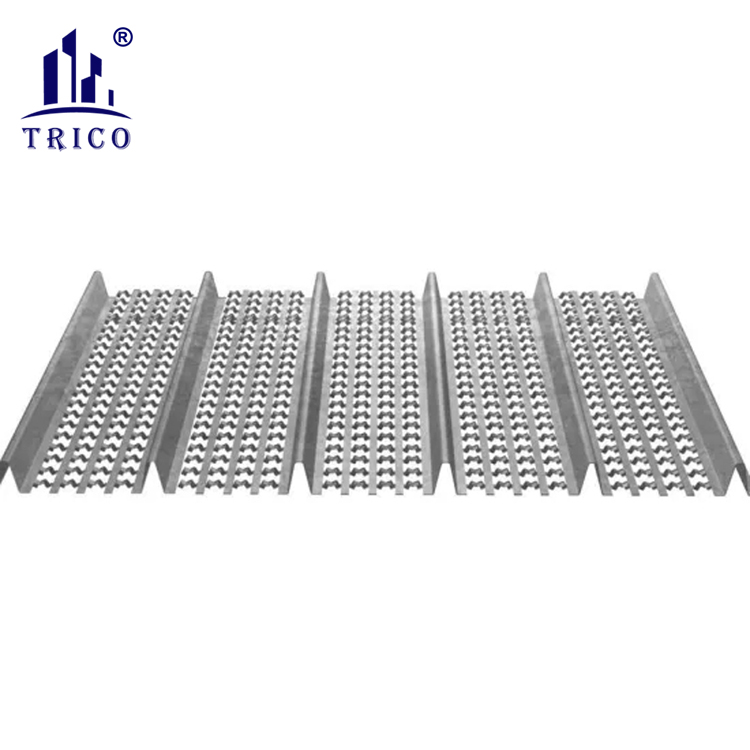

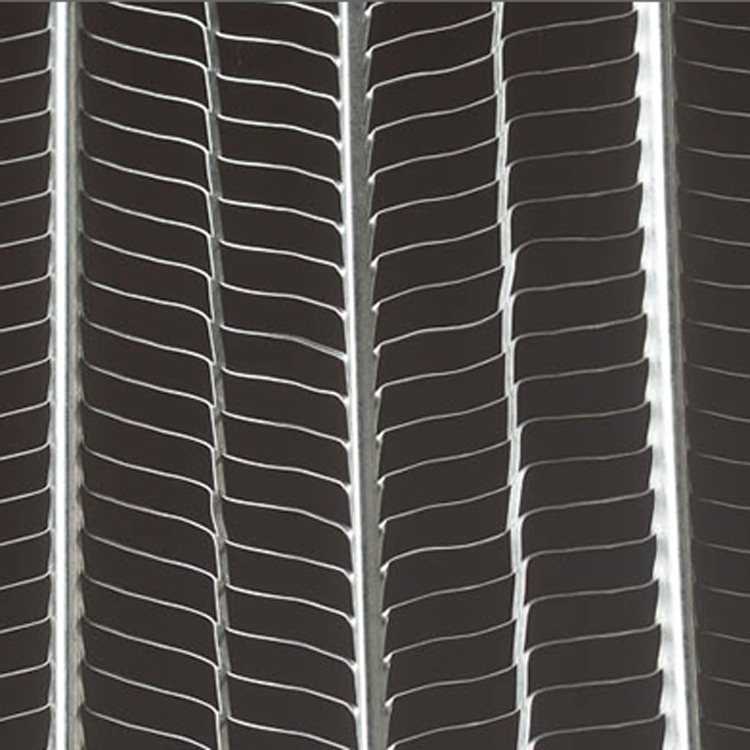

Hy rib mesh, also known as fast-ez high ribbed formwork, is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet.It is a jointless steel mesh stiffened by integral ribs. The continuous parallel V ribs are the main source of the hy rib mesh. Meanwhile, the steel mesh can be curved along the direction of V ribs. The profile of the steel mesh, in combination with the hy-rib tangs, allow the hy rib mesh can be widely used as the carrier of plaster, stucco and fireproofing material and served as a permanent formwork for concrete.

Benefits

• Allow steel bars passing through easily and binding continuously. Hy rib mesh is a special kind of steel mesh with a large number of openings. It allows steel bars with a diameter of 12 mm and below pass through the mesh easily. For steel bars with a diameter of 12 mm above, cut through the mesh opening to allow the steel bar passing though and then make sure the cut part of the opening return to its original position. It can also be installed before binding steel bars and then make sure steel bars pass through the mesh opening.

• Observe the concreting process directly. Due to its unique opening structure, it allows you observing the concreting process with your naked eyes, thereby reducing the risk of porosity and honeycomb.

• Lightweight, easy to handle and install. It weights only one tenth of the set-shaped steel formwork, which makes it easy to transport and can be installed quickly.

• Optimize the concreting process and increase the shear resistant interface. The mortar penetrates the interface through the mesh opening during concreting to form a coarse-grained interface with ideal shear resistance.

• Adapt to segmental concrete pouring. No dismantle is required before the next concrete pouring, thereby simplifying the interface preparation.

• Easy to connect and shear. Multi-performance, easy to cut, and can be bent and folded according to the required support shape.

• Good mechanical properties, low lateral pressure. The hollow-carved mesh opening design allows the concrete pressure being reduced to half of its original value, thus significantly reducing formwork support.

• No peeling off, no deformation. Hy rib mesh will neither peel off or deform even under extreme weather conditions (extreme hot or cold).

• Great concrete gripping capacity. Hy rib mesh is specially designed to retain the poured concrete.
