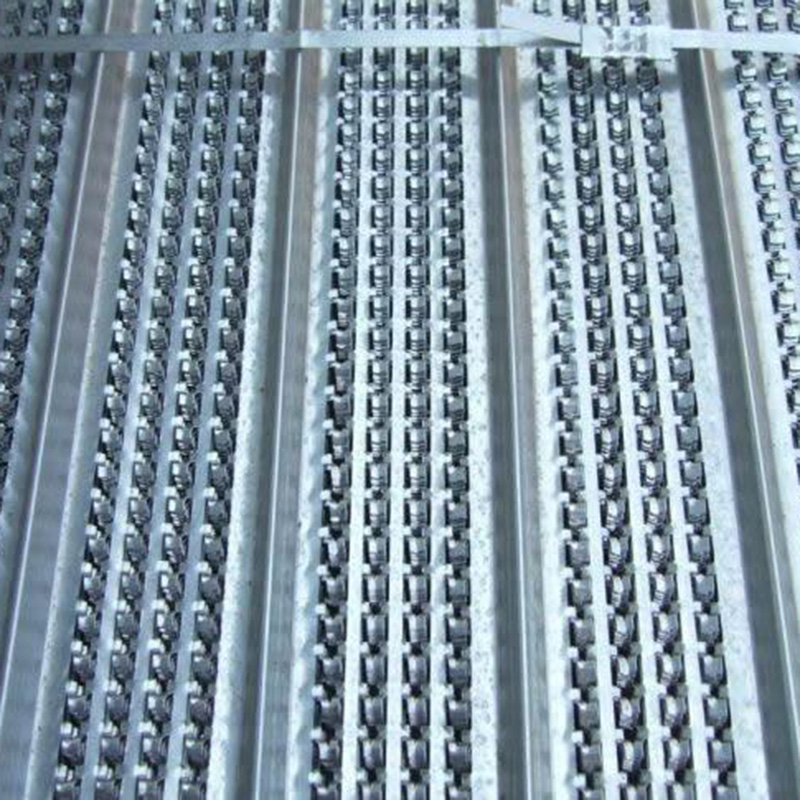

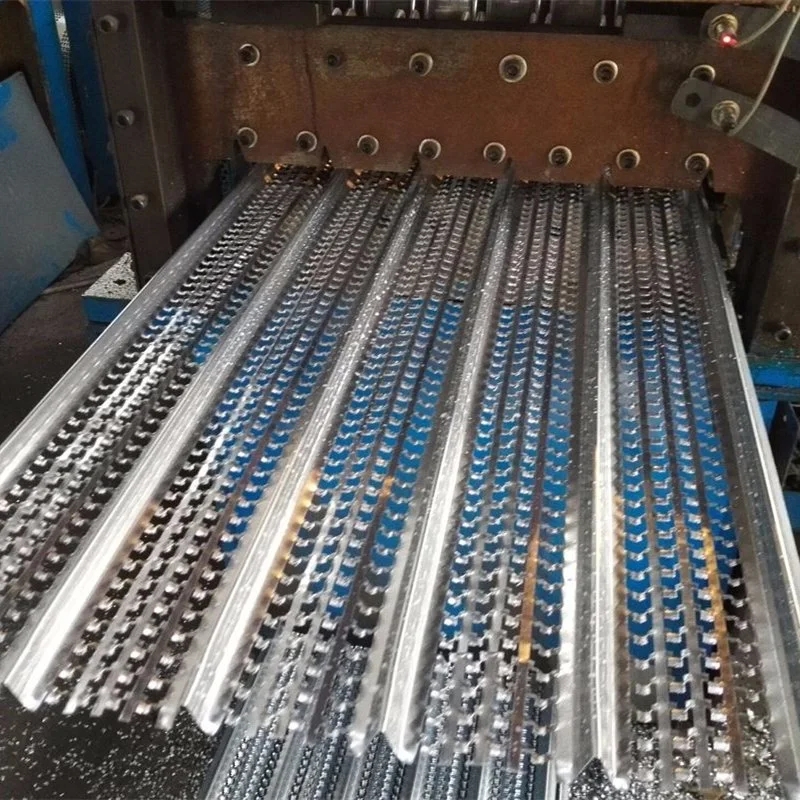

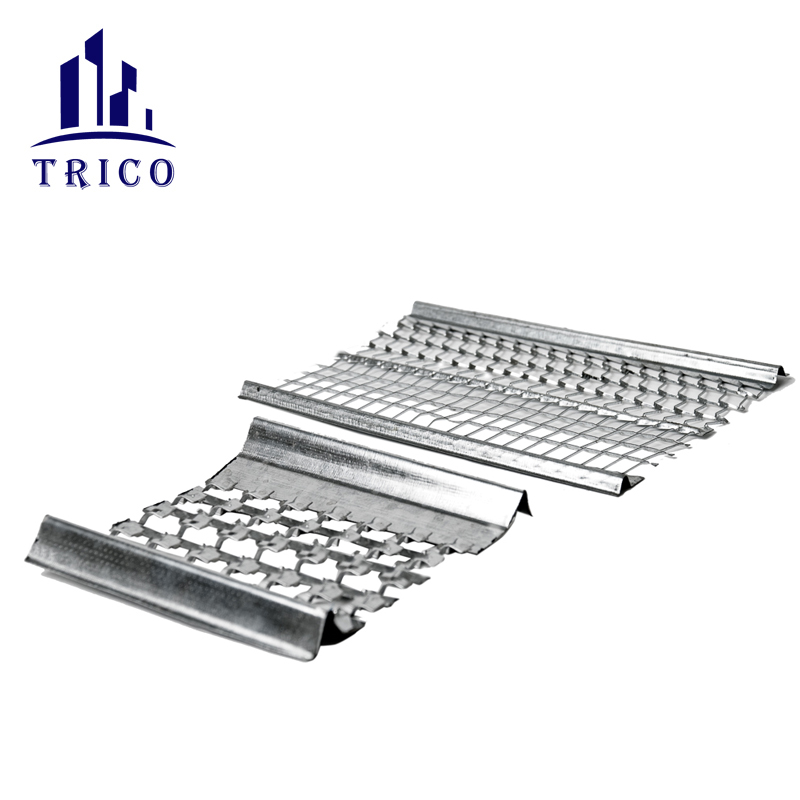

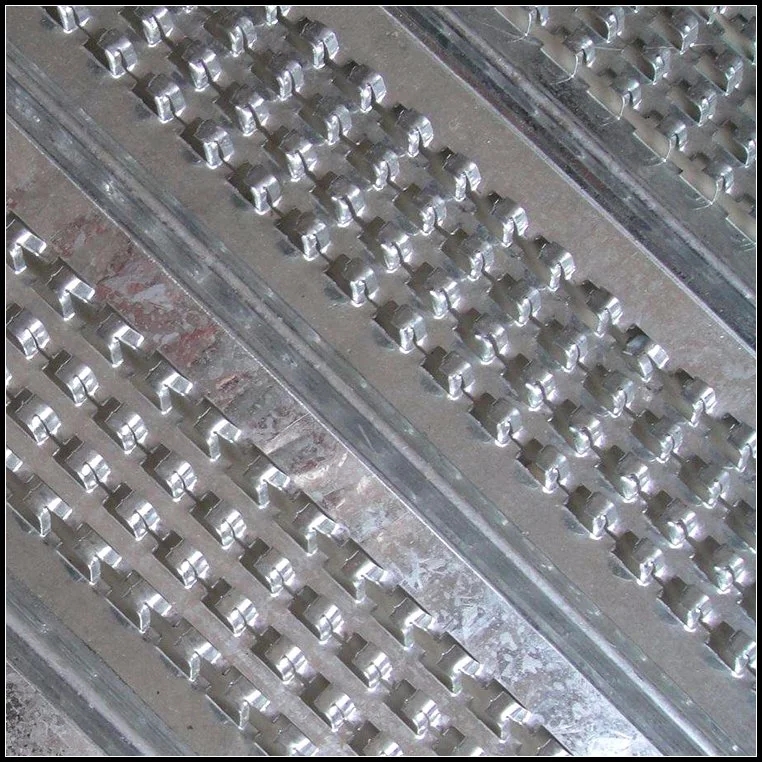

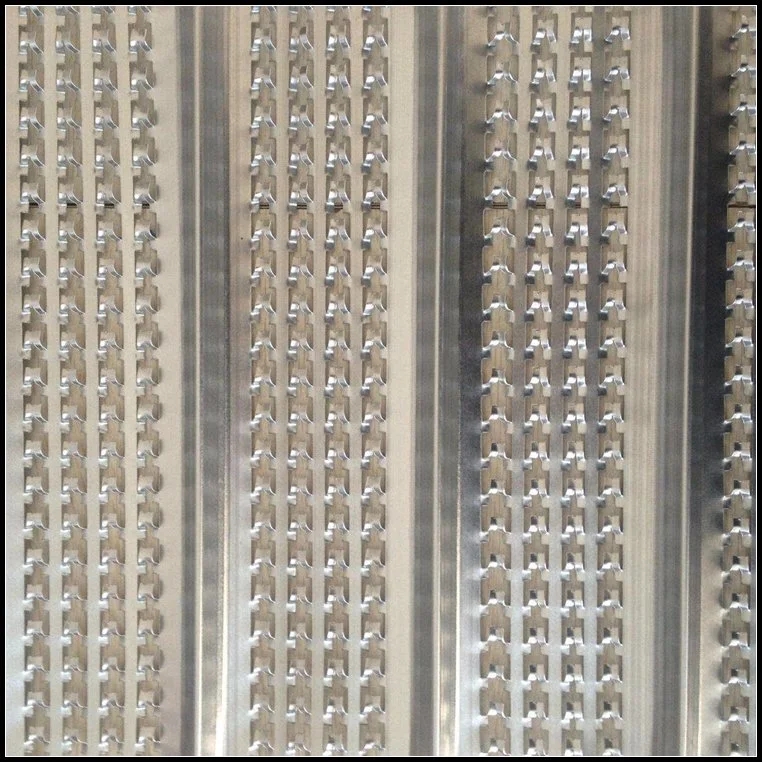

Building Material Expanded Metal High Rib Lath

Product Introduction:

High rib lath has excellent engineering quality and construction security. It is widely used in construction reinforcement of tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern as concrete permanent assembly-free formwork lath.


Product Details


Building Material Expanded Metal High Rib Lath

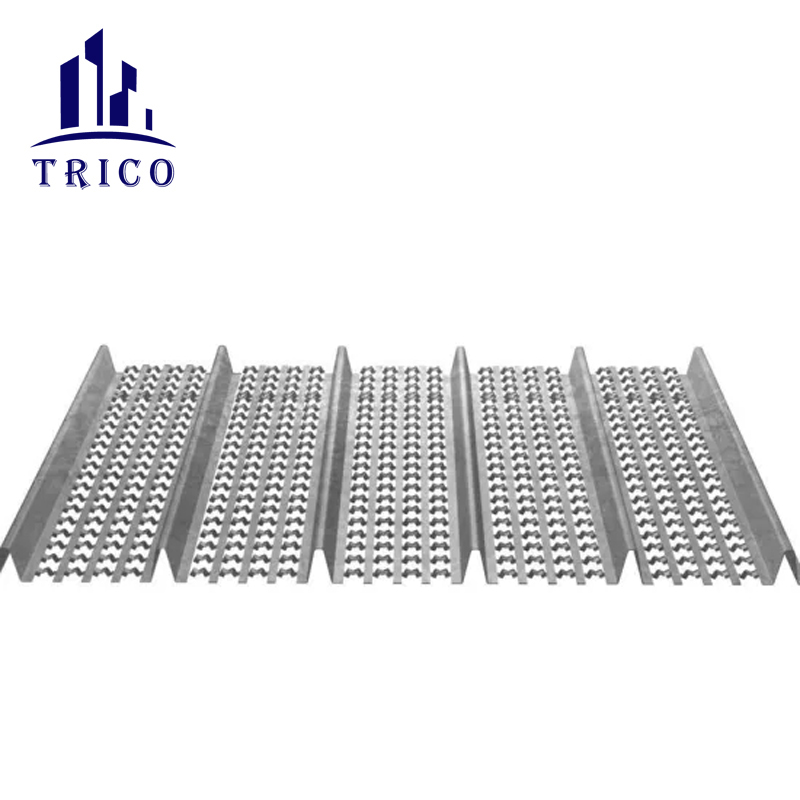

HY-RIBBED FORMWORK METAL SHEET



     Building Material Expanded Metal High Rib Lath

Size

2000x445x0.35mm



Weight

2.48kg

Tolerance

±0.3kg

Color

White Zinc Color



Finishing

Method: Hotdip Galvanized


Requirement: Coating weight:60g/m2 min.


Coating thickness:30um min.

Remarks

1.Thickness Tolerance: +0.05mm



2.Length Tolerance: ±10mm



3.Width Tolerance: ±5mm











Material

Description

Q195







Chemical


C

≤0.12


Si

≤0.3

Q195

Mn

≤0.5


P

≤0.035


S

≤0.04



Mechanical

Tensile Strength

315~430Mpa


Lower Yield Stress

≥195Mpa


Elogation

≥33%



Packing

packed in bundles of 20pcs

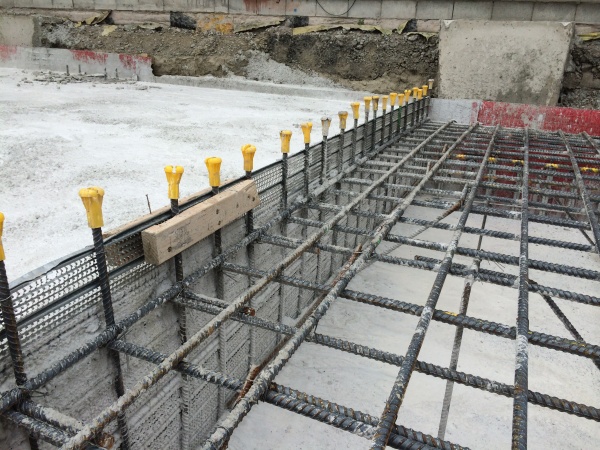

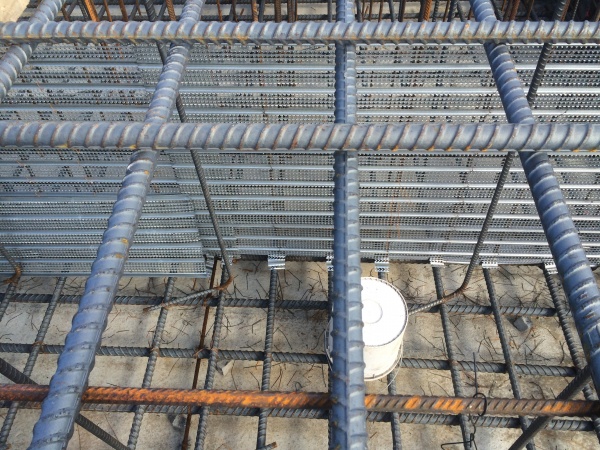

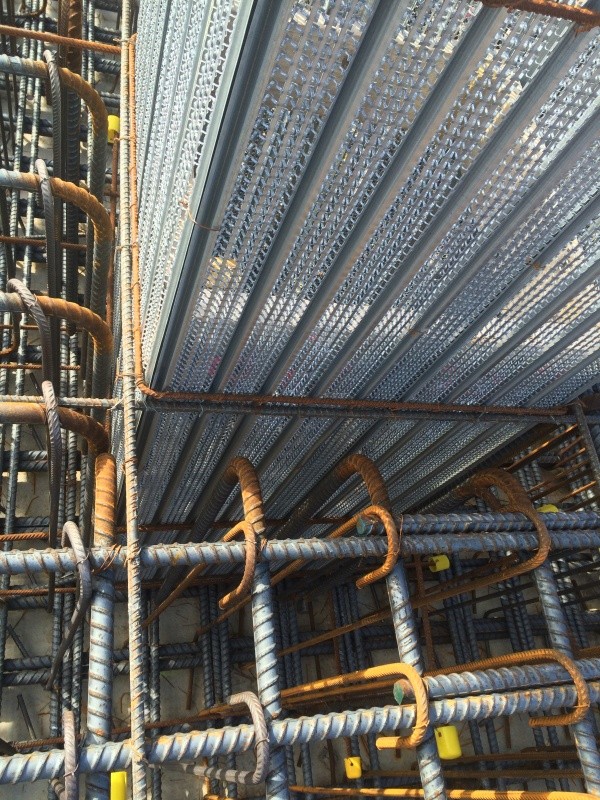

How to Use:

Building Material Expanded Metal High Rib Lath

Building Material Expanded Metal High Rib Lath

Building Material Expanded Metal High Rib Lath
