Concrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with Plate
  • Concrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with Plate
  • Concrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with Plate
  • Concrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with Plate
  • Concrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with Plate
  • Concrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with Plate
  • Concrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with Plate
Concrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with PlateConcrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with PlateConcrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with PlateConcrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with PlateConcrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with PlateConcrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with Plate

Concrete Formwork Tie Rod 180KN D17 D20 Swivel Combination Wing Nut with Plate

Product Introduction:

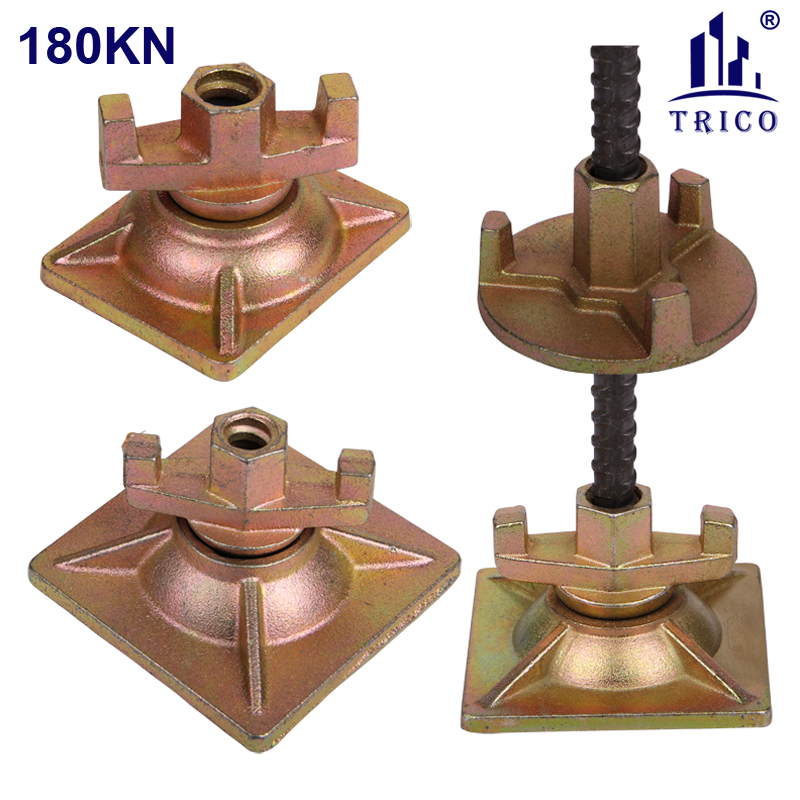

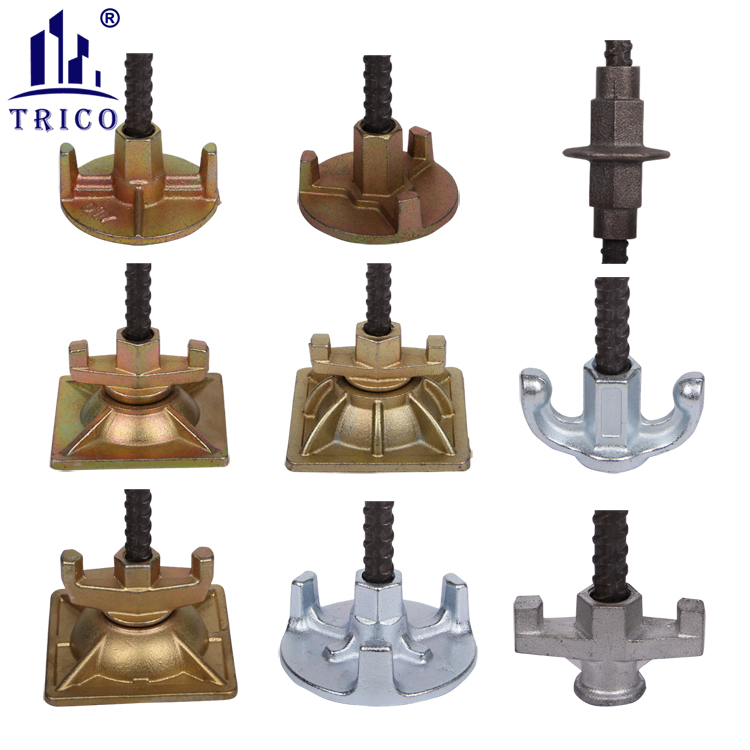

Formwork combination plate nut is a combination formwork accessory with wing nut and waler plate.

Both the casted and drop forged combi nuts are available.

High tensile strength can reach to 180Kn or 200Kn to suit the hot rolled tie rod.

Product Details

Concrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with Plate

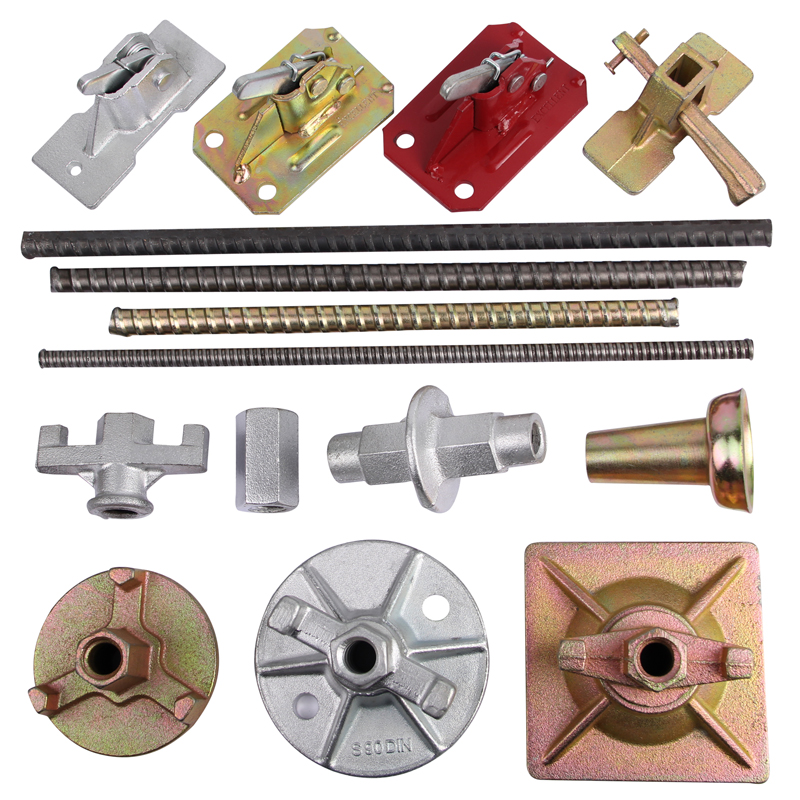

Concrete Formwork Tie Rod System is used with various formwork accessories in concrete construction. Tis system includes Tie Rod, Formwork Wing Nuts, Concrete Anchor Nuts, Hex Nuts, Connection Nuts, Washer Plates, Formwork Wedge Clamps, Formwork Spring Clamps, Water Stopper/Water Barrier Nut, Combi Plate Nut, Plastic Cones, Plastic Tubes, etc.

All of these items are popularly used for concrete formwork & shuttering systems, including wall formwork, column formwork, slab formwork, beam formwork, etc.

Concrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with Plate

Ductile Iron Casting Formwork Combi Plate Nut/Square Slope Nut
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialDuctile Iron CastingPackingBags or Pallets
DiameterD15mmUltimate LoadOver 180kn
FeatureRound Plate or Square PlateColorGold, Silver or Black
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
OEM Design is Acceptable
Ductile Iron Casting Formwork Tie Nut Details
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialDuctile Iron CastingPackingBags or Pallets
DiameterD12mm
D15mm
D20mm
Ultimate
Load
Over 180kn
Plate SizeD70mm
D80mm
D90mm
D100mm
D120mm
ColorGold, Silver or Black
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
OEM Design is Acceptable
Formwork Cold Rolled Tie Rod
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialQ235, 45# Steel, Special mixture Steel
DiameterD12mm/ D15mm/ D20mm
Weight0.75kg/meter (D12mm)
1.50kg/meter (D15mm)
2.32kg/meter (D20mm)
Ultimate Load70kn-260kn
Surface TreatmentGalvanized or as Nature
PackingBundles
Related ProductsTie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc.
Formwork Hot Rolled Tie Rod
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialSpecial mixture Steel
DiameterDW15mm
Weight1.42kg/meter
Ultimate Load180kn-190kn
Surface TreatmentGalvanized or as Nature
PackingBundles
Related ProductsTie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc.
Ductile Iron Casting Formwork Wing Nut
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialDuctile Iron CastingPackingBags or Pallets
DiameterD15mm
D20mm
Ultimate
Load
Over 180kn
FeatureOne Arm
Two Arms
ColorGold, Silver or Black
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
OEM Design is Acceptable
em NamePhotoMaterialDiameterWeightFinishingBreaking Load
Water StopFormwork Accessories 180KN Formwork Steel Tie Rod Wing Nut For Concrete ConstructionCast IronD12/Self color or galvanzing/
Cast IronD15

440g

450g

500g

Self color or galvanzing180KN
Cast IronD20

1.0kg

1.2kg

Self color or galvanzing320KN
 Formwork Tie Rod Washer Plate/Waler Plate
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialCarbon SteelPackingBags or Boxes
Size100x100mm
100x130mm
120x120mm
Thickness4.0-20.0mm
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.




Ductile Iron Casting Formwork Hex Nut
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialDuctile Iron CastingPackingBags or Pallets
DiameterD15mmUltimate LoadOver 180kn
FeatureOne Arm
Two Arms
ColorGold, Silver or Black
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.







Machining Weldable Formwork Hex Nut Connector
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterial45# SteelPackingBags or Pallets
DiameterD15mm
D20mm
ColorBlack,Silver or Gold
Surface TreatmentGalvanized or BlackApplicationConcrete Formwork
Related ProductsTie Rod, Tie Nut, Water Stop, Washer Plate
OEM Sizes are Available


Concrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with Plate

Concrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with Plate

Concrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with PlateConcrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with PlateConcrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with PlateConcrete Formwork Tie Rod 180KN D17 D20  Swivel Combination Wing Nut with Plate

Sample

Free sample for testing is available

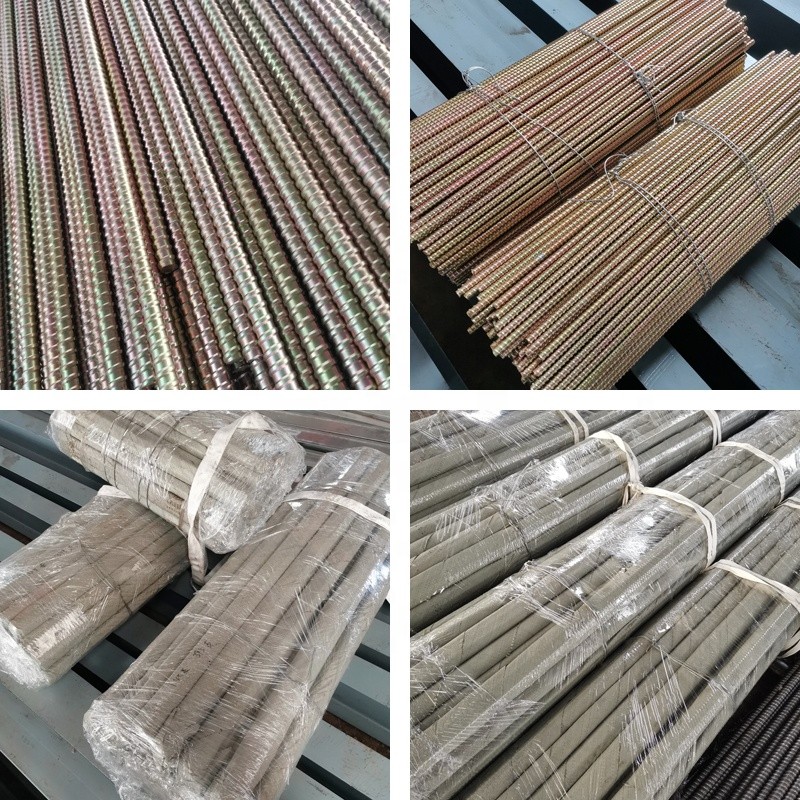

Packaging

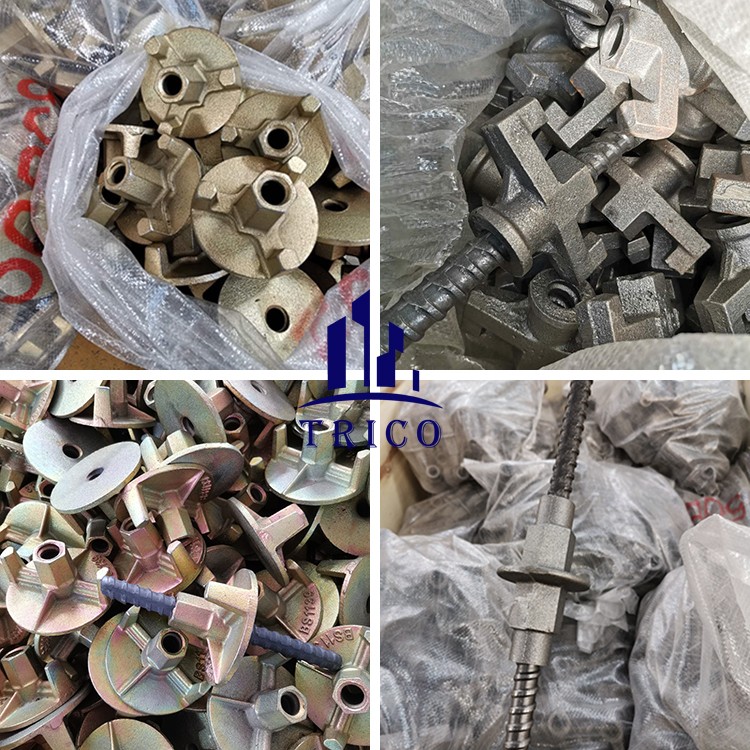

In woven bag, pallet or as demands

For more details, please contact our sales team.

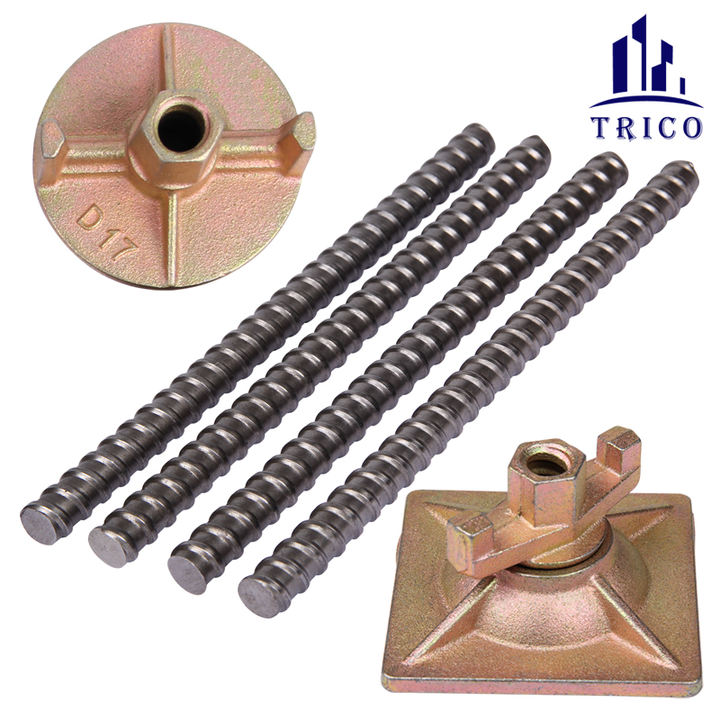

Formwork tie rod is one of the most important accessories in a poured wall project. We Hebei Trico supply different types of concrete tie rods, including the Hot Rolled discontinuous thread tie rod (with the breaking load of 180kn) and Cold Rolled continuous tie rods (with the breaking load of 140kn).

The concrete tie rods are used with various formwork accessories in concrete construction. Both the hot rolled and cold rolled the tie rods are able to work with formwork wing nutsconcrete anchor nutshex nuts, connection nuts, washer plates, formwork wedge clamps, formwork spring clamps, water stopper/water barrier nut, combi plate nut, plastic cones, plastic tubes, etc.

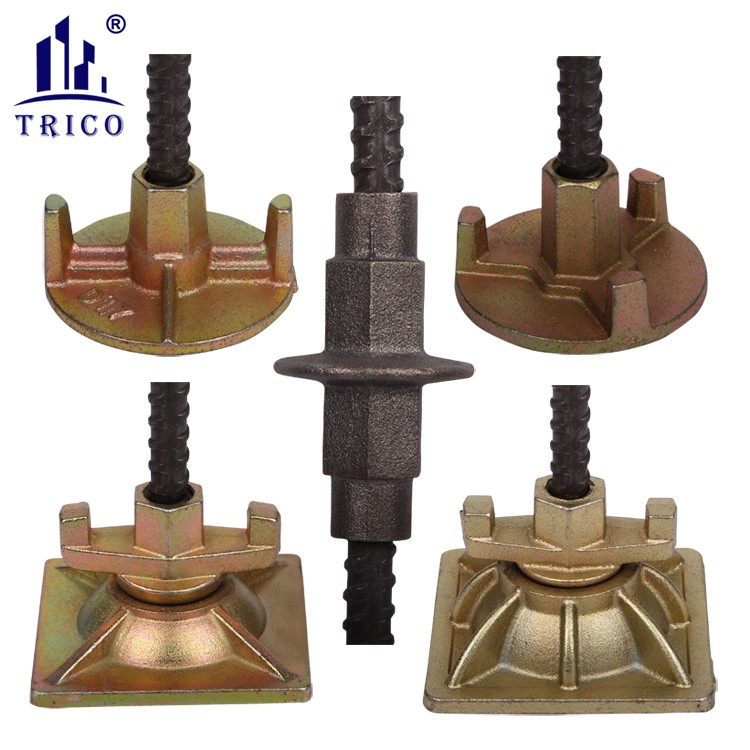

Tie Nut: There are single wing nut, butterfly wing nut, two anchor wing nut, three anchor wing nut,combination wing Nut. Because of this structure, wing nuts can be easily tightened and loosened by hand without any tools. Wing nuts have casting and forging types by processing technology , common thread size is 17mm/20mm.

Tie Rod: The Material of Tie Rod usually use Q235 carbon steel, 45# steel, surface finished as galvanized, zinc-plated and natural color. The working load from 80kn to 140kn. And we also offer Hot Rolled Tie Bar, which with the breaking load of 180kn.

Washer Plate: normally we offer 120x120x10mm, 120x120x8mm, 120x110x10mm, 100x100x10mm and other sizes can be made accordind to demand.

All of these items are popularly used for concrete formwork & shuttering systems, including wall formwork, column formwork, slab formwork, beam formwork, etc.

If you are on market for formwork tie rods and the related formwork accessories, welcome to contact us. OEM is available as your requirement.
