D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork
  • D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork
  • D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork
  • D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork
  • D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork
  • D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork
  • D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork
D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete FormworkD15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete FormworkD15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete FormworkD15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete FormworkD15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete FormworkD15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork

D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork

Product Introduction:

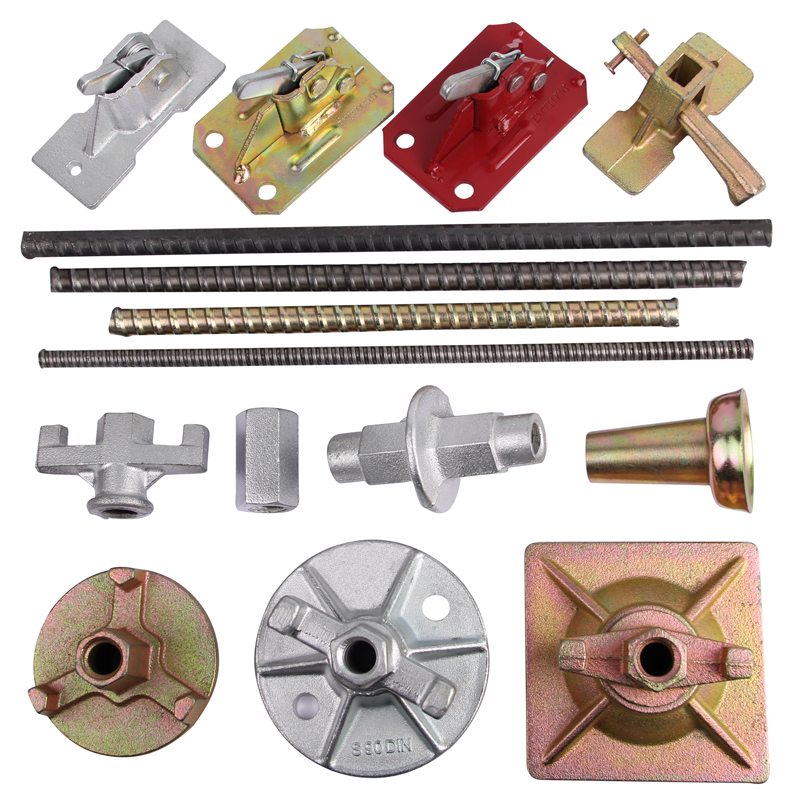

Various form tie rod system accessories available, such as steel tie rod, wing nut, water stopper, tie nut, washer plate, waller plate, hex nut, connection nut, etc.

All of these formwork accessories are popularly used for concrete formwork & shuttering systems, including wall formwork, column formwork, slab formwork, beam formwork, bridge formwork, etc.

Product Details

D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork

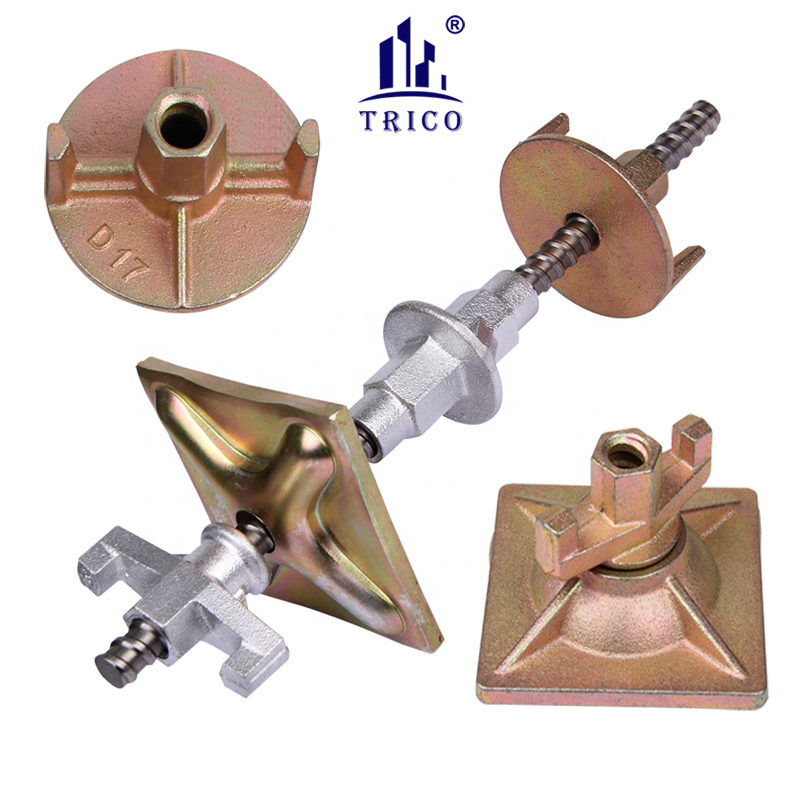

Concrete Formwork Tie Rod System is used with various formwork accessories in concrete construction. Tis system includes Tie Rod, Formwork Wing Nuts, Concrete Anchor Nuts, Hex Nuts, Connection Nuts, Washer Plates, Formwork Wedge Clamps, Formwork Spring Clamps, Water Stopper/Water Barrier Nut, Combi Plate Nut, Plastic Cones, Plastic Tubes, etc.

All of these items are popularly used for concrete formwork & shuttering systems, including wall formwork, column formwork, slab formwork, beam formwork, etc.

D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork

Ductile Iron Casting Formwork Tie Nut Details
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialDuctile Iron CastingPackingBags or Pallets
DiameterD12mm
D15mm
D20mm
Ultimate
Load
Over 180kn
Plate SizeD70mm
D80mm
D90mm
D100mm
D120mm
ColorGold, Silver or Black
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
OEM Design is Acceptable

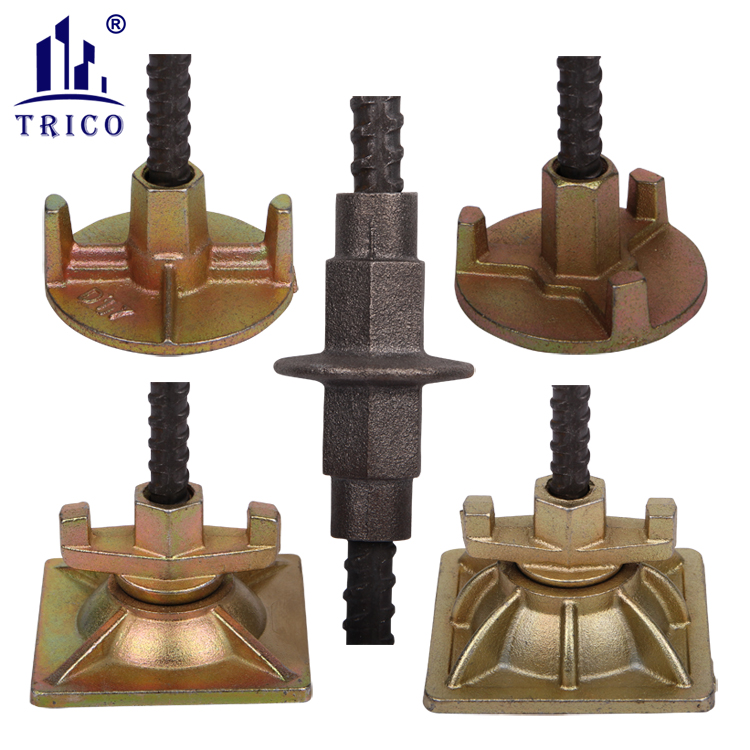

Ductile Iron Casting Formwork Combi Plate Nut/Square Slope Nut
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialDuctile Iron CastingPackingBags or Pallets
DiameterD15mmUltimate LoadOver 180kn
FeatureRound Plate or Square PlateColorGold, Silver or Black
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
OEM Design is Acceptable


Item NamePhotoMaterialDiameterWeightFinishingBreaking Load
Water StopFormwork Accessories 180KN Formwork Steel Tie Rod Wing Nut For Concrete ConstructionCast IronD12/Self color or galvanzing/
Cast IronD15

440g

450g

500g

Self color or galvanzing180KN
Cast IronD20

1.0kg

1.2kg

Self color or galvanzing320KN

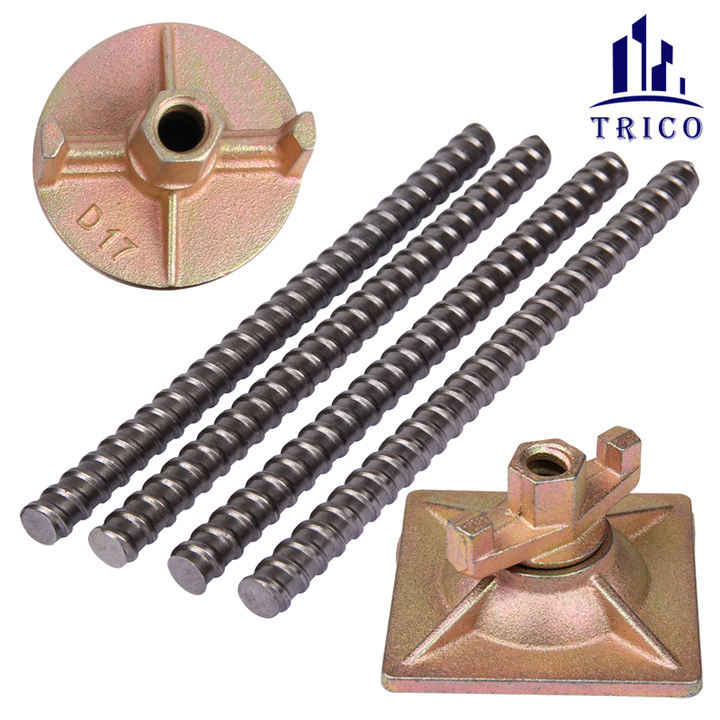

Formwork Cold Rolled Tie Rod
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialQ235, 45# Steel, Special mixture Steel
DiameterD12mm/ D15mm/ D20mm
Weight0.75kg/meter (D12mm)
1.50kg/meter (D15mm)
2.32kg/meter (D20mm)
Ultimate Load70kn-260kn
Surface TreatmentGalvanized or as Nature

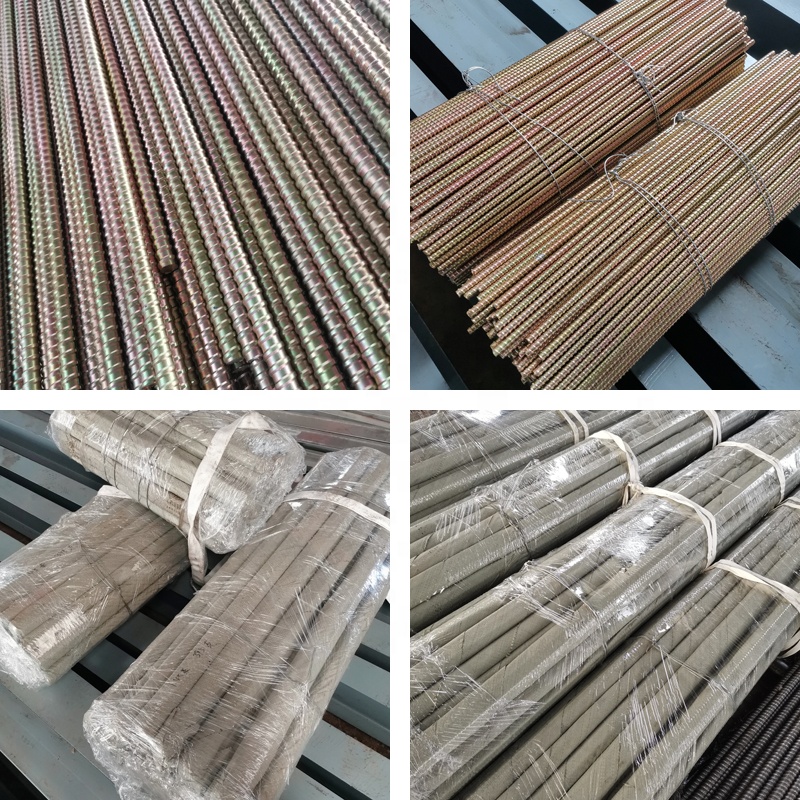

PackingBundles
Related ProductsTie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc.
Formwork Hot Rolled Tie Rod
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialSpecial mixture Steel
DiameterDW15mm
Weight1.42kg/meter
Ultimate Load180kn-190kn
Surface TreatmentGalvanized or as Nature
PackingBundles
Related ProductsTie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc.

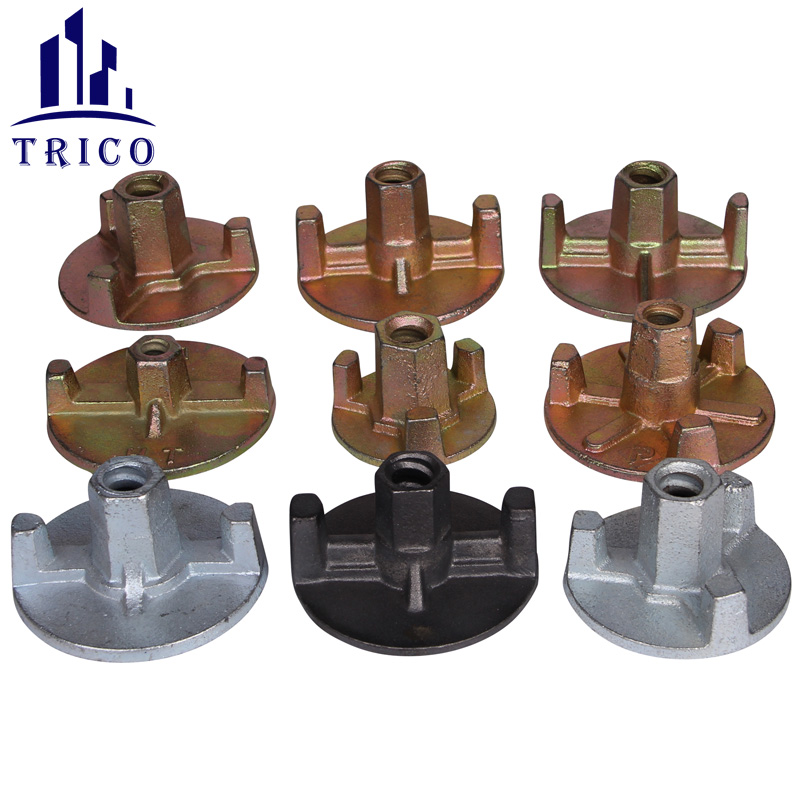

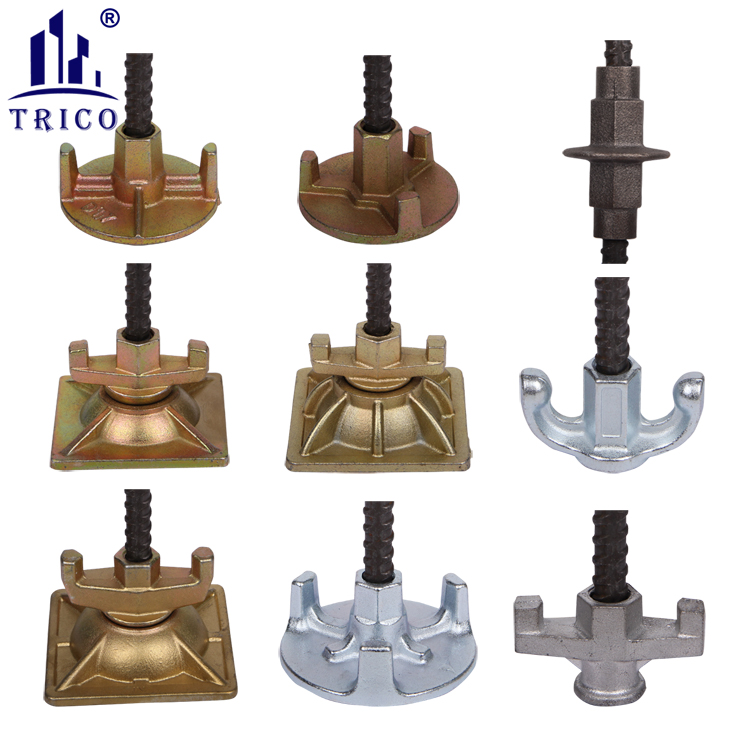

Ductile Iron Casting Formwork Wing Nut
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialDuctile Iron CastingPackingBags or Pallets
DiameterD15mm
D20mm
Ultimate
Load
Over 180kn
FeatureOne Arm
Two Arms
ColorGold, Silver or Black
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
OEM Design is Acceptable
 Formwork Tie Rod Washer Plate/Waler Plate
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialCarbon SteelPackingBags or Boxes
Size100x100mm
100x130mm
120x120mm
Thickness4.0-20.0mm
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.

OEM Design is Acceptable

Ductile Iron Casting Formwork Hex Nut
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialDuctile Iron CastingPackingBags or Pallets
DiameterD15mmUltimate LoadOver 180kn
FeatureOne Arm
Two Arms
ColorGold, Silver or Black
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
OEM Design is Acceptable
Machining Weldable Formwork Hex Nut Connector
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterial45# SteelPackingBags or Pallets
DiameterD15mm
D20mm
ColorBlack,Silver or Gold
Surface TreatmentGalvanized or BlackApplicationConcrete Formwork
Related ProductsTie Rod, Tie Nut, Water Stop, Washer Plate
OEM Sizes are Available

Sample:

Free sample is available

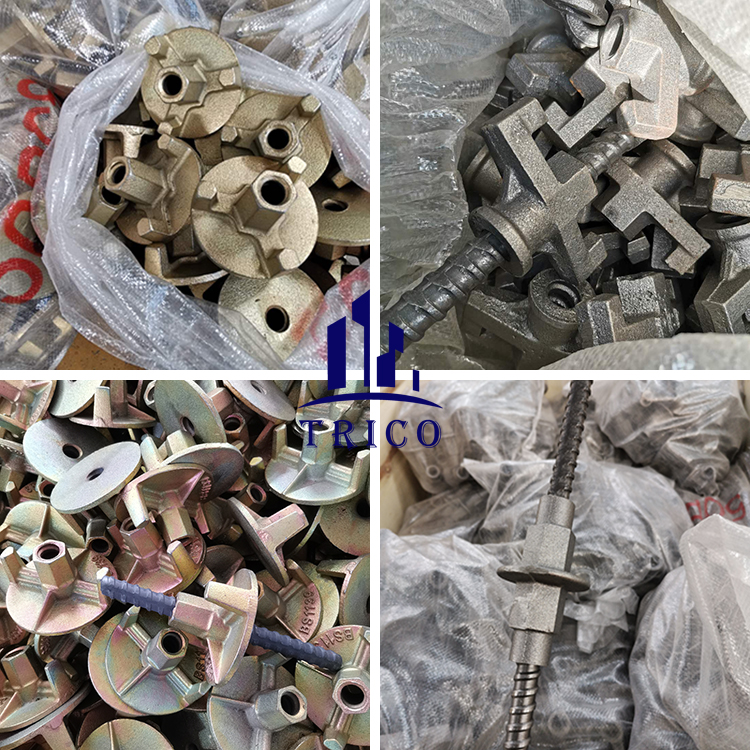

Packaging:

In bags or on pallet or as your demands.

D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork

D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork

D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork

D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork

D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork

D15 D20 Concrete Wall Formwork Tie Rod System 15/17mm Tie Rod Wing Nut for Concrete Formwork

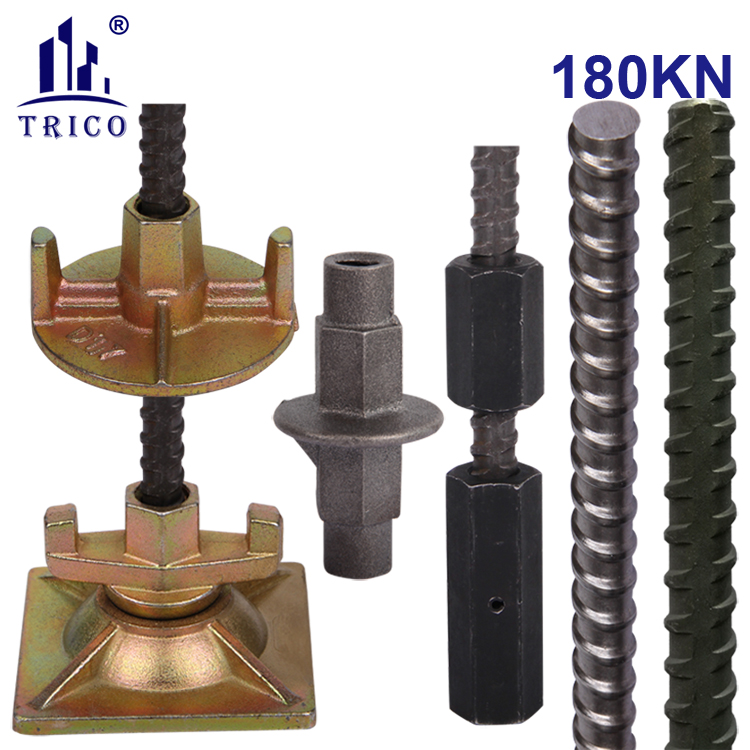

Formwork tie rod is one of the most important accessories in a poured wall project. We Hebei Trico supply different types of concrete tie rods, including the Hot Rolled discontinuous thread tie rod (with the breaking load of 180kn) and Cold Rolled continuous tie rods (with the breaking load of 140kn).

The concrete tie rods are used with various formwork accessories in concrete construction. Both the hot rolled and cold rolled the tie rods are able to work with formwork wing nutsconcrete anchor nutshex nuts, connection nuts, washer plates, formwork wedge clamps, formwork spring clamps, water stopper/water barrier nut, combi plate nut, plastic cones, plastic tubes, etc.

All of these items are popularly used for concrete formwork & shuttering systems, including wall formwork, column formwork, slab formwork, beam formwork, etc.

If you are on market for formwork tie rods and the related formwork accessories, welcome to contact us. OEM is available as your requirement.
