Understanding the Importance of a Formwork Tie Rod System
A Formwork Tie Rod System is one of the most important components in modern concrete construction. It is widely used in aluminum formwork, steel formwork, wall formwork, and slab formwork systems to stabilize panels during concrete pouring. The system ensures accurate wall thickness, prevents deformation, and improves construction safety and efficiency.
As construction projects become more complex, contractors and developers increasingly demand customized Formwork Tie Rod System solutions that match specific project requirements. Customized systems improve installation speed, reduce labor costs, and enhance the durability of formwork structures.
According to leading formwork manufacturers, reusable tie rod systems also help reduce material waste and improve overall project sustainability.
Common Components of a Formwork Tie Rod System
A complete Formwork Tie Rod System usually includes the following components:
● Tie rods
● Wing nuts
● Water stoppers
● PVC sleeves
● Washers
● Anchor plates
● Wedges and pins
● Couplers
Different construction environments require different combinations of these accessories. Many manufacturers provide project-specific customization to ensure compatibility with various formwork systems.
Customization Options for Formwork Tie Rod System

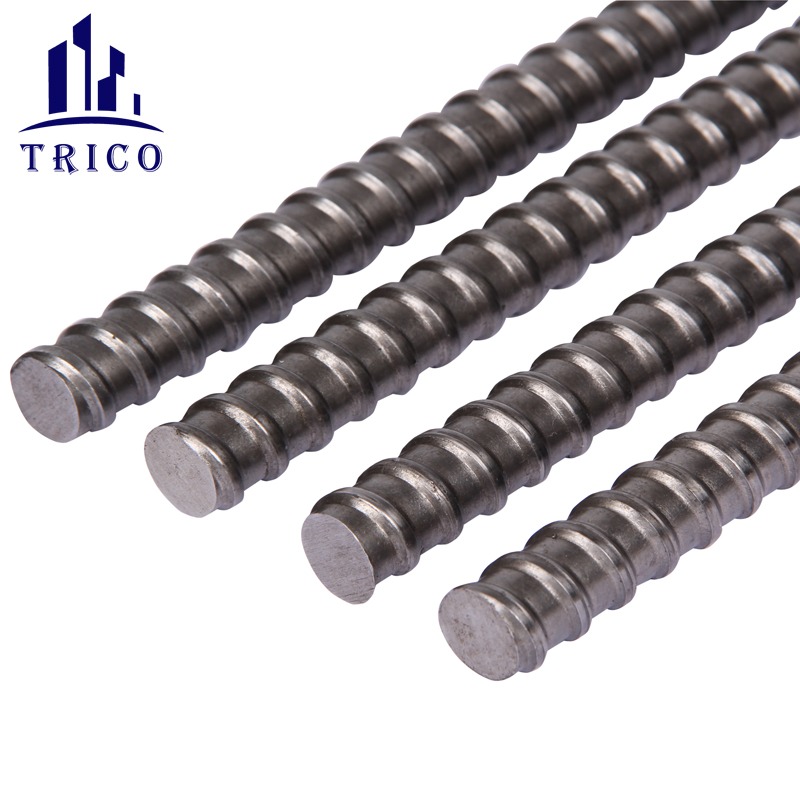

Customized Tie Rod Diameter
One of the most common customization options is tie rod diameter. Different concrete pressure levels require different rod strengths.
Typical options include:
● 12mm tie rods
● 15mm tie rods
● 17mm tie rods
● 20mm heavy-duty tie rods
For high-rise buildings, bridges, and tunnel projects, larger diameters are often preferred because they provide higher tensile strength and better load-bearing performance.
Adjustable Tie Rod Length
Construction projects often involve different wall thicknesses and structural dimensions. Manufacturers can customize tie rod lengths according to project specifications.
Benefits of customized lengths include:
● Reduced material waste
● Faster installation
● Improved structural accuracy
● Better compatibility with formwork panels
Continuous-thread tie rods can also be cut and adjusted directly on-site, making them highly flexible for construction applications.
Thread Type Customization
The thread design directly affects the connection performance of the Formwork Tie Rod System.
Common thread types include:
● D Thread
● Round Thread
● Ball Thread
● ACME Thread
Ball thread systems are popular in heavy-duty projects because they offer stronger grip performance and easier assembly. D thread systems are commonly used in standard wall formwork construction.
Material Selection Options
Different projects require different material properties. Manufacturers usually offer multiple material options for customized Formwork Tie Rod System production.
Available materials may include:
● Carbon steel
● High-strength alloy steel
● Galvanized steel
● Stainless steel
Galvanized and stainless-steel tie rods are ideal for humid environments, coastal construction, and infrastructure projects because they provide excellent corrosion resistance.
Surface Treatment Customization
Surface treatment improves durability and extends service life.
Popular surface treatments include:
● Hot-dip galvanizing
● Electro-galvanizing
● Black oxide coating
● Powder coating
● Anti-rust oil treatment
These treatments protect the Formwork Tie Rod System from corrosion, moisture, and harsh construction environments.
Water Stopper Customization
Water stopper systems are essential in waterproof concrete structures such as basements, tunnels, and water treatment facilities.
Customized water stopper options include:
● Welded water stoppers
● Removable water barriers
● Triple water stop systems
● PVC-integrated water stoppers
Proper water stopper design helps prevent leakage and improves long-term structural durability.
Customized Wing Nuts and Anchor Plates
Wing nuts and anchor plates can also be customized based on construction load requirements.
Options may include:
● Cast wing nuts
● Forged wing nuts
● Hex nuts
● Heavy-duty anchor plates
● Universal washers
Larger bearing plates distribute pressure more evenly across formwork panels, reducing the risk of panel deformation during concrete pouring.
Advantages of Customized Formwork Tie Rod System Solutions
Customized systems provide significant advantages for contractors and developers.
Improved Construction Efficiency
Customized dimensions and accessories reduce installation time and simplify assembly procedures. Many modern systems are designed for quick installation and removal.
Enhanced Structural Stability
Properly customized tie rod systems improve alignment accuracy and reduce formwork movement during pouring operations.
This is especially important in:
● High-rise buildings
● Bridge construction
● Tunnel engineering
● Industrial facilities
Lower Long-Term Costs
Reusable tie rod systems help contractors reduce material consumption and minimize replacement costs. According to industry suppliers, reusable tie rod accessories can significantly reduce operational expenses over multiple project cycles.
Better Compatibility with Modern Formwork Systems
Customized Formwork Tie Rod System products can be integrated with:
● Aluminum formwork systems
● Steel frame formwork
● Modular formwork
● Climbing formwork
● Tunnel formwork systems
This flexibility allows contractors to standardize equipment across multiple projects.
Industries That Use Customized Formwork Tie Rod Systems
Customized Formwork Tie Rod System products are widely used in various construction sectors.
Residential Construction：High-rise apartment buildings and housing projects require fast and reliable formwork reinforcement systems.
Infrastructure Projects：Bridge piers, tunnels, dams, and metro systems often require heavy-duty customized tie rod solutions with high tensile strength.
Commercial Buildings：Commercial complexes and office towers benefit from reusable tie rod systems that improve construction speed and reduce labor intensity.
Industrial Construction：Factories, warehouses, and energy facilities often require customized corrosion-resistant formwork accessories for long-term durability.
Future Trends in Formwork Tie Rod System Development
The global construction industry is moving toward safer, faster, and more sustainable building methods. As a result, Formwork Tie Rod System manufacturers are developing more advanced products with:
● Higher load capacity
● Lightweight designs
● Faster locking mechanisms
● Improved corrosion resistance
● Smart modular compatibility
● Sustainable reusable materials
Innovative formwork technologies are expected to continue driving demand for customized tie rod systems in large-scale construction projects worldwide.
Conclusion
A customized Formwork Tie Rod System plays a critical role in ensuring construction safety, efficiency, and structural precision. From customized rod diameters and thread types to advanced corrosion-resistant coatings and reusable accessories, modern tie rod systems can be tailored to meet the needs of virtually any construction project.
As the demand for high-performance formwork systems continues to grow, choosing a reliable supplier with strong customization capabilities becomes increasingly important. By investing in the right Formwork Tie Rod System solution, contractors can improve project quality, reduce operational costs, and achieve faster construction cycles.
