45#steel Frame PJ63 Euro Form Formwork System for Concrete Construction
  • 45#steel Frame PJ63 Euro Form Formwork System for Concrete Construction
  • 45#steel Frame PJ63 Euro Form Formwork System for Concrete Construction
  • 45#steel Frame PJ63 Euro Form Formwork System for Concrete Construction
  • 45#steel Frame PJ63 Euro Form Formwork System for Concrete Construction
  • 45#steel Frame PJ63 Euro Form Formwork System for Concrete Construction
  • 45#steel Frame PJ63 Euro Form Formwork System for Concrete Construction
45#steel Frame PJ63 Euro Form Formwork System for Concrete Construction45#steel Frame PJ63 Euro Form Formwork System for Concrete Construction45#steel Frame PJ63 Euro Form Formwork System for Concrete Construction45#steel Frame PJ63 Euro Form Formwork System for Concrete Construction45#steel Frame PJ63 Euro Form Formwork System for Concrete Construction45#steel Frame PJ63 Euro Form Formwork System for Concrete Construction

45#steel Frame PJ63 Euro Form Formwork System for Concrete Construction

Product Introduction:

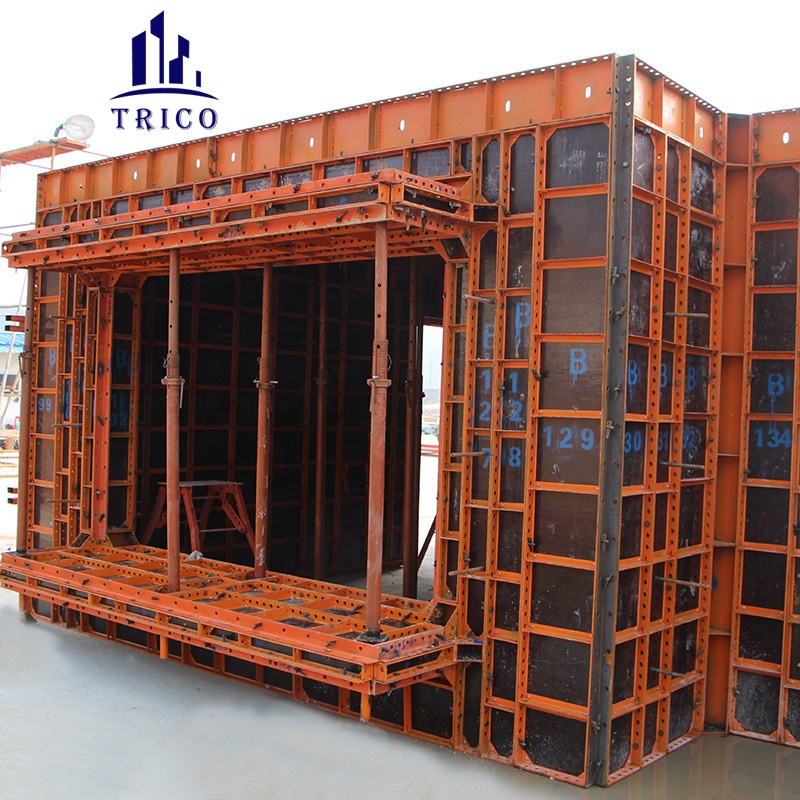

HEBEI TRICO is euro form formwork manufacturer in China. The full name of 63 steel frame formwork system is 63 steel frame plywood build-up formwork system, its stiffness is high and the surface is smooth, could be braced and dismantle wholly or separately. 63 steel frame formwork system is made up by steel frame, reinforcing rib and waterproof plywood. Frame is the f steel with retainer rib of surface, there are holes at the edges. The reinforcing rib uses the angle iron, the material of steel frame and reinforcing rib is 45# steel. The corner oblique iron and reinforcing place joint with the surface panel by plow bolts. Surface panel uses the 12mm thickness waterproof plywood. Lateral pressure coefficient is 50kn/m2.

Product Details



Euro Form for Concrete Construction

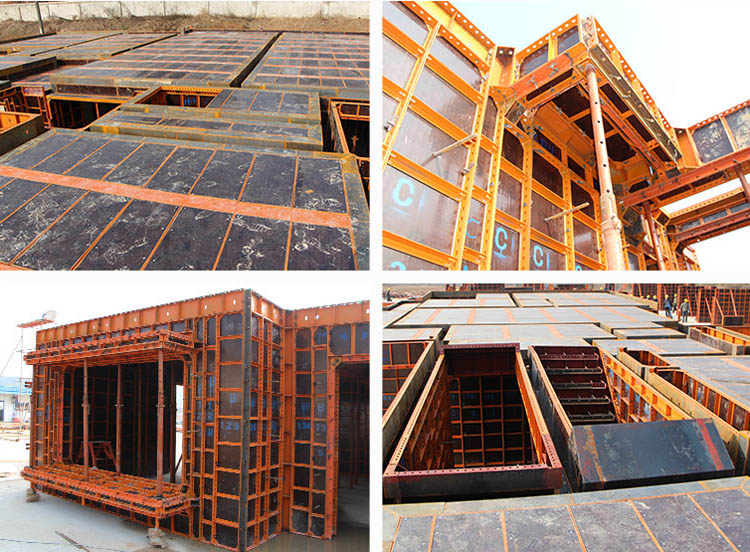

Euro formwork is very popular for wall concrete construction. Conveniently located handles make set up, stripping, and handling easier. With proper care, contractors can expect that forms will be able to be reused up to 200 times before plywood needs to be replaced.

Compatible with all other industry standard modular handset systems. All sizes of heavy-duty loop ties, x-flat ties, wedge bolts, and accessories to offer the complete system.

EuroForm Formwork
ItemMaterialSpecificationSurface Treatment

F Profile

Punching Concrete Frame Formwork Accessores F Steel Profile for Steel Ply Forming System

Steel #45F100Self Color
F200
F250
F300
F350
F400
F500
F600
F1200
F1500
F1800

Euro Form

(Korean Type or American Type)

Punching Concrete Frame Formwork Accessores F Steel Profile for Steel Ply Forming System

Steel #45600*1200mm & 1800mmPainted
550*1200mm & 1800mm
500*1200mm & 1800mm
450*1200mm & 1800mm
400*1200mm & 1800mm
350*1200mm & 1800mm
300*1200mm & 1800mm
250*1200mm & 1800mm
200*1200mm & 1800mm
600*900mm & 1500mm
550*900mm & 1500mm
500*900mm & 1500mm
450*900mm & 1500mm
400*900mm & 1500mm
350*900mm & 1500mm
300*900mm & 1500mm
250*900mm & 1500mm
200*900mm & 1500mm

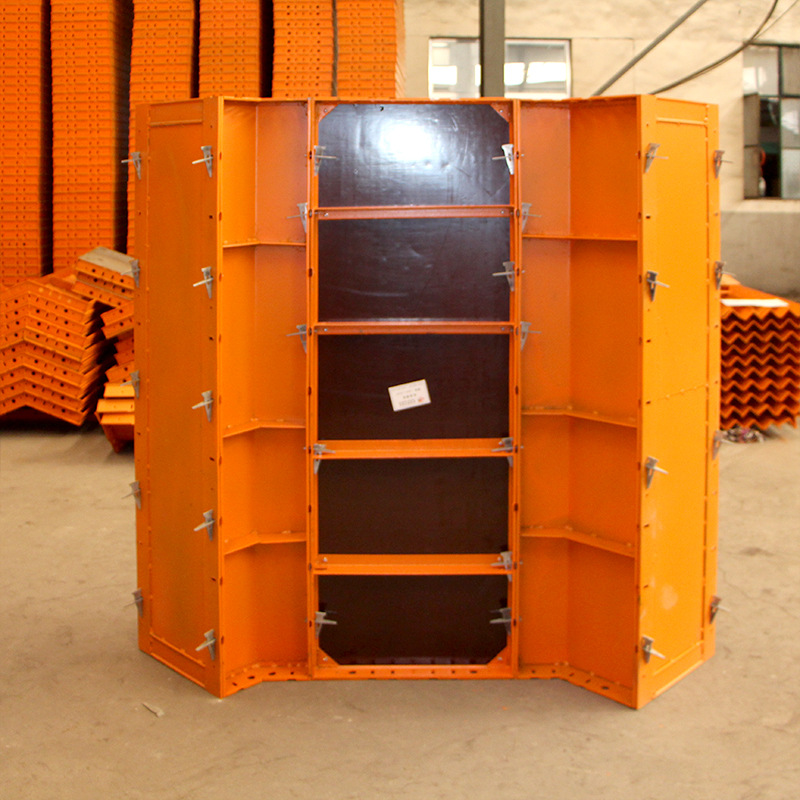

Inside Corner

Steel Formwork System Euro Form F Steel Profile

Steel #45100*100*900mmPainted
100*100*1200mm
100*100*1500mm
100*150*1200mm
100*150*1500mm
100*200*900mm
100*200*1200mm
100*200*1500mm
150*150*900mm
150*150*1200mm
150*200*900mm
150*200*1200mm
150*200*1500mm
200*200*900mm
200*200*1200mm
200*200*1500mm

Outside Corner

Steel Formwork System Euro Form F Steel Profile


Steel #4563*63*900mmPainted
63*63*1200mm
63*63*1500mm
63*63*1800mm
63*63*2400mm
63*63*3000mm

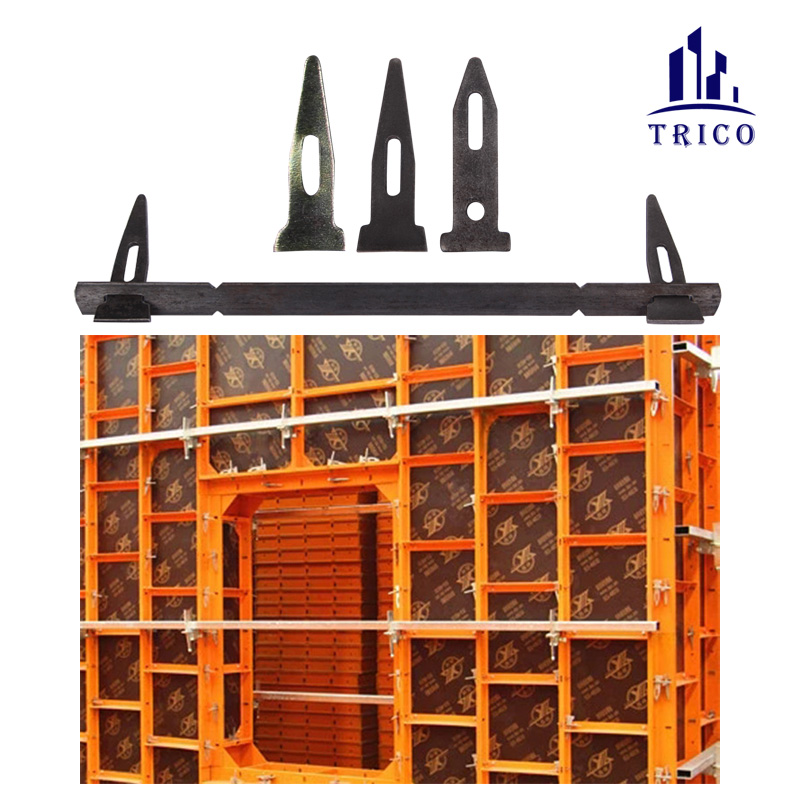

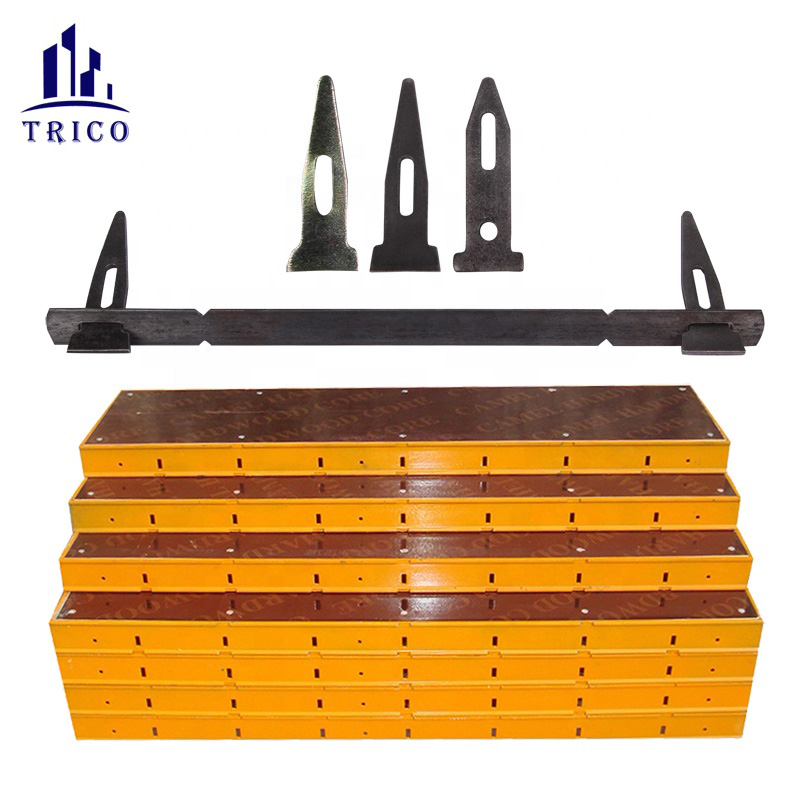

 Euroform Concrete Formwork Accessories
CommodityTypeSpecificationPackingMain Market
   Euro FormFlat Tie

Length:100L-1200L

Thickness:1.6mm-2.5mm



Other Sizes Available

Bundle+Pallet Korea/Middle Asia

Punching Concrete Frame Formwork Accessores F Steel Profile for Steel Ply Forming System

Wedge Pin

Length 76mm/79mm

Other Sizes Available

Small Bag+Ton Bag Korea/Middle Asia
Punching Concrete Frame Formwork Accessores F Steel Profile for Steel Ply Forming SystemHooks

Round Type

Square Type

Small Bag+Ton BagWidely Using
Punching Concrete Frame Formwork Accessores F Steel Profile for Steel Ply Forming SystemX Flat Tie

Standard Flat Tie 4"-48"

Ultimate 6000lbs



Heavy Duty Flat Tie 4"-48"

Ultimate 7000lbs



Other Sizes Available

Bundle+Pallet America/Europe
 Punching Concrete Frame Formwork Accessores F Steel Profile for Steel Ply Forming SystemWedge Bolt

Short Wedge Bolt

Standard Wedge Bolt

Long Wedge Bolt

Adjustable Wedge Bolt


 Pail+PalletAmerica/Europe
Related Products Aluminum Formwork System, Plywood Snap Tie System


EuroForm Formwork

euro formwork

Concrete Formwork

Euro Form is a formwork system developed to exhibit diversity with a simple structure, which saves material expenses by increasing the number of times repeated uses and greatly reduces personnel expenses and other costs, shortening the term of construction by simplifying and accelerating the work.

Euro Form Advantages

1. Most common building material in construction sites for an experienced technician.
2. Easy to get supply.
3. Easy to build sheathing board by a combination of Euro-form to meet structure type.
4. No need to have special tools.
5. Excellent durability of the frame.

We have Korea Type and Symons forms Types for choice. Welcome to contact us!
