D15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod System
  • D15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod System
  • D15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod System
  • D15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod System
  • D15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod System
  • D15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod System
  • D15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod System
D15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod SystemD15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod SystemD15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod SystemD15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod SystemD15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod SystemD15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod System

D15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod System

Product Introduction:

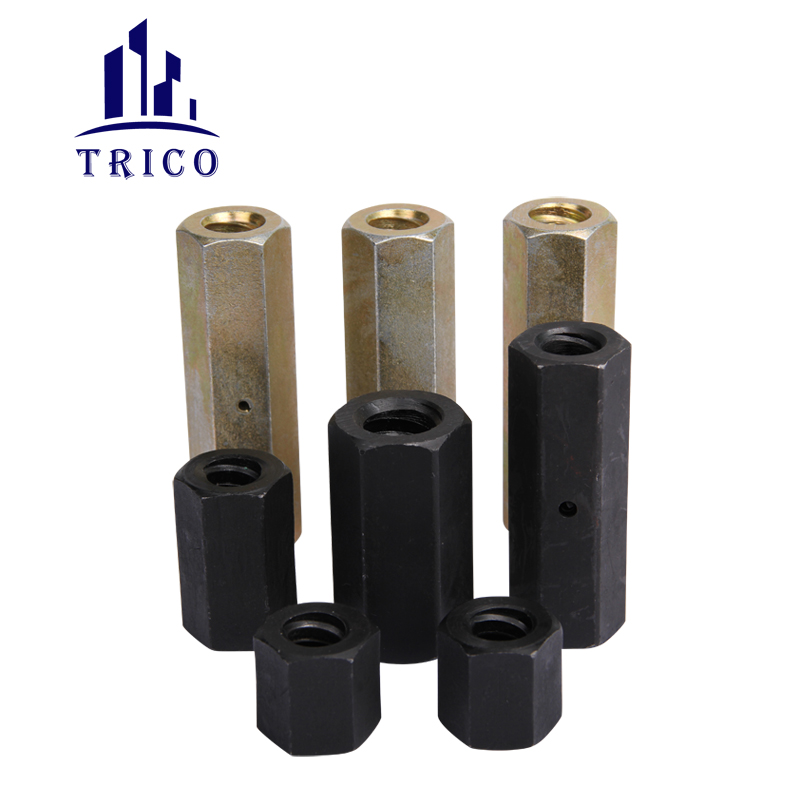

Hex nut and connection nut are used for the construction shuttering system.

Hex nut is used as an alternative for wing nut when the access is too narrow.

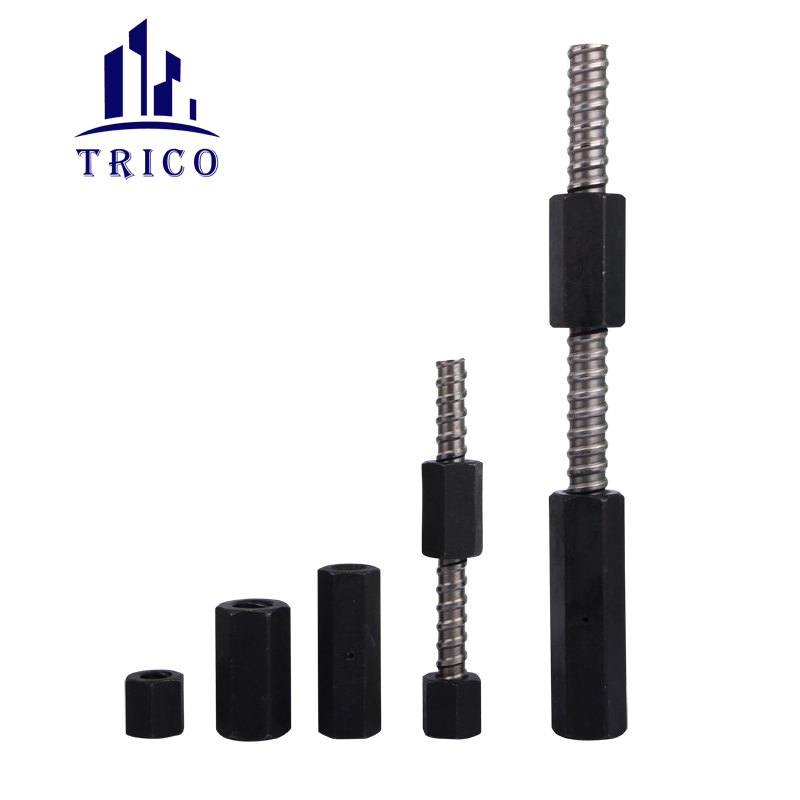

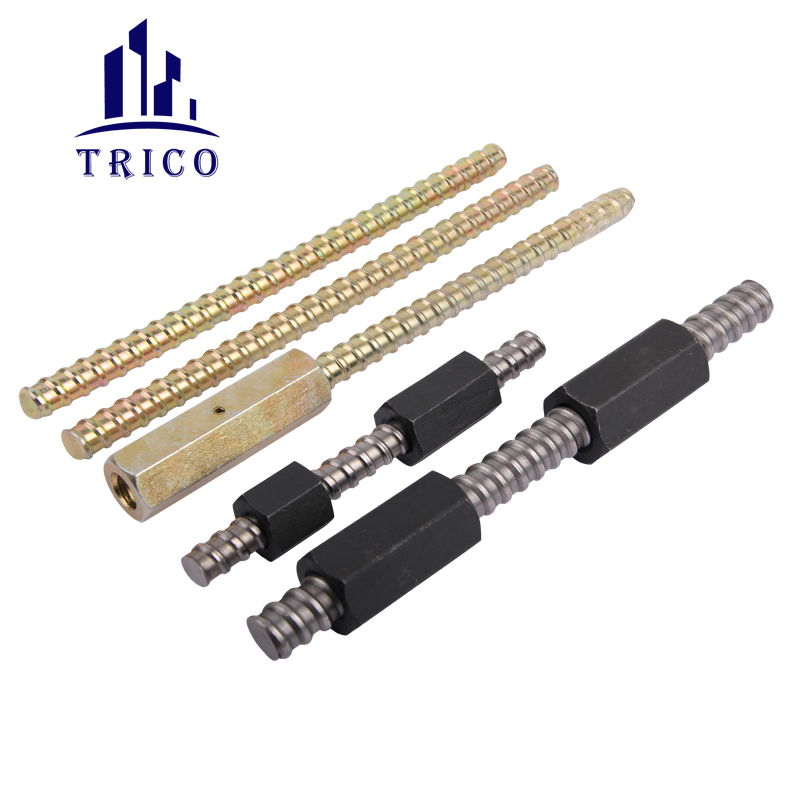

Connection nut is used to connect two steel tie rods.

Steel made hex nuts and connection nuts are weldable.

Product Details

D15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod System

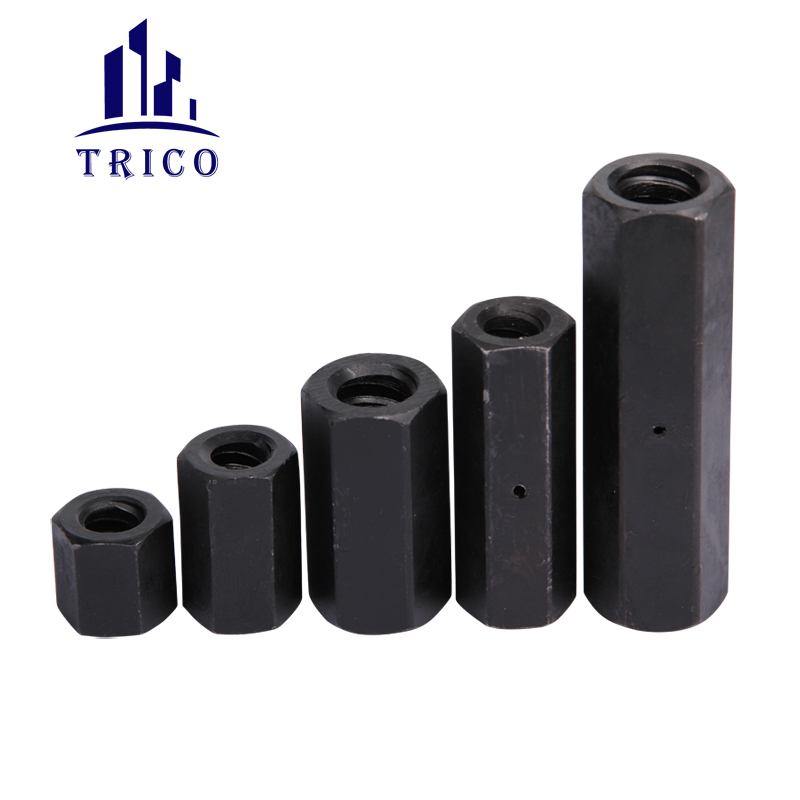

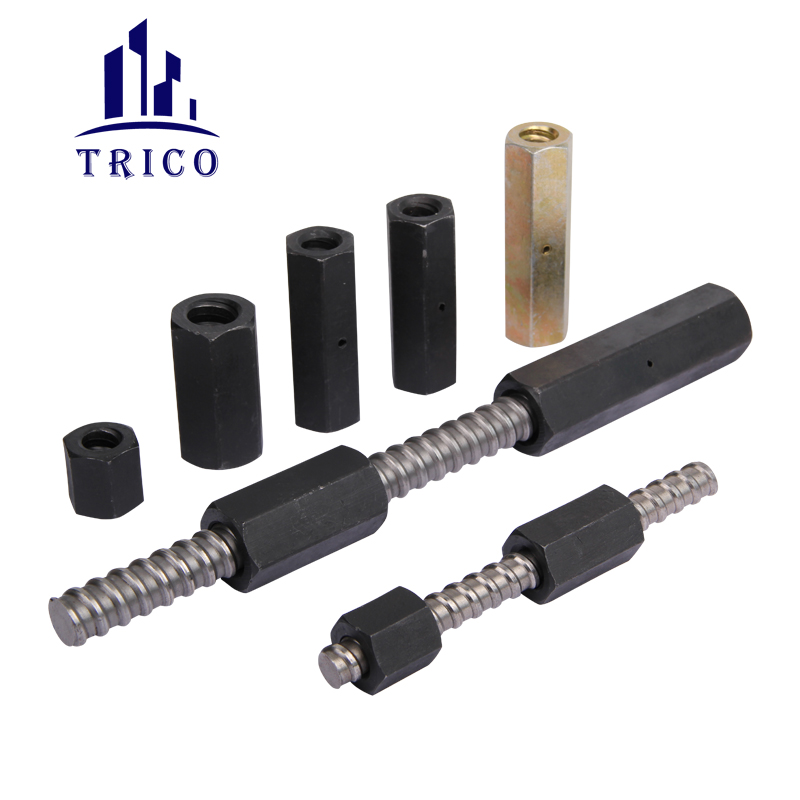

Hex Nut (Hex Coupler or Hexagon Nut) is used for Formwork Tie Rod System  in Construction Shuttering System. It is used as an alternative for wing nut when the access is too narrow. Connection nut is used to connect two steel tie rods.

Different size are available: for bar dia15mm, 20mm, 26mm, and with min. length L=30mm to max. L=130mm, depending on the usage.

Trico supplies Steel Hex Nut and Ductile Hex Nut. Steel Hex Nut is weldable.

Besides, Formwork Tie Rod System includes Tie Rod, Tie Nut, Water Stop Nut, Steel Cone and Washer Plate.

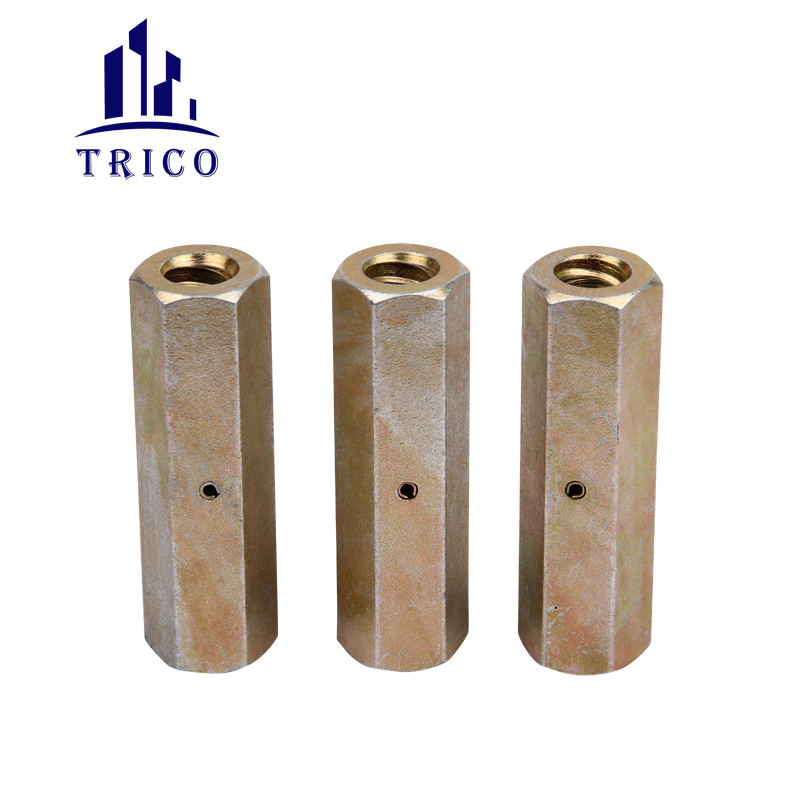

Machining Weldable Formwork Hex Nut Connector
D15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod SystemMaterial45# SteelPackingBags or Pallets
DiameterD15mm
D20mm
ColorBlack,Silver or Gold
Surface TreatmentGalvanized or BlackApplicationConcrete Formwork
Related ProductsTie Rod, Tie Nut, Water Stop, Washer Plate
OEM Sizes are Available
Ductile Iron Casting Formwork Hex Nut
D15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod SystemMaterialDuctile Iron CastingPackingBags or Pallets
DiameterD15mmUltimate LoadOver 180kn
FeatureOne Arm
Two Arms
ColorGold, Silver or Black
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.







Ductile Iron Casting Formwork Combi Plate Nut/Square Slope Nut
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialDuctile Iron CastingPackingBags or Pallets
DiameterD15mmUltimate LoadOver 180kn
FeatureRound Plate or Square PlateColorGold, Silver or Black
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
OEM Design is Acceptable

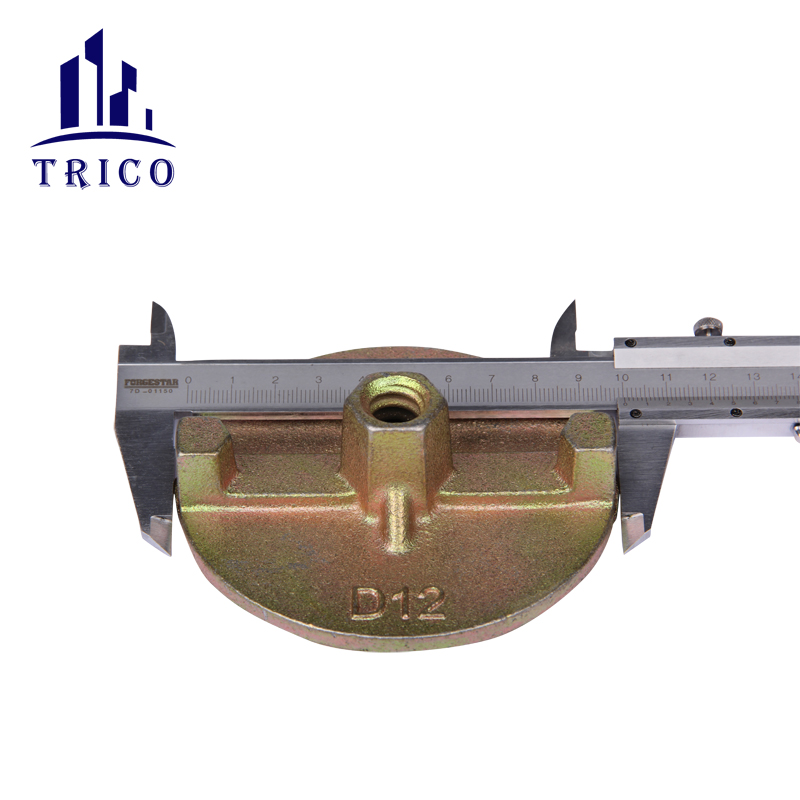

Ductile Iron Casting Formwork Tie Nut Details
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialDuctile Iron CastingPackingBags or Pallets
DiameterD12mm
D15mm
D20mm
Ultimate
Load
Over 180kn
Plate SizeD70mm
D80mm
D90mm
D100mm
D120mm
ColorGold, Silver or Black
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
OEM Design is Acceptable
Formwork Cold Rolled Tie Rod
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialQ235, 45# Steel, Special mixture Steel
DiameterD12mm/ D15mm/ D20mm
Weight0.75kg/meter (D12mm)
1.50kg/meter (D15mm)
2.32kg/meter (D20mm)
Ultimate Load70kn-260kn
Surface TreatmentGalvanized or as Nature
PackingBundles
Related ProductsTie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc.
Formwork Hot Rolled Tie Rod
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialSpecial mixture Steel
DiameterDW15mm
Weight1.42kg/meter
Ultimate Load180kn-190kn
Surface TreatmentGalvanized or as Nature
PackingBundles
Related ProductsTie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc.
Ductile Iron Casting Formwork Wing Nut
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialDuctile Iron CastingPackingBags or Pallets
DiameterD15mm
D20mm
Ultimate
Load
Over 180kn
FeatureOne Arm
Two Arms
ColorGold, Silver or Black
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
OEM Design is Acceptable
em NamePhotoMaterialDiameterWeightFinishingBreaking Load
Water StopFormwork Accessories 180KN Formwork Steel Tie Rod Wing Nut For Concrete ConstructionCast IronD12/Self color or galvanzing/
Cast IronD15

440g

450g

500g

Self color or galvanzing180KN
Cast IronD20

1.0kg

1.2kg

Self color or galvanzing320KN
 Formwork Tie Rod Washer Plate/Waler Plate
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialCarbon SteelPackingBags or Boxes
Size100x100mm
100x130mm
120x120mm
Thickness4.0-20.0mm
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.




D15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod SystemD15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod SystemD15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod SystemD15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod System


D15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod SystemD15 D20 Machining Weldable Formwork Hex Nut Connector For Formwork Tie Rod System

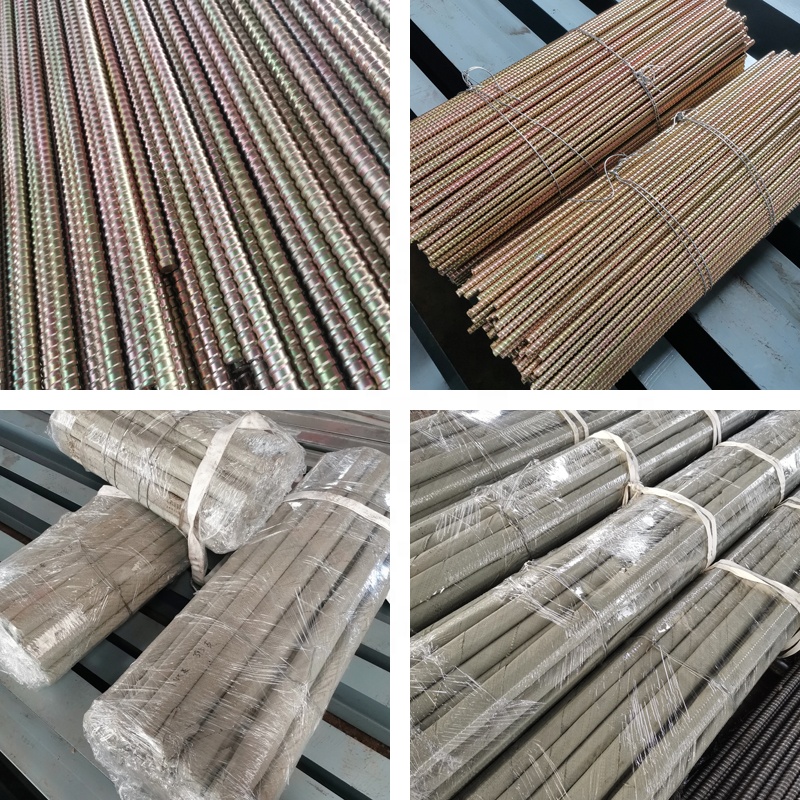

Formwork tie rod is one of the most important accessories in a poured wall project. We Hebei Trico supply different types of concrete tie rods, including the Hot Rolled discontinuous thread tie rod (with the breaking load of 180kn) and Cold Rolled continuous tie rods (with the breaking load of 140kn).

The concrete tie rods are used with various formwork accessories in concrete construction. Both the hot rolled and cold rolled the tie rods are able to work with formwork wing nutsconcrete anchor nutshex nuts, connection nuts, washer plates, formwork wedge clamps, formwork spring clamps, water stopper/water barrier nut, combi plate nut, plastic cones, plastic tubes, etc.

Tie Nut: There are single wing nut, butterfly wing nut, two anchor wing nut, three anchor wing nut,combination wing Nut. Because of this structure, wing nuts can be easily tightened and loosened by hand without any tools. Wing nuts have casting and forging types by processing technology , common thread size is 17mm/20mm.

Tie Rod: The Material of Tie Rod usually use Q235 carbon steel, 45# steel, surface finished as galvanized, zinc-plated and natural color. The working load from 80kn to 140kn. And we also offer Hot Rolled Tie Bar, which with the breaking load of 180kn.

Washer Plate: normally we offer 120x120x10mm, 120x120x8mm, 120x110x10mm, 100x100x10mm and other sizes can be made accordind to demand.

All of these items are popularly used for concrete formwork & shuttering systems, including wall formwork, column formwork, slab formwork, beam formwork, etc.

If you are on market for formwork tie rods and the related formwork accessories, welcome to contact us. OEM is available as your requirement.
