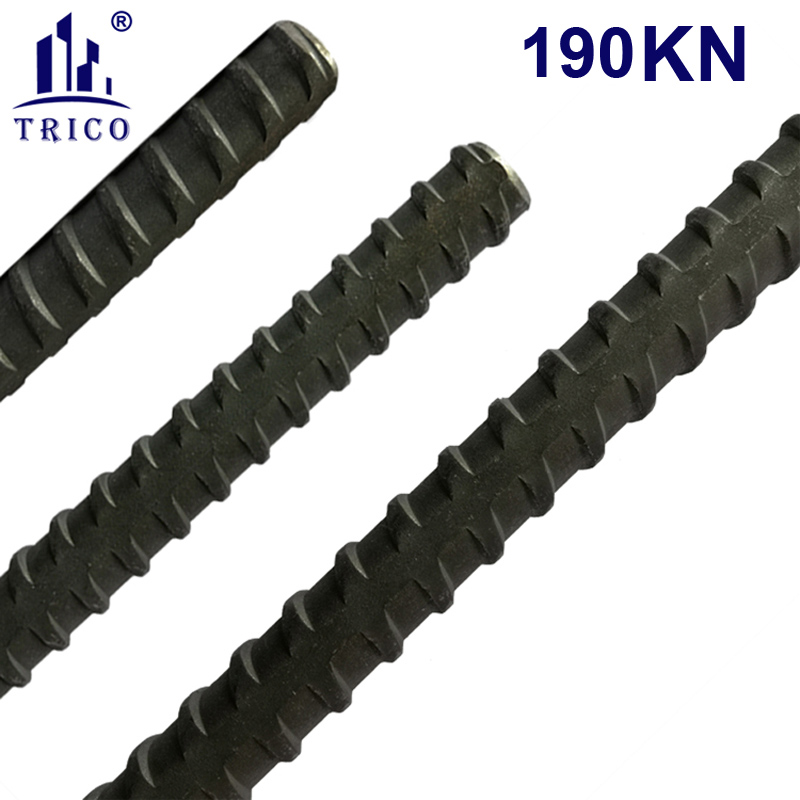

190KN D15-830 Hot-Rolled Thread Bar/Tie Rod for Concrete formwork Tie Rod System
  • 190KN D15-830 Hot-Rolled Thread Bar/Tie Rod for Concrete formwork Tie Rod System
  • 190KN D15-830 Hot-Rolled Thread Bar/Tie Rod for Concrete formwork Tie Rod System
  • 190KN D15-830 Hot-Rolled Thread Bar/Tie Rod for Concrete formwork Tie Rod System
  • 190KN D15-830 Hot-Rolled Thread Bar/Tie Rod for Concrete formwork Tie Rod System
  • 190KN D15-830 Hot-Rolled Thread Bar/Tie Rod for Concrete formwork Tie Rod System
  • 190KN D15-830 Hot-Rolled Thread Bar/Tie Rod for Concrete formwork Tie Rod System
190KN D15-830 Hot-Rolled Thread Bar/Tie Rod for Concrete formwork Tie Rod System190KN D15-830 Hot-Rolled Thread Bar/Tie Rod for Concrete formwork Tie Rod System190KN D15-830 Hot-Rolled Thread Bar/Tie Rod for Concrete formwork Tie Rod System190KN D15-830 Hot-Rolled Thread Bar/Tie Rod for Concrete formwork Tie Rod System190KN D15-830 Hot-Rolled Thread Bar/Tie Rod for Concrete formwork Tie Rod System190KN D15-830 Hot-Rolled Thread Bar/Tie Rod for Concrete formwork Tie Rod System

190KN D15-830 Hot-Rolled Thread Bar/Tie Rod for Concrete formwork Tie Rod System

Product Introduction:

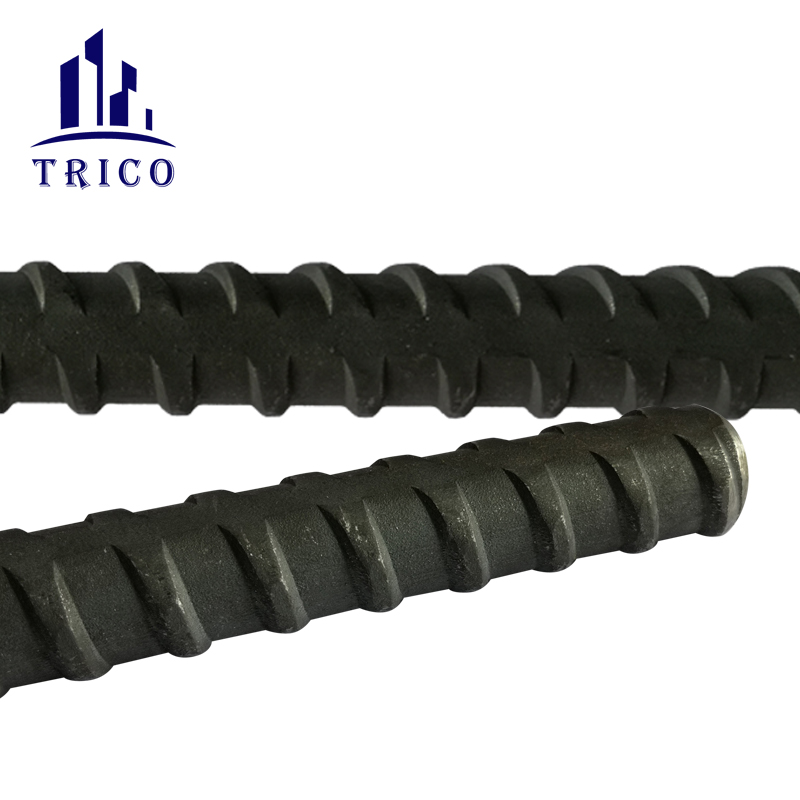

Dywidag tie bars are discontinuously threaded rebars.  It is a type of hot rolled concrete tie rod. According to the sizes, there are 6# to 28# dywidag bars. Among the hot-rolled dywidag tie rod, the sizes of dw 15 and dw20 are the most popular sizes.

Product Details



190KN D15-830 Hot-Rolled Thread Bar/Tie Rod for Concrete formwork Tie Rod System

Dywidag tie bars are discontinuously threaded rebars.  It is a type of hot rolled concrete tie rod. According to the sizes, there are 6# to 28# dywidag bars. Among the hot-rolled dywidag tie rod, the sizes of dw 15 and dw20 are the most popular sizes.

TRICO’s dywidag type concrete tie rods are made from 830 and 930 steel grades.  The ultimate load of the 15mm hot-rolled dywidag bars is reaching 201KN. Thus, the dywidag threaded concrete tie rod is also called heavy load capacity construction rebar.

Discontinuous threaded make the concrete tie rods self-cleaning in construction after working from the concreting.

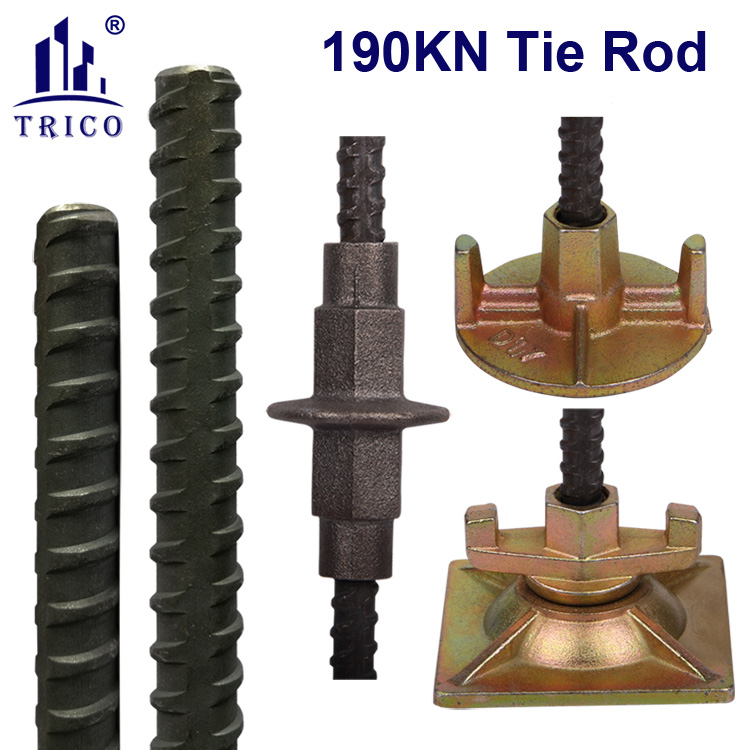

•190KN Concrete Rods(Hot Rolled Steel Tie Rod)

•188 KN Tie Bars (42CrMo Steel Cold Rolled Type Rod)

•145KN Concrete Tie bars(45# Steel Cold Rolled Rod)

•95KN Tie Rods (Q235 Steel Cold Rolled Rods)

1-190KN D15-830 Hot-Rolled Thread BarTie Rod for Concrete formwork Tie Rod System.jpg

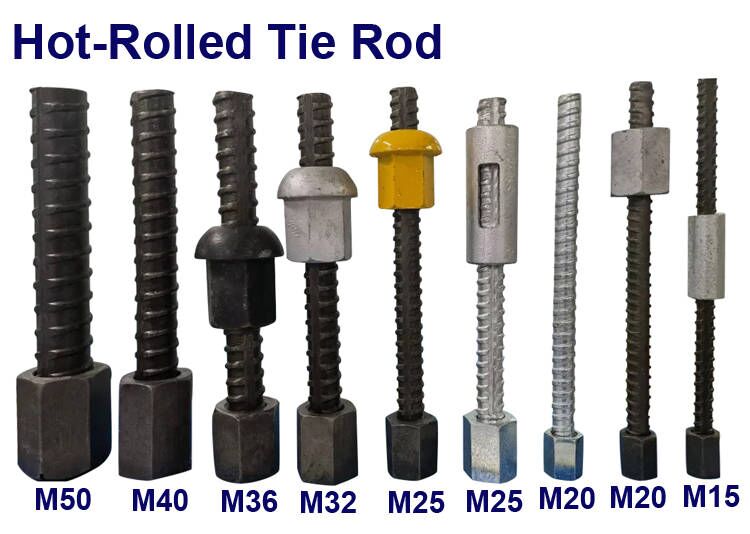

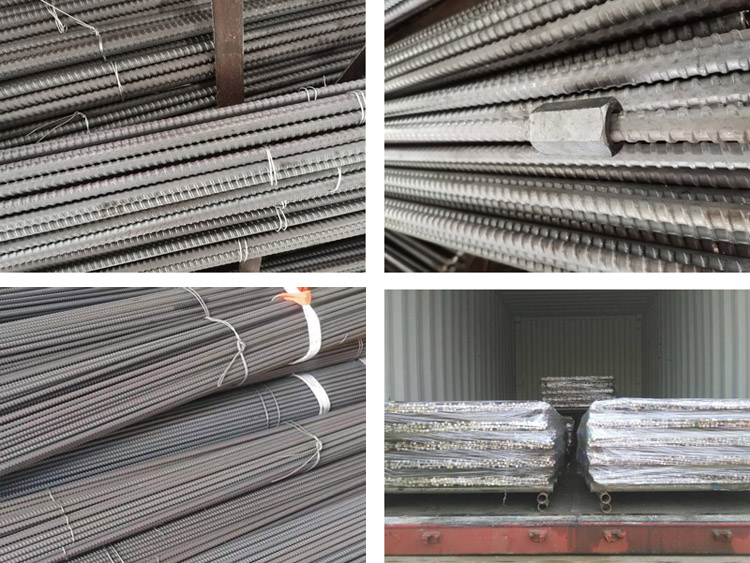

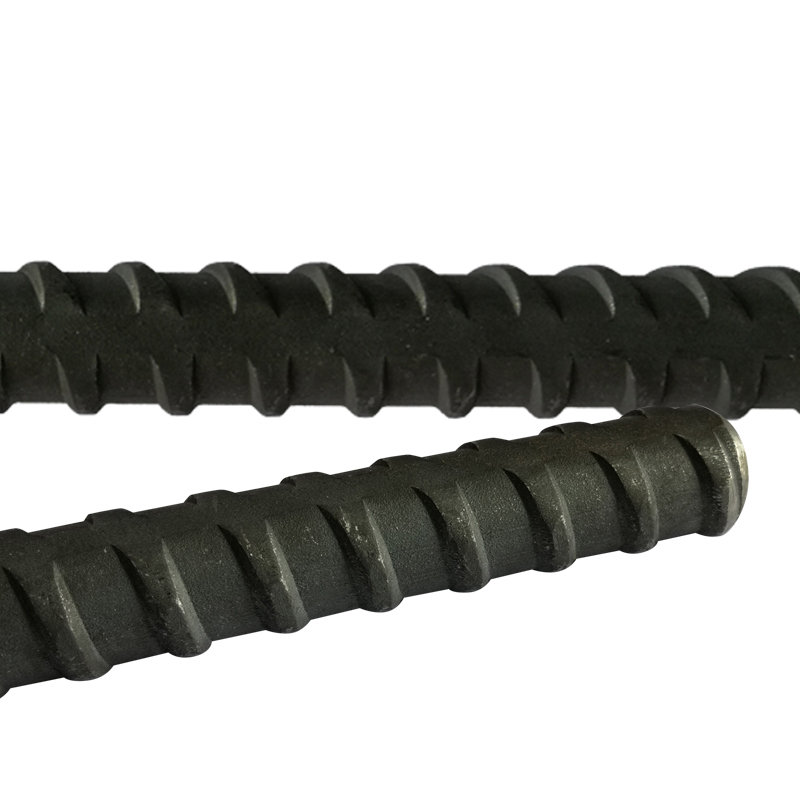

Formwork Hot Rolled Tie Rod
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialSpecial mixture Steel
DiameterDW15mm/DW20mm or OEM sizes are available
Weight1.42kg/meter
Ultimate LoadDW15mm: 180kn-190kn
Surface TreatmentGalvanized or as Nature

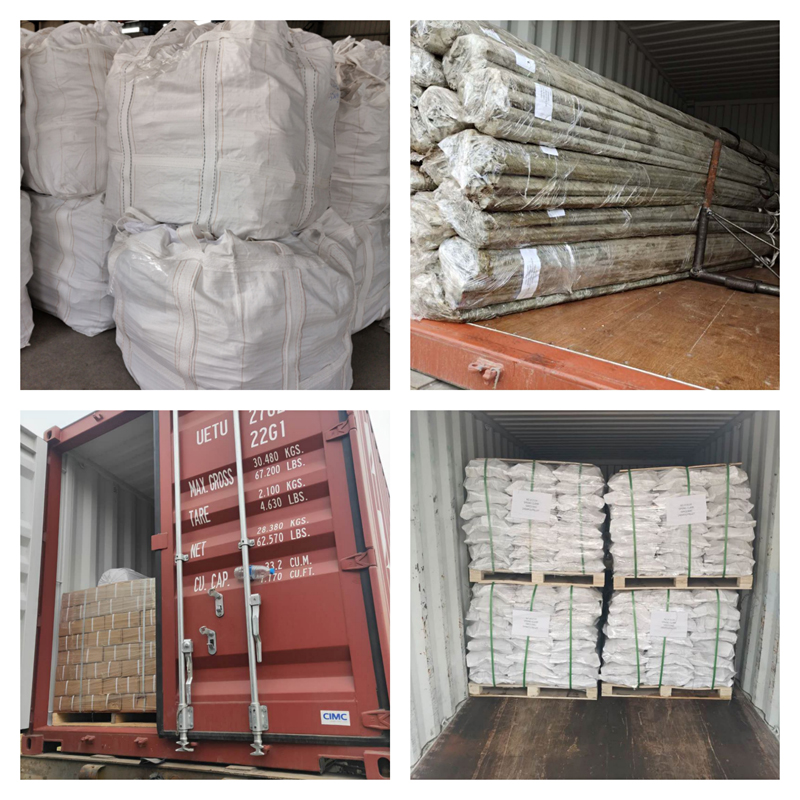

PackingBundles
Related ProductsTie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc.

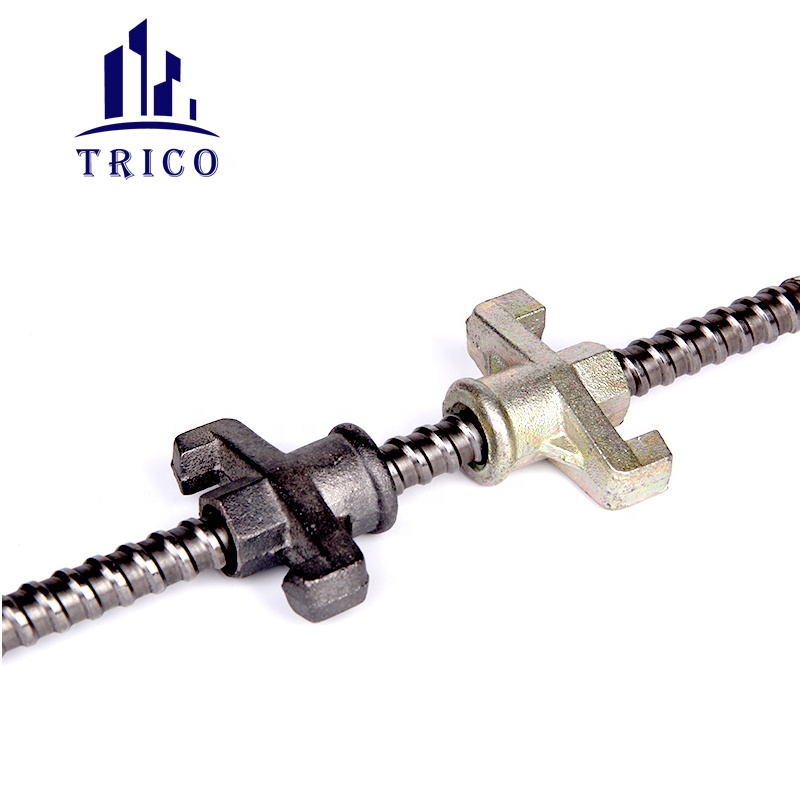

Formwork Cold Rolled Tie Rod
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialQ235, 45# Steel, Special mixture Steel
DiameterD12mm/ D15mm/ D20mm
Weight0.75kg/meter (D12mm)
1.50kg/meter (D15mm)
2.32kg/meter (D20mm)
Ultimate Load70kn-260kn
Surface TreatmentGalvanized or as Nature
PackingBundles
Related ProductsTie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc.

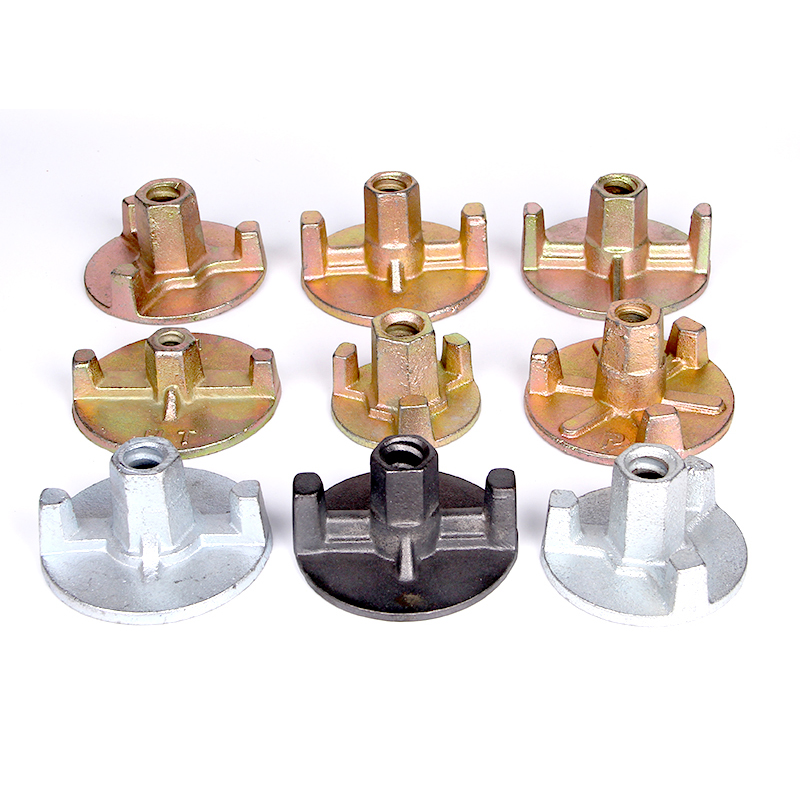

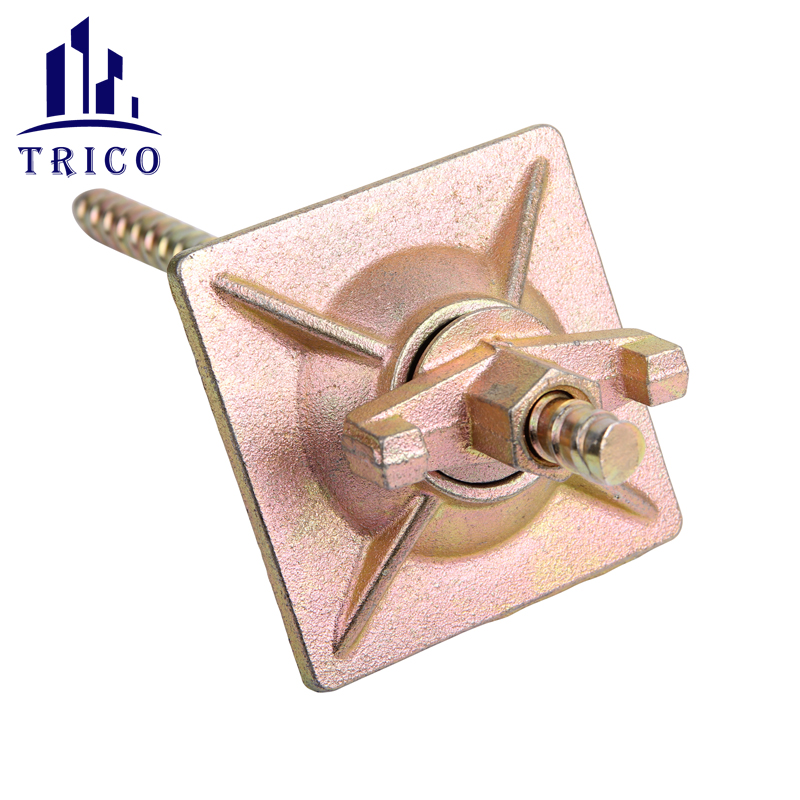

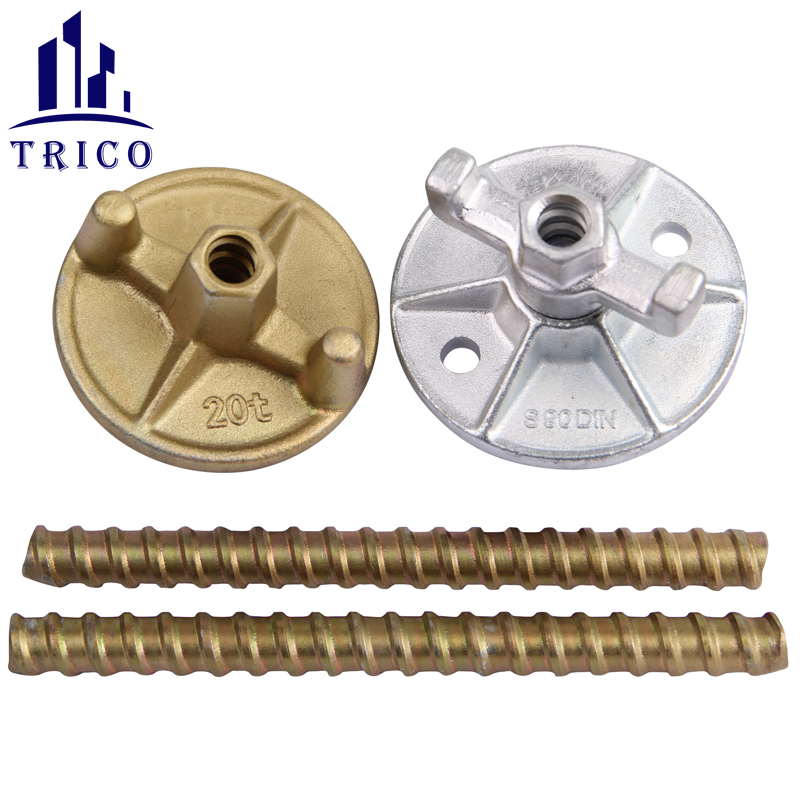

Ductile Iron Casting Formwork Combi Plate Nut/Square Slope Nut
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialDuctile Iron CastingPackingBags or Pallets
DiameterD15mmUltimate LoadOver 180kn
FeatureRound Plate or Square PlateColorGold, Silver or Black
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
OEM Design is Acceptable
Ductile Iron Casting Formwork Tie Nut Details
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialDuctile Iron CastingPackingBags or Pallets
DiameterD12mm
D15mm
D20mm
Ultimate
Load
Over 180kn
Plate SizeD70mm
D80mm
D90mm
D100mm
D120mm
ColorGold, Silver or Black
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
OEM Design is Acceptable

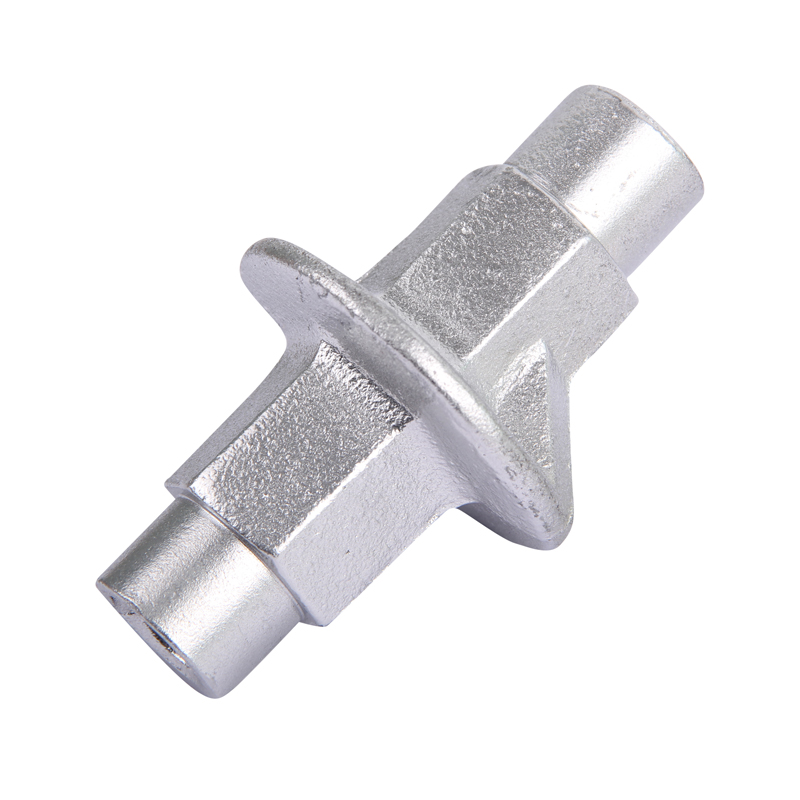

Item NamePhotoMaterialDiameterWeightFinishingBreaking Load
Water StopFormwork Accessories 180KN Formwork Steel Tie Rod Wing Nut For Concrete ConstructionCast IronD12/Self color or galvanzing/
Cast IronD15

440g

450g

500g

Self color or galvanzing180KN
Cast IronD20

1.0kg

1.2kg

Self color or galvanzing320KN

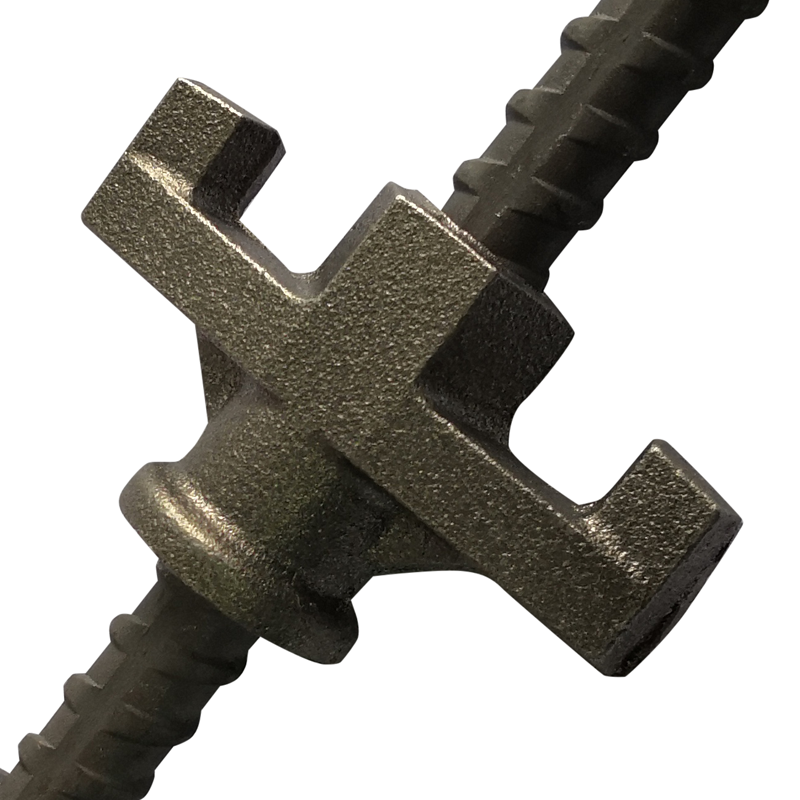

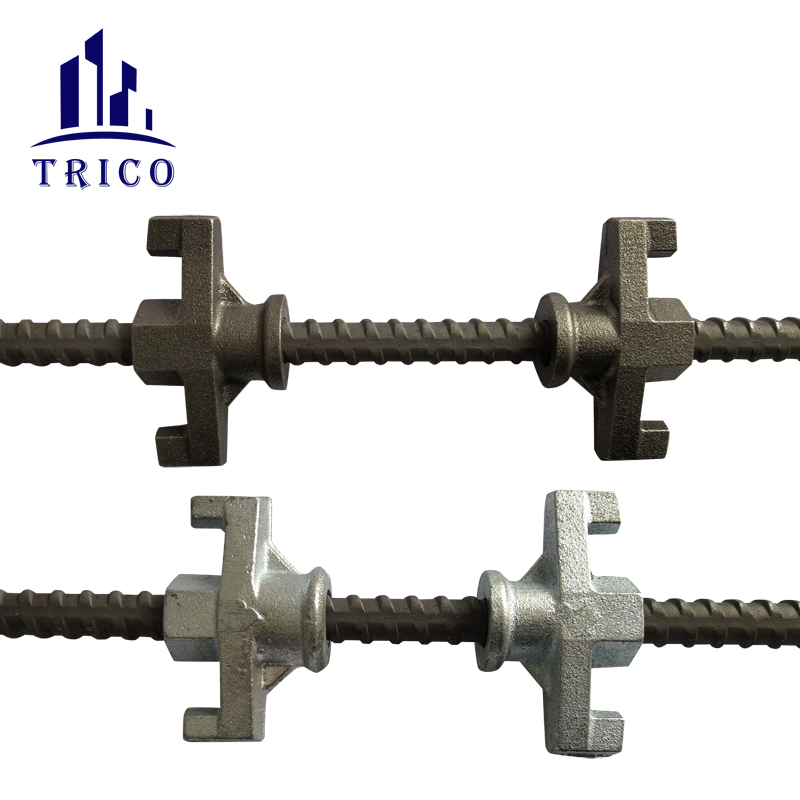

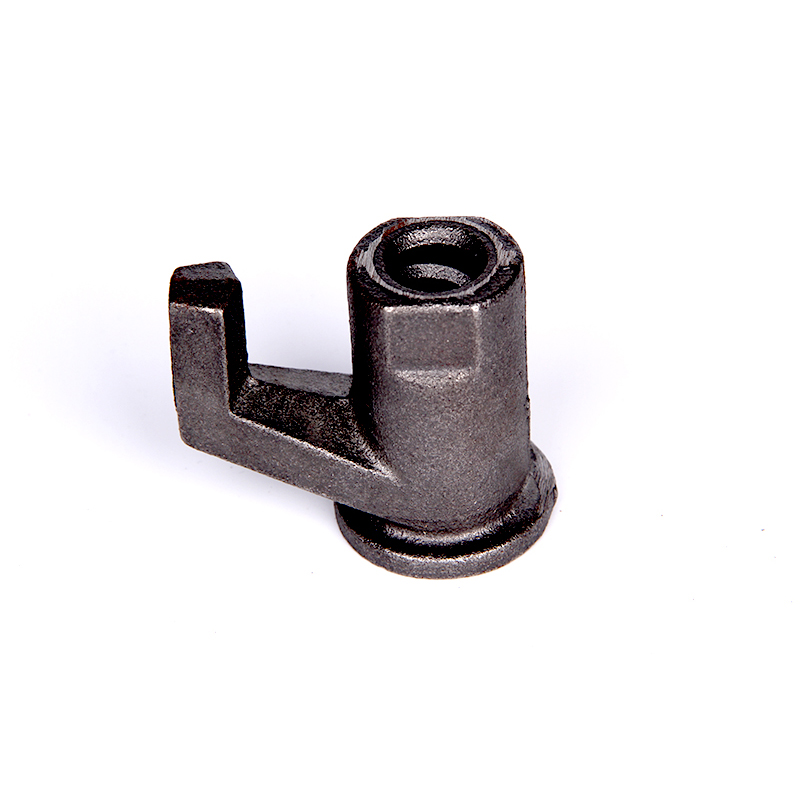

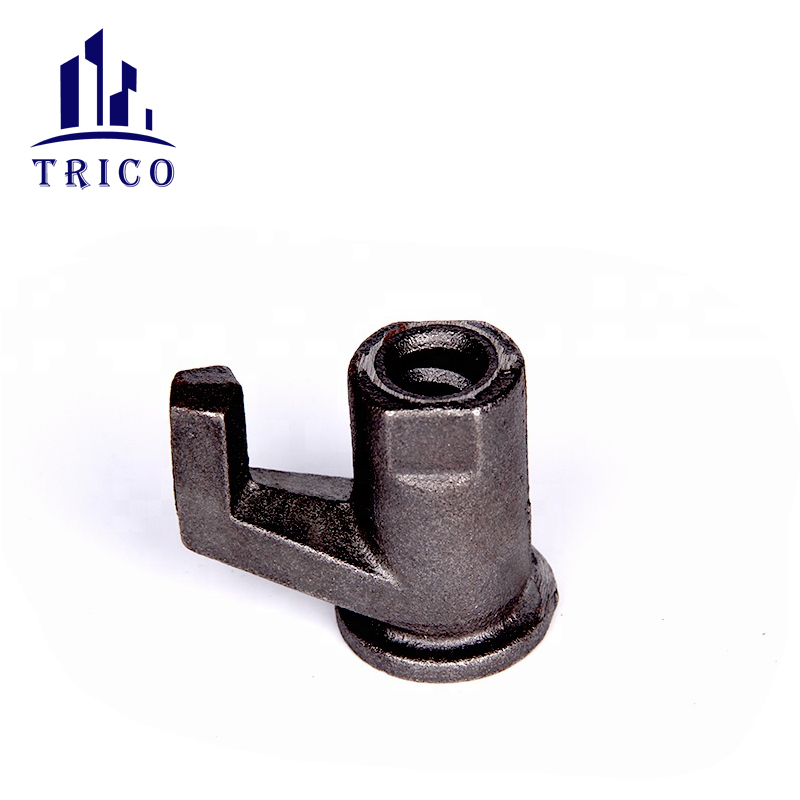

Ductile Iron Casting Formwork Wing Nut
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialDuctile Iron CastingPackingBags or Pallets
DiameterD15mm
D20mm
Ultimate
Load
Over 180kn
FeatureOne Arm
Two Arms
ColorGold, Silver or Black
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
OEM Design is Acceptable
Ductile Iron Casting Formwork Hex Nut
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialDuctile Iron CastingPackingBags or Pallets
DiameterD15mmUltimate LoadOver 180kn
FeatureOne Arm
Two Arms
ColorGold, Silver or Black
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
OEM Sizes are Available

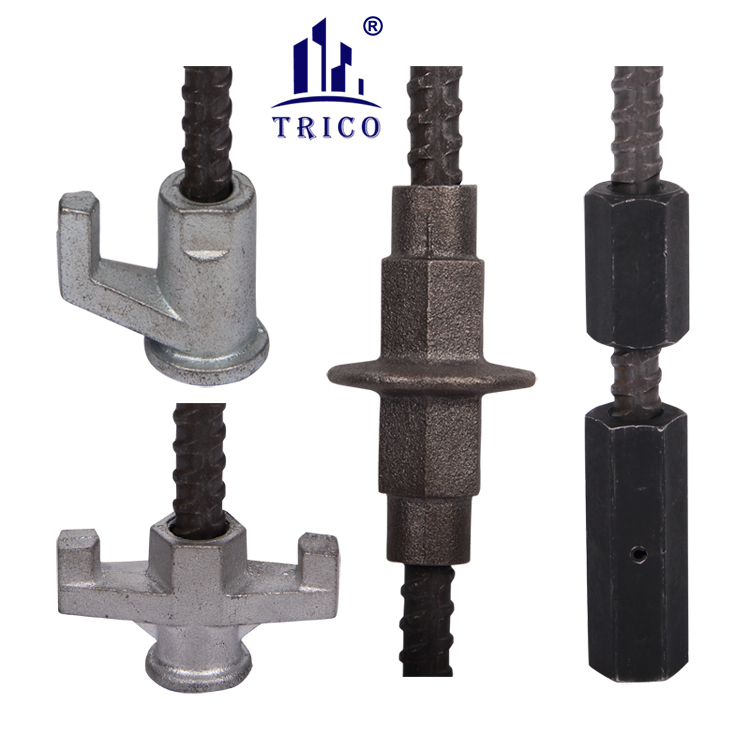

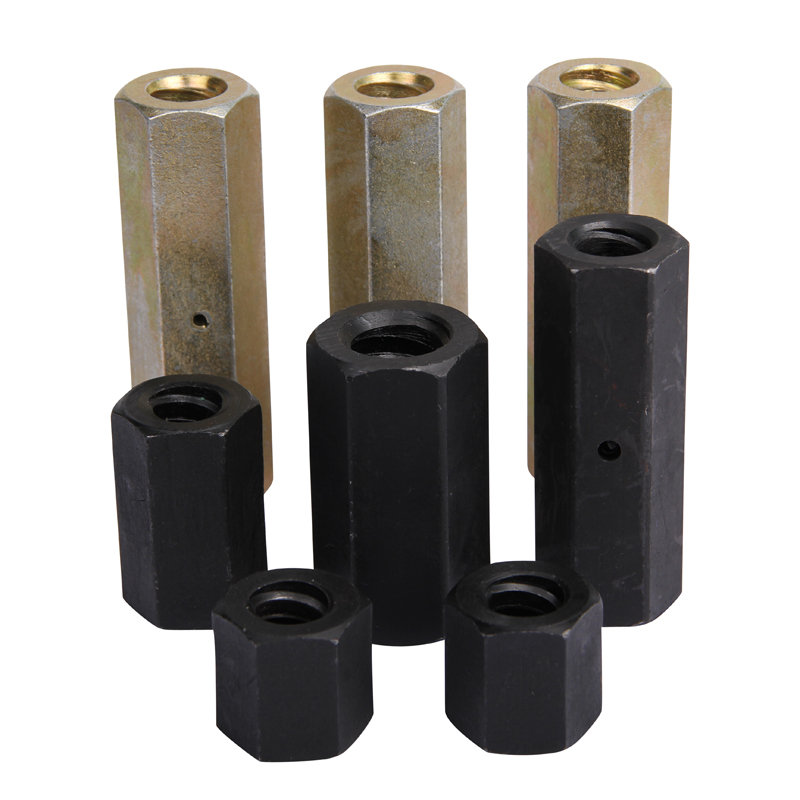

Machining Weldable Formwork Hex Nut Connector
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterial45# SteelPackingBags or Pallets
DiameterD15mm
D20mm
ColorBlack,Silver or Gold
Surface TreatmentGalvanized or BlackApplicationConcrete Formwork
Related ProductsTie Rod, Tie Nut, Water Stop, Washer Plate
OEM Sizes are Available

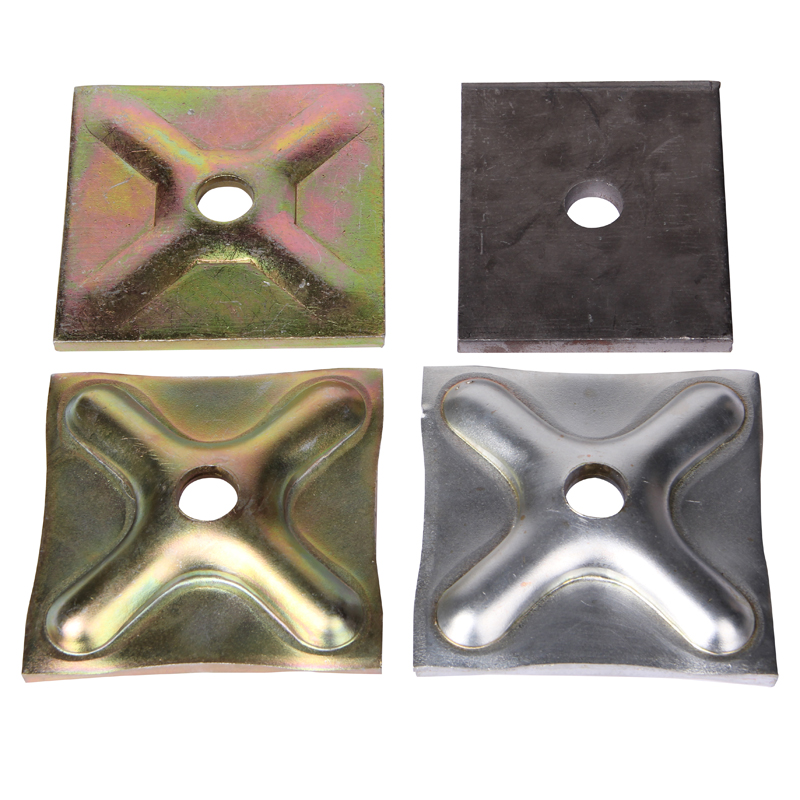

Formwork Tie Rod Washer Plate/Waler Plate
Concrete Formwork Fasten Dw15 Tie Rod System Tie NutMaterialCarbon SteelPackingBags or Boxes
Size100x100mm
100x130mm
120x120mm
Thickness4.0-20.0mm
Surface TreatmentGalvanized or as NatureCapacity300tons per month
ApplicationFormwork Tie Rod SystemRelated ProductsTie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc.
OEM Design is Acceptable

2-1-190KN D15-830 Hot-Rolled Thread BarTie Rod for Concrete formwork Tie Rod System.jpg

2-2-190KN D15-830 Hot-Rolled Thread BarTie Rod for Concrete formwork Tie Rod System.jpg

3-190KN D15-830 Hot-Rolled Thread BarTie Rod for Concrete formwork Tie Rod System.jpg

4- Hebei Trico Formwork & Scaffolding.jpg

5- Hebei Trico Formwork & Scaffolding.jpg

6- CHebei Trico Formwork & Scaffolding.jpg

7- Hebei Trico Formwork & Scaffolding.jpg

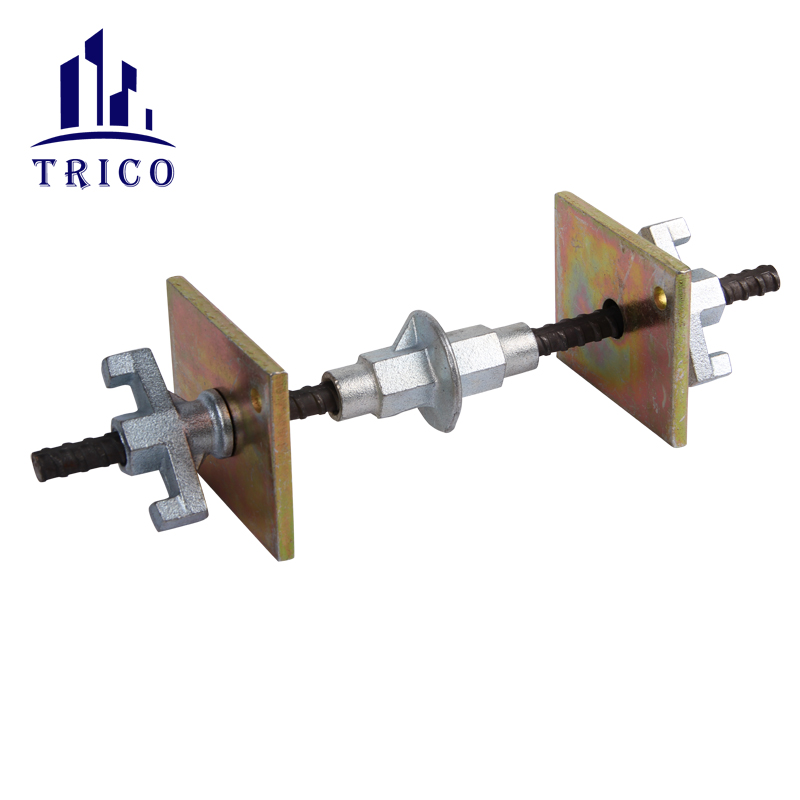

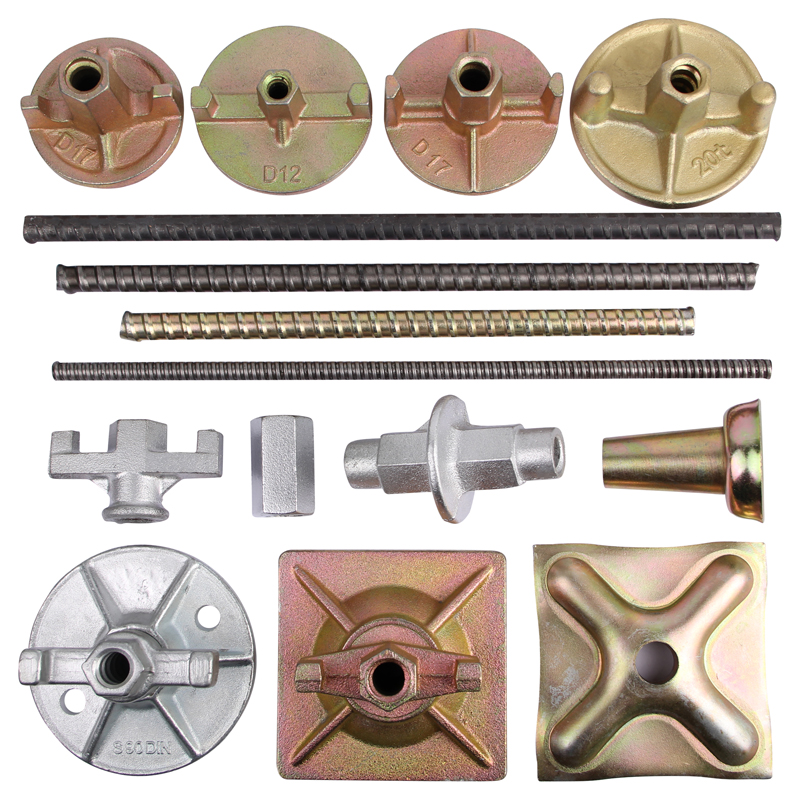

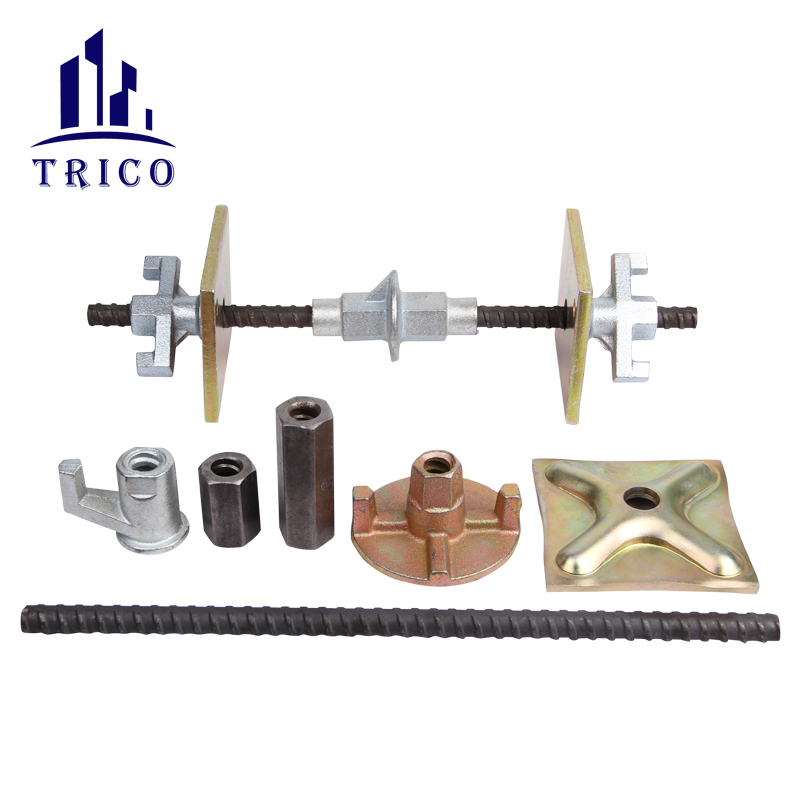

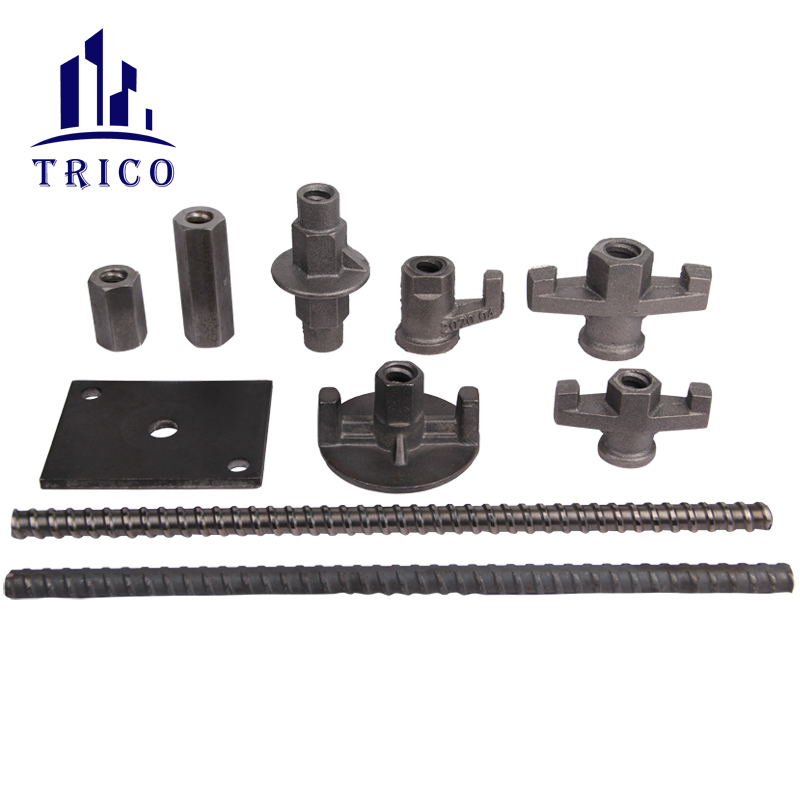

We custom your concrete tie rod sizes too. You can find the steel threaded rods in diameter from 6mm to 32mm here. Among all of them,  d15mm, d16mm, and d20mm sizes of tie rods are widely used sizes. They are working together with the inner threaded tie rod connectors in the concrete construction, like concrete tie couplings, tie rod hex nuts, anchor nut, wing nut, water stopper, formwork cones etc.

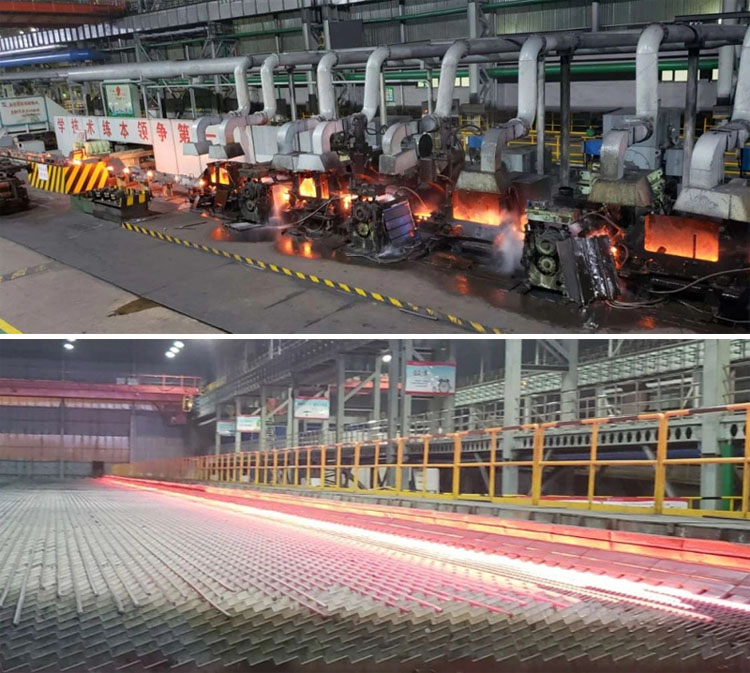

According to the threaded types, there are discontinuous dywidag bars and continuous tie bars in Trico. Discontinuous concrete tie rods are also called dywidag tie bars, it is hot rolled during tie rod manufacturing. While the continuously threaded rods are cold rolled.

Compare to hot rolled dywidag bars, the cold-rolled concrete tie rods are threaded from a steel round bar structure. According to the steel grade, TRICO supplies your Q235, 45#, and 42CrMo cold roll steel coil rods for your construction.

The different steel structure grade brings your different grade of concrete tie rods. Take D16(15/17mm) sizes for an example:

Q235 steel grade D16 concrete tie rods ultimate test result: 95KN

45# steel grade D16 tie rod: the maximum load is 145KN

42CrMo steel grade tie rod in 16mm: load capacity can reach 188KN

The cold-rolled concrete tie rods are at a lower cost and cheaper price than the dywidag hot rolled tie bars. Thus, this type of tie rods is used popularly in normal civil and commercial constructions.  In the other words, the hot-rolled dywidag tie rods are expected heavier and bigger breaking loads.

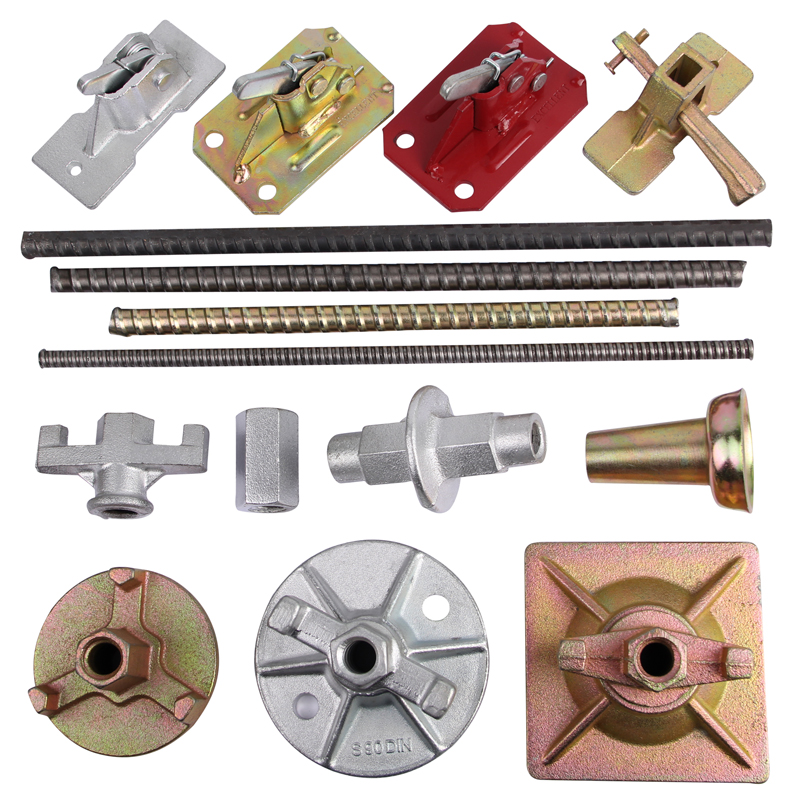

All of these items are popularly used for concrete formwork & shuttering systems, including wall formwork, column formwork, slab formwork, beam formwork, etc.

If you are on market for formwork tie rods and the related formwork accessories, welcome to contact us. OEM is available as your requirement.
