Wing nuts and Tie rods as a whole facility are used widely in formwork construction.
There are single wing nut, butterfly wing nut, two anchor wing nut, three anchor wing nut, combination wing nut. Because of this structure, wing nuts can be easily tightened and loosened by hand without any tools. Wing nuts have casting and forging types by processing technology.

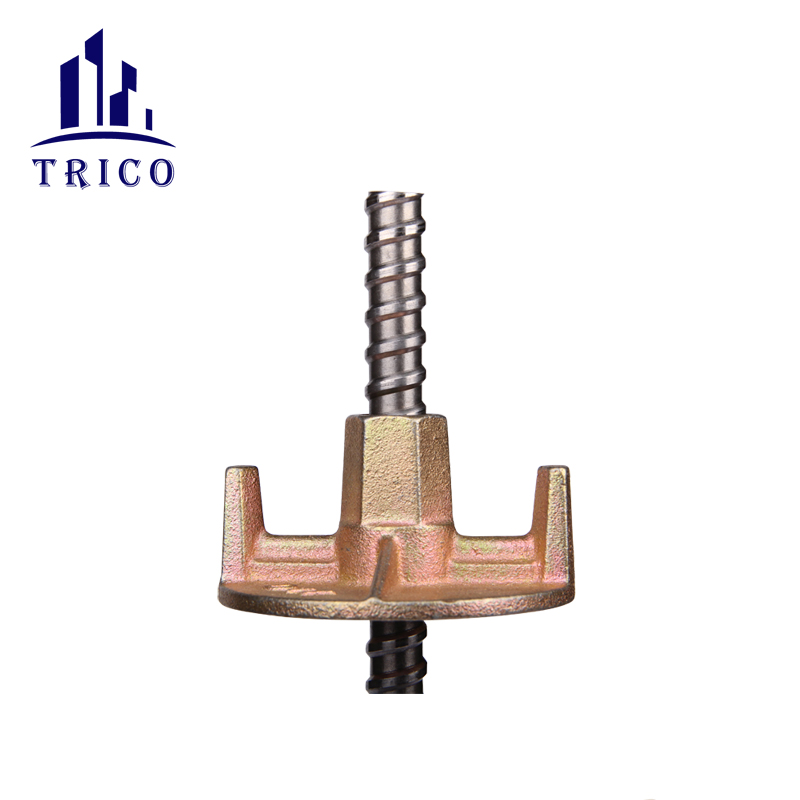

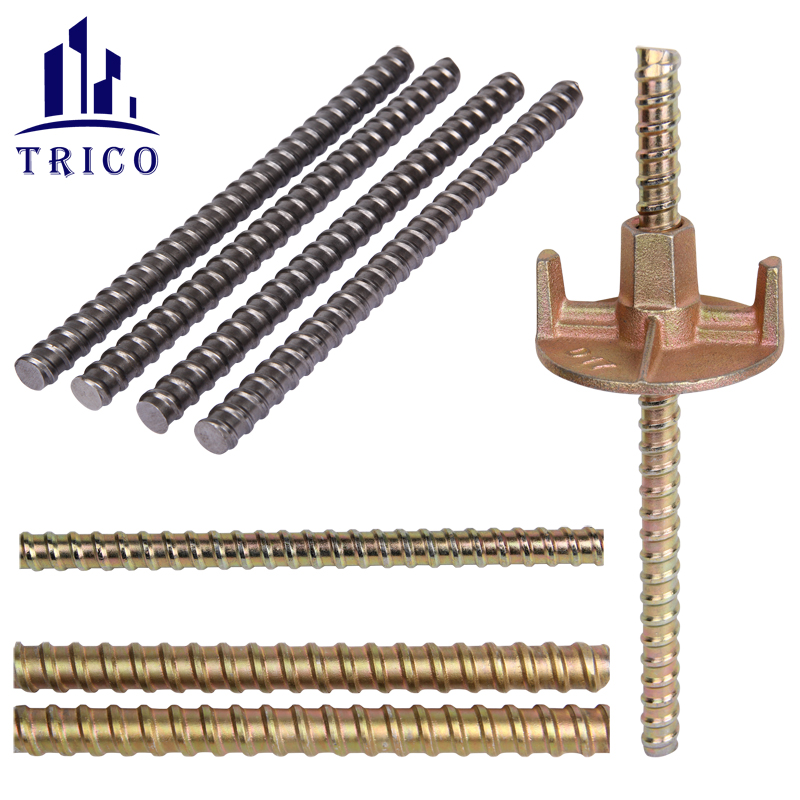

Formwork Accessories 180KN Formwork Steel Tie Rod Wing Nut For Concrete Construction

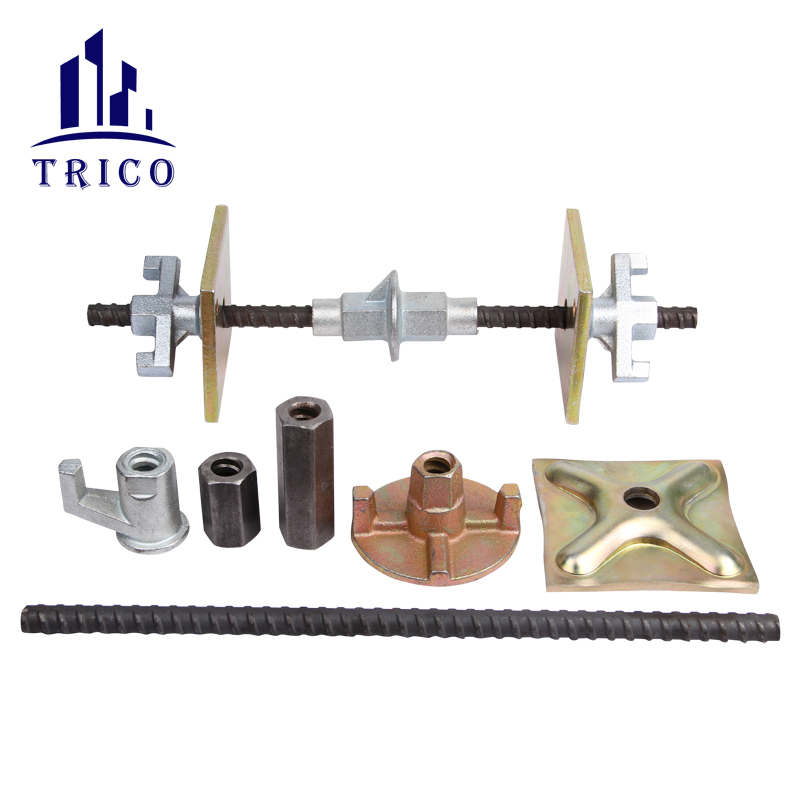

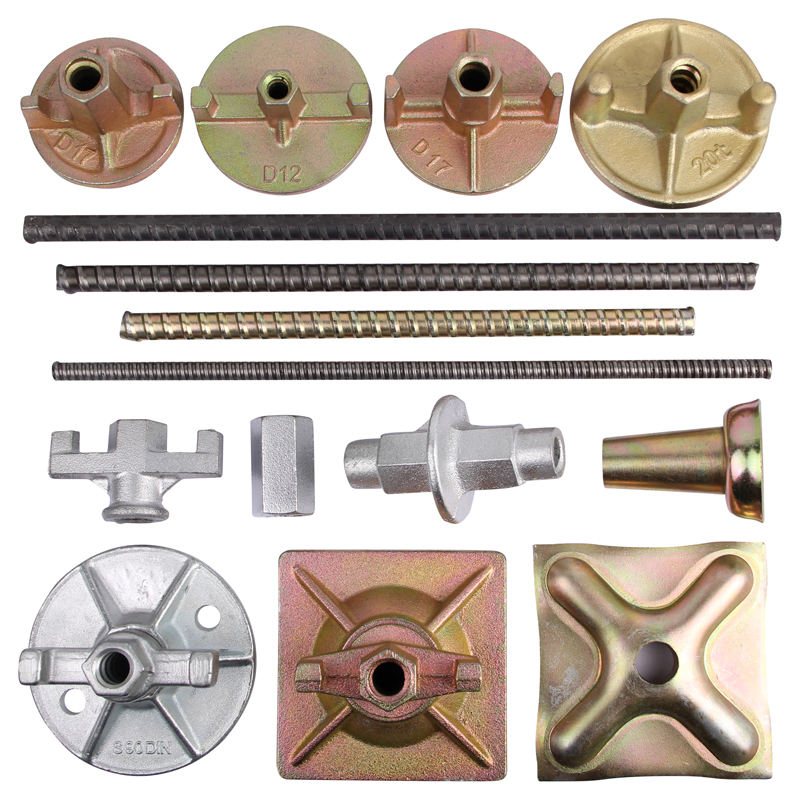

Concrete Formwork Tie Rod System is used with various formwork accessories in concrete construction. Tis system includes Tie Rod, Formwork Wing Nuts, Concrete Anchor Nuts, Hex Nuts, Connection Nuts, Washer Plates, Formwork Wedge Clamps, Formwork Spring Clamps, Water Stopper/Water Barrier Nut, Combi Plate Nut, Plastic Cones, Plastic Tubes, etc.
All of these items are popularly used for concrete formwork & shuttering systems, including wall formwork, column formwork, slab formwork, beam formwork, etc.

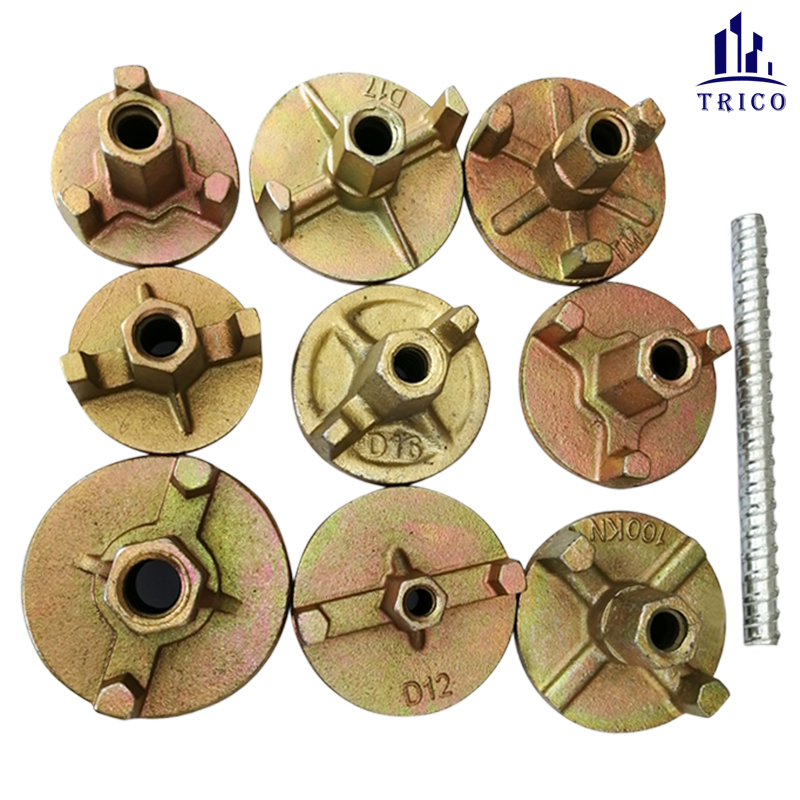

| Ductile Iron Casting Formwork Tie Nut Details | ||||
 | Material | Ductile Iron Casting | Packing | Bags or Pallets |
| Diameter | D12mm D15mm D20mm | Ultimate Load | Over 180kn | |
| Plate Size | D70mm D80mm D90mm D100mm D120mm | Color | Gold, Silver or Black | |
| Surface Treatment | Galvanized or as Nature | Capacity | 300tons per month | |
| Application | Formwork Tie Rod System | Related Products | Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc. | |
| OEM Design is Acceptable | ||||
| Ductile Iron Casting Formwork Combi Plate Nut/Square Slope Nut | ||||
 | Material | Ductile Iron Casting | Packing | Bags or Pallets |
| Diameter | D15mm | Ultimate Load | Over 180kn | |
| Feature | Round Plate or Square Plate | Color | Gold, Silver or Black | |
| Surface Treatment | Galvanized or as Nature | Capacity | 300tons per month | |
| Application | Formwork Tie Rod System | Related Products | Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc. | |
| OEM Design is Acceptable | ||||
| Item Name | Photo | Material | Diameter | Weight | Finishing | Breaking Load |

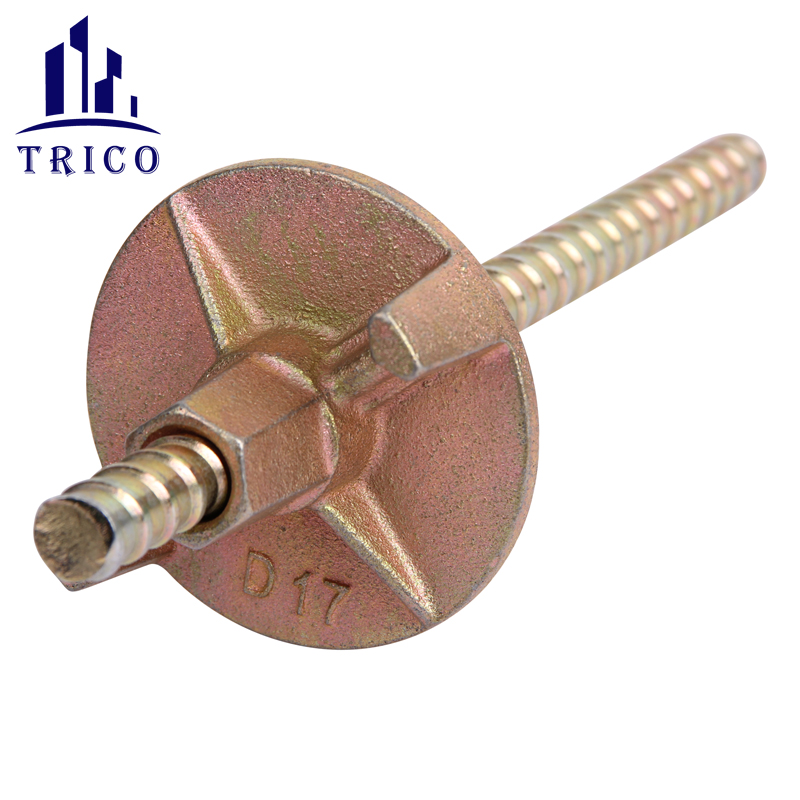

| Water Stop |  | Cast Iron | D12 | / | Self color or galvanzing | / |
| Cast Iron | D15 | 440g 450g 500g | Self color or galvanzing | 180KN | ||
| Cast Iron | D20 | 1.0kg 1.2kg | Self color or galvanzing | 320KN |

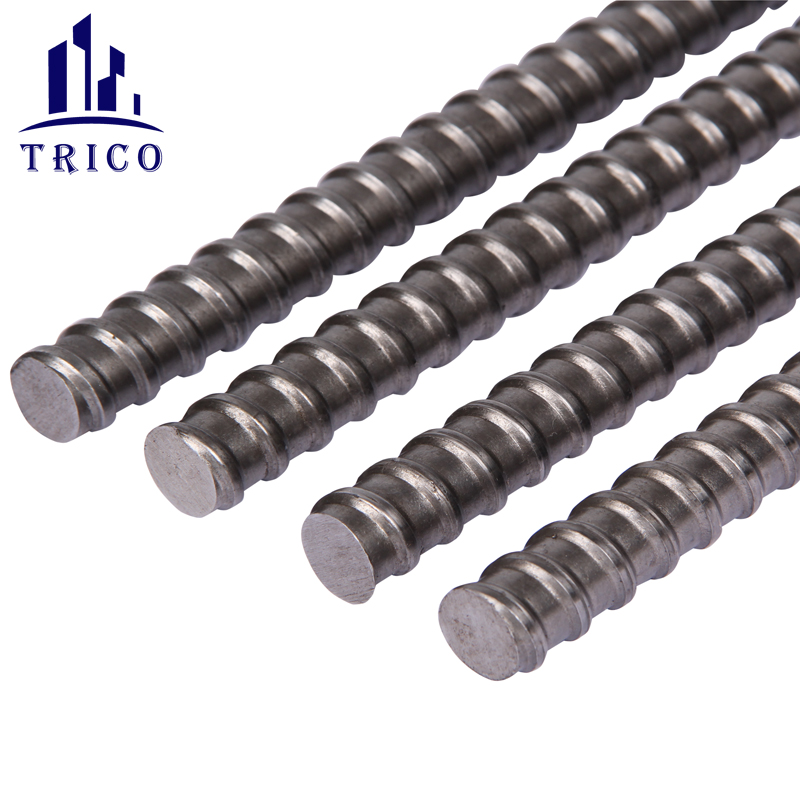

| Formwork Cold Rolled Tie Rod | ||
 | Material | Q235, 45# Steel, Special mixture Steel |
| Diameter | D12mm/ D15mm/ D20mm | |
| Weight | 0.75kg/meter (D12mm) 1.50kg/meter (D15mm) 2.32kg/meter (D20mm) | |
| Ultimate Load | 70kn-260kn | |
| Surface Treatment | Galvanized or as Nature | |
| Packing | Bundles | |
| Related Products | Tie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc. | |
| Formwork Hot Rolled Tie Rod | ||
 | Material | Special mixture Steel |
| Diameter | DW15mm | |
| Weight | 1.42kg/meter | |
| Ultimate Load | 180kn-190kn | |
| Surface Treatment | Galvanized or as Nature | |
| Packing | Bundles | |
| Related Products | Tie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc. | |

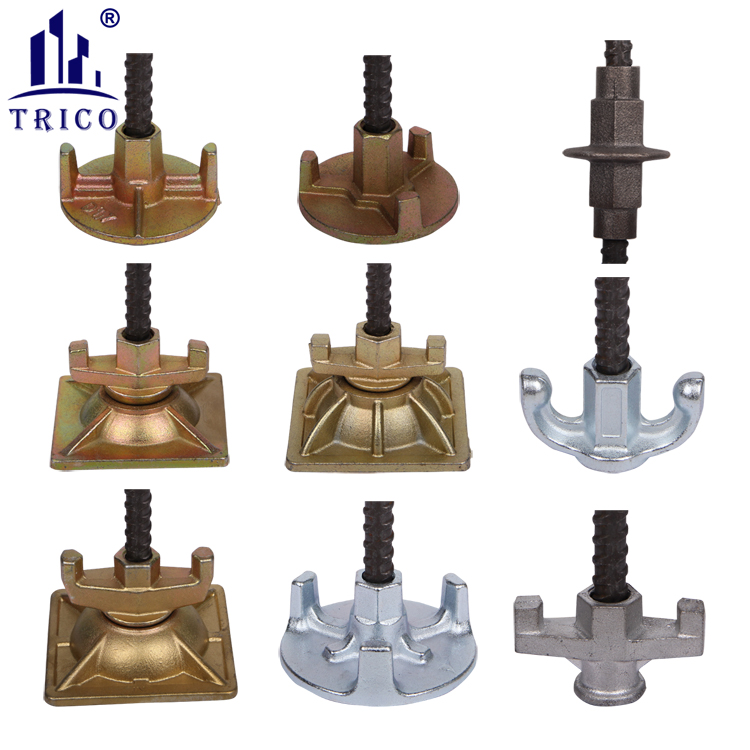

| Ductile Iron Casting Formwork Wing Nut | ||||
 | Material | Ductile Iron Casting | Packing | Bags or Pallets |
| Diameter | D15mm D20mm | Ultimate Load | Over 180kn | |
| Feature | One Arm Two Arms | Color | Gold, Silver or Black | |
| Surface Treatment | Galvanized or as Nature | Capacity | 300tons per month | |
| Application | Formwork Tie Rod System | Related Products | Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc. | |
| OEM Design is Acceptable | ||||
| Formwork Tie Rod Washer Plate/Waler Plate | ||||
 | Material | Carbon Steel | Packing | Bags or Boxes |
| Size | 100x100mm 100x130mm 120x120mm | Thickness | 4.0-20.0mm | |
| Surface Treatment | Galvanized or as Nature | Capacity | 300tons per month | |
| Application | Formwork Tie Rod System | Related Products | Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc. | |
OEM Design is Acceptable | ||||
| Ductile Iron Casting Formwork Hex Nut | |||||||
 | Material | Ductile Iron Casting | Packing | Bags or Pallets | |||
| Diameter | D15mm | Ultimate Load | Over 180kn | ||||
| Feature | One Arm Two Arms | Color | Gold, Silver or Black | ||||
| Surface Treatment | Galvanized or as Nature | Capacity | 300tons per month | ||||
| Application | Formwork Tie Rod System | Related Products | Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc. | ||||
| OEM Design is Acceptable | |||||||
| Machining Weldable Formwork Hex Nut Connector | |||||||
 | Material | 45# Steel | Packing | Bags or Pallets | |||
| Diameter | D15mm D20mm | Color | Black,Silver or Gold | ||||
| Surface Treatment | Galvanized or Black | Application | Concrete Formwork | ||||
| Related Products | Tie Rod, Tie Nut, Water Stop, Washer Plate | ||||||
| OEM Sizes are Available | |||||||
Sample:
Free sample is available.

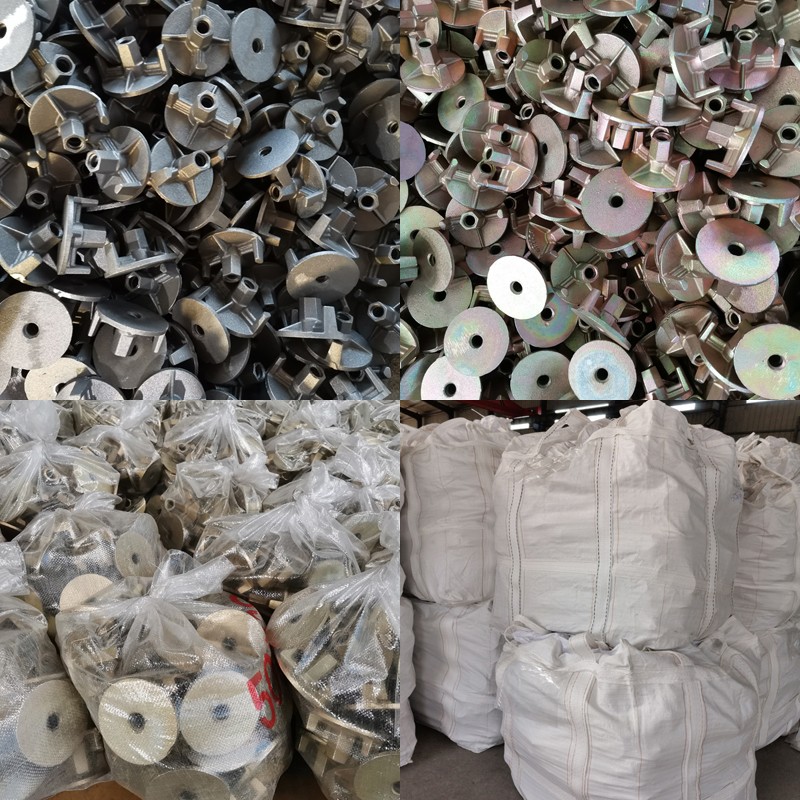

Packaging:
In woven bag or on pallet or done as your demand
Formwork tie rod is one of the most important accessories in a poured wall project. We Hebei Trico supply different types of concrete tie rods, including the Hot Rolled discontinuous thread tie rod (with the breaking load of 180kn) and Cold Rolled continuous tie rods (with the breaking load of 140kn).
The concrete tie rods are used with various formwork accessories in concrete construction. Both the hot rolled and cold rolled the tie rods are able to work with formwork wing nuts, concrete anchor nuts, hex nuts, connection nuts, washer plates, formwork wedge clamps, formwork spring clamps, water stopper/water barrier nut, combi plate nut, plastic cones, plastic tubes, etc.
All of these items are popularly used for concrete formwork & shuttering systems, including wall formwork, column formwork, slab formwork, beam formwork, etc.
If you are on market for formwork tie rods and the related formwork accessories, welcome to contact us. OEM is available as your requirement.
