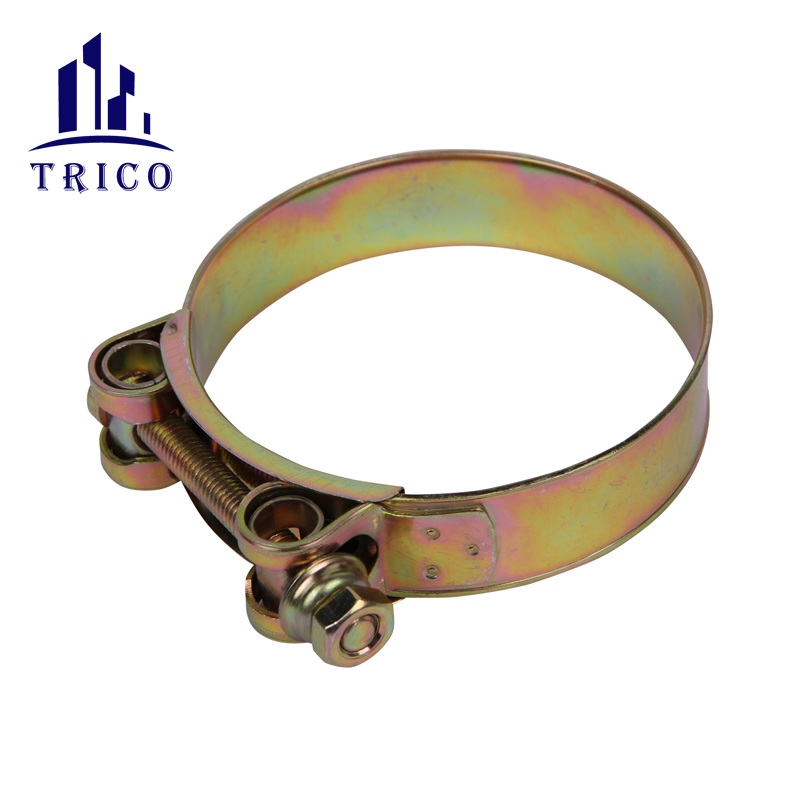

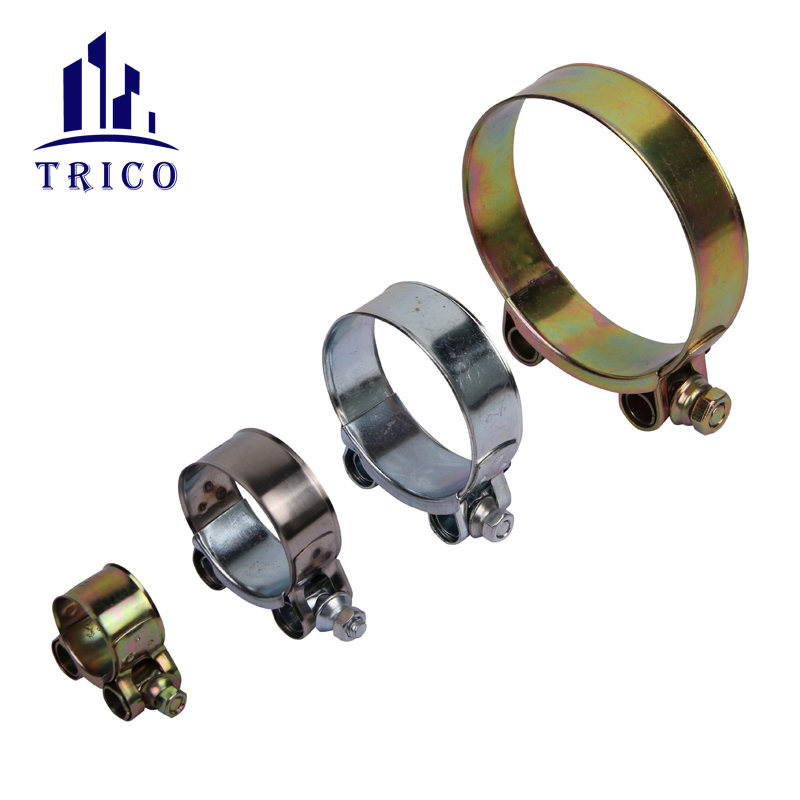

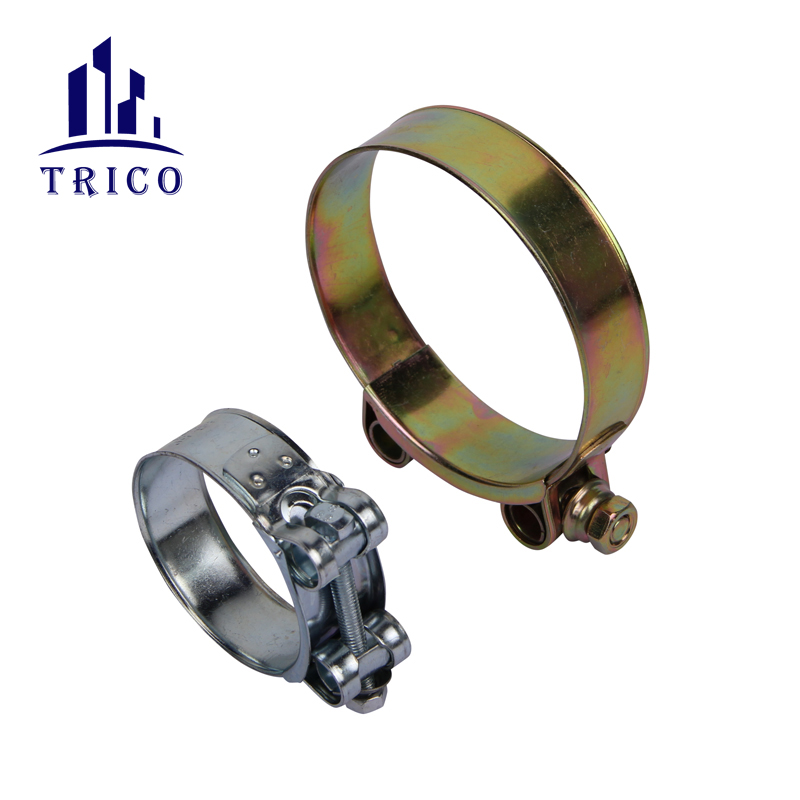

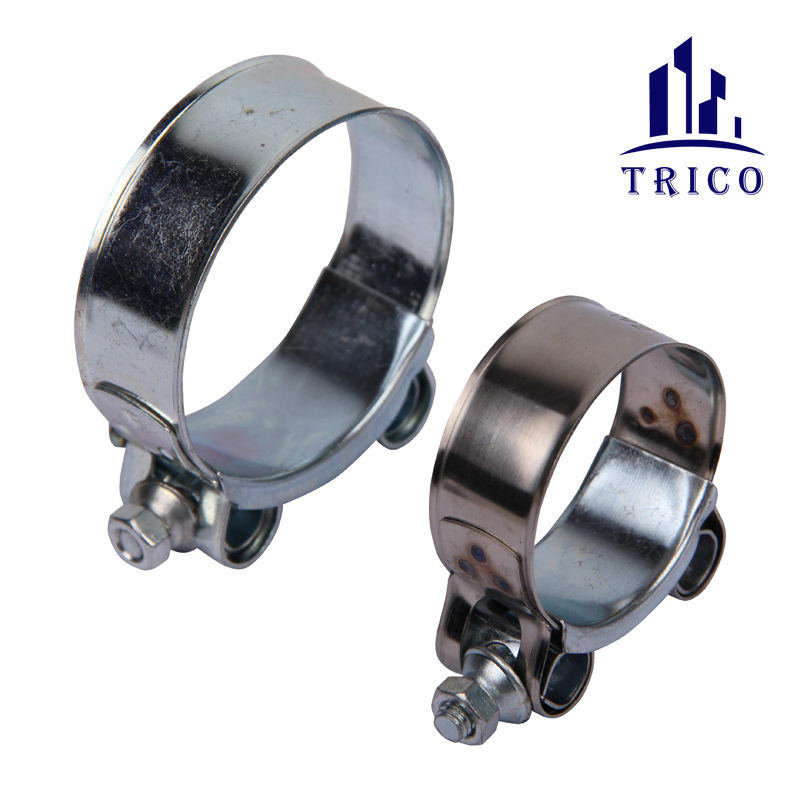

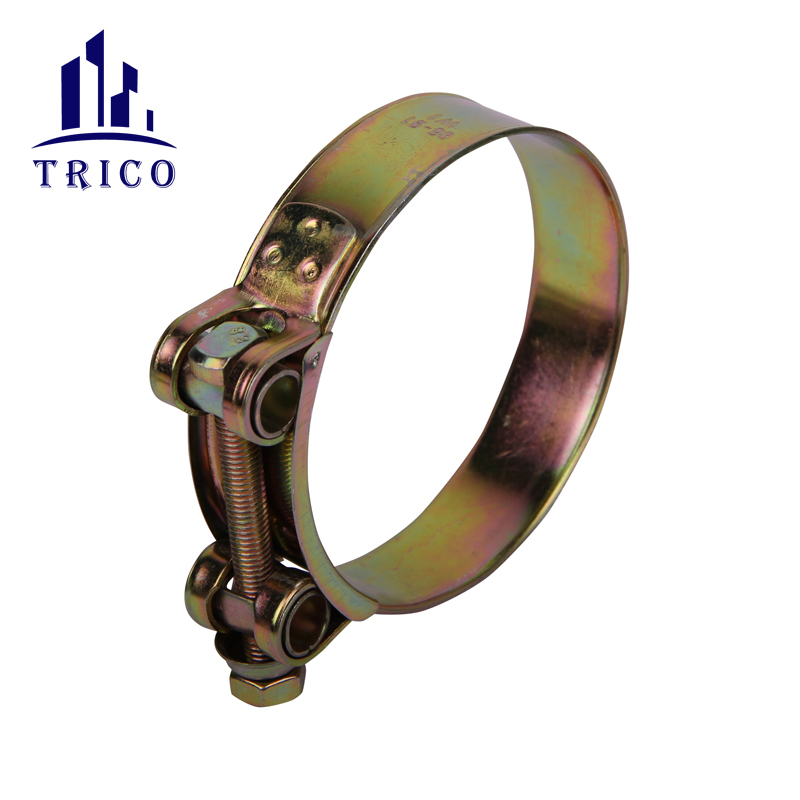

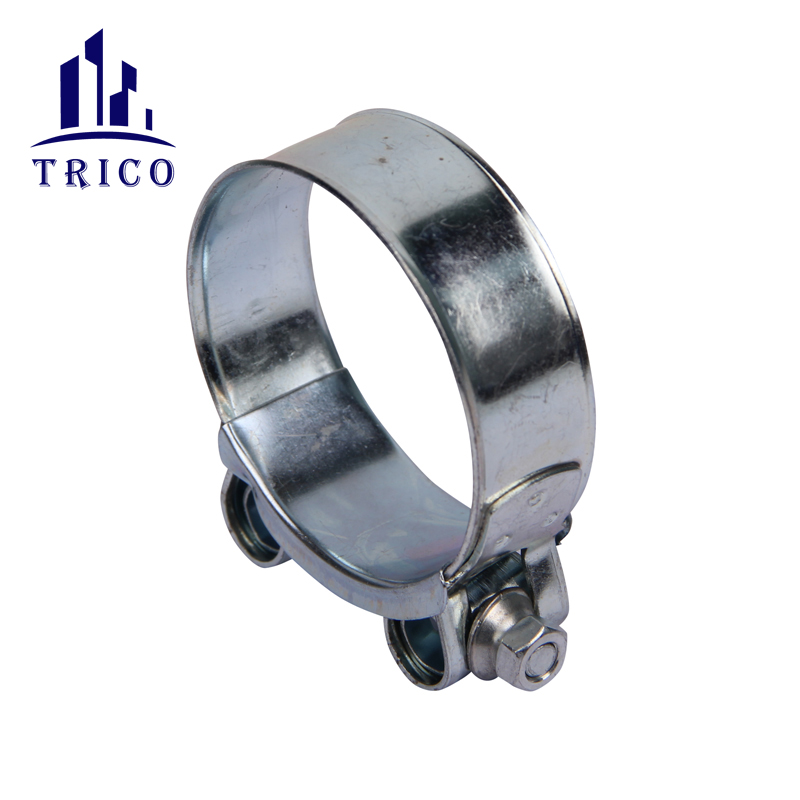

Single Bolt Hollow Hose Clamp
  • Single Bolt Hollow Hose Clamp
  • Single Bolt Hollow Hose Clamp
  • Single Bolt Hollow Hose Clamp
  • Single Bolt Hollow Hose Clamp
  • Single Bolt Hollow Hose Clamp
  • Single Bolt Hollow Hose Clamp
Single Bolt Hollow Hose ClampSingle Bolt Hollow Hose ClampSingle Bolt Hollow Hose ClampSingle Bolt Hollow Hose ClampSingle Bolt Hollow Hose ClampSingle Bolt Hollow Hose Clamp

Single Bolt Hollow Hose Clamp

Product Introduction:

The unique design hollow hose clamp ensures an even clamping pressure that function at high temperatures such as exhaust pipes and coolant or turbo hoses.

The ingenious clamp allows easy fitment to pipes and hoses without overly stressing the clamp during assemly.

Product Details

Single Bolt Hollow Hose Clamp

Single Bolt Hose Clamp is for heavy duty applications where large tightening forces are required.

The unique design hollow hose clamp ensures an even clamping pressure that function at high temperatures such as exhaust pipes and coolant or turbo hoses.

The ingenious clamp allows easy fitment to pipes and hoses without overly stressing the clamp during assemly.

Advatages

Rolled Edge to prevent hose damage.

Bigger adjusting range from 17-19 mm to 240-252mm.

Studry lock

Evenly stress when fastening

Easy installation- a bolt is used for tightening not a nut which ensures full travel when using a socket.

Supperior sealing-tighter seals at lower bolt torques.

Heavy Duty Single Bolt Hollow Hose Clamp
Material

W1: all parts are carbon steel

W2: band and bridge are SS201 or SS304, other parts are carbon steel

W4: all parts are stainless steel SS201 or SS304

W5: all parts are stainless steel SS316

Bandwidth*Thickness

(mm)

Size

(mm)

ScrewPcs/Ctn


G.W./Ctn

(kg)

Torque
18*0.617-19M5
2506.75≥5
20-22M52506.83≥5
23-25M52506.95≥5
26-28M52507.28≥5
20*0.8
29-31M62008.90≥10
32-35M62009.20≥10
36-39M62009.50≥10
40-43
M62009.70≥10
22*1.244-47M620013.42≥10
48-51M620013.72≥10
52-55M620014.58≥10
56-59M610014.84≥10
60-53
M61007.61≥10
64-67M61007.79≥10
24*1.568-73M810013.46≥20
74-79M810014.00≥20
80-85M810014.22≥20
86-91M810014.71≥20
92-97M810013.20≥20
98-103
M810013.80≥20
104-112M810014.50≥20
113-121M810014.60≥20
122-130M8507.40≥35
26*1.7
131-139M105010.05≥35
140-148
M105010.45≥35
149-161M10255.45≥35
162-174M10255.55≥35
175-187M10255.78≥35
188-200M10256.03≥35
201-213M10256.23≥35
214-226M10256.45≥35
227-239
M10256.73≥35
240-252M10
256.90≥35

Single Bolt Hose Clamp
