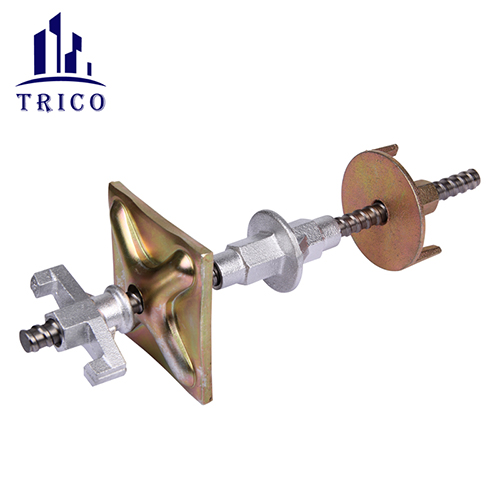

Various form tie rod system accessories available, such as steel Formwork tie rod, wing nut, water stopper, tie nut, washer plate, waler plate, hex nut, connection nut, etc.
Alll of these formwork accessories are popularly used for concrete formwork & shuttering systems, including wall formwork, column formwork, slab formwork, beam formwork, bridge formwork, etc
Item name | Photo | Dianeter | Weight | Finishing | Breaking load |

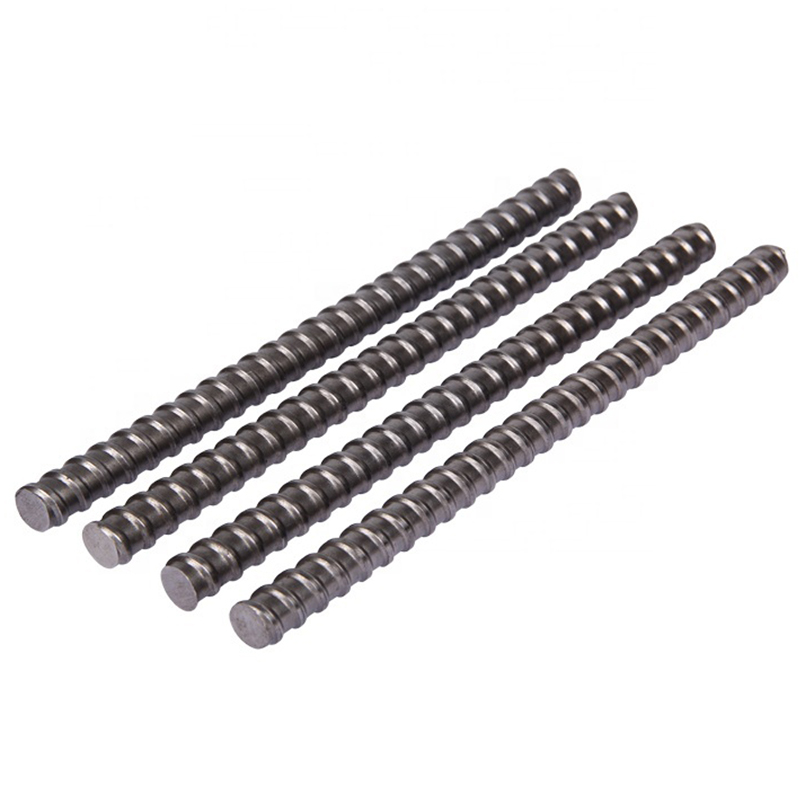

Cold rolled tie rod |  | D15 | 1.5kg/m | Self color or galvanizing | 140Kn for steel #45 |

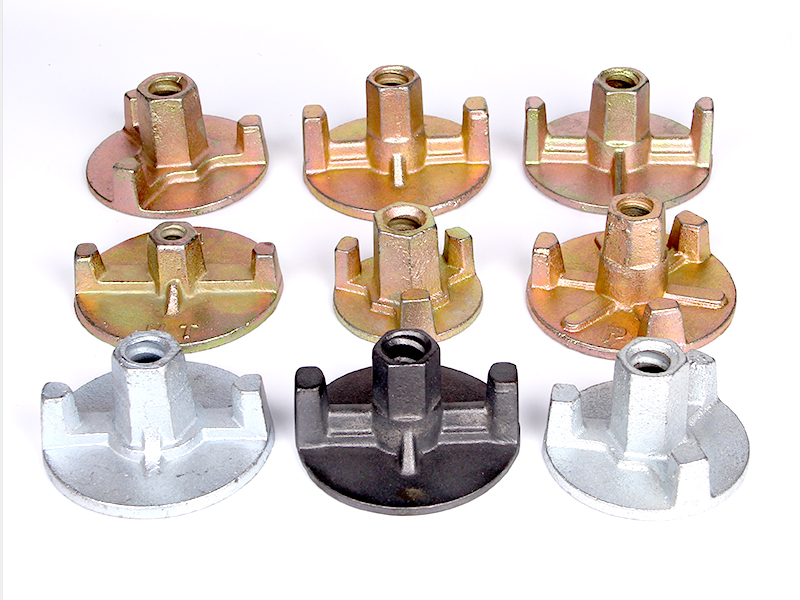

Wing Nut |  | D15 | 300g/pc | Self color or galvanizing | 180Kn |

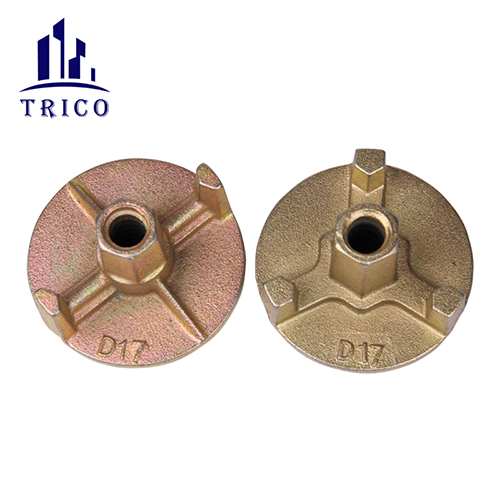

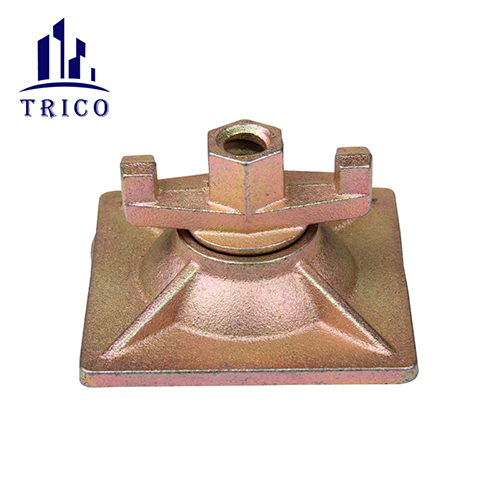

Tie nut/wing nut |  | D15 | Up to base sizes and nut shapes | Self color or galvanizing | 180Kn |

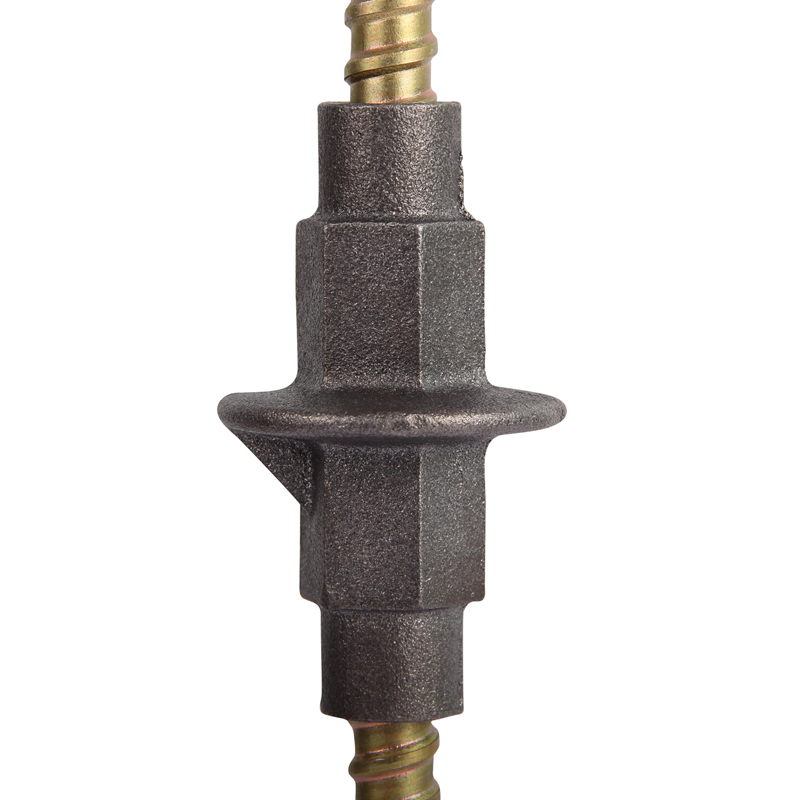

Water stop |  | D15 | 440g,500g | Self color or galvanizing | 180Kn |

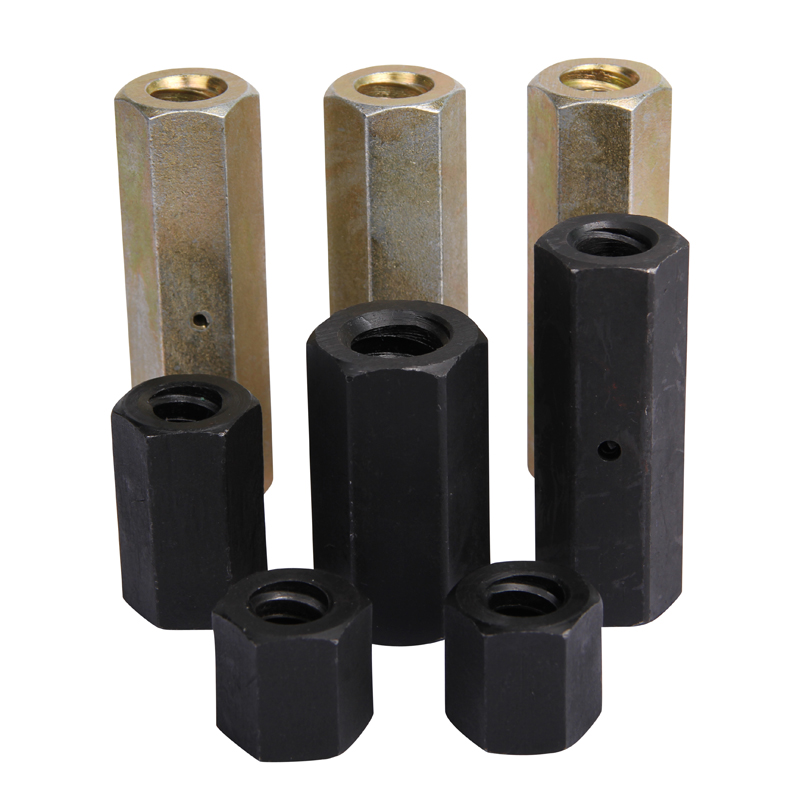

Hex nut/connection nut |  | D15*30 D15*50 D15*100
| Up to Sizes | Self color or galvanizing | 180Kn |

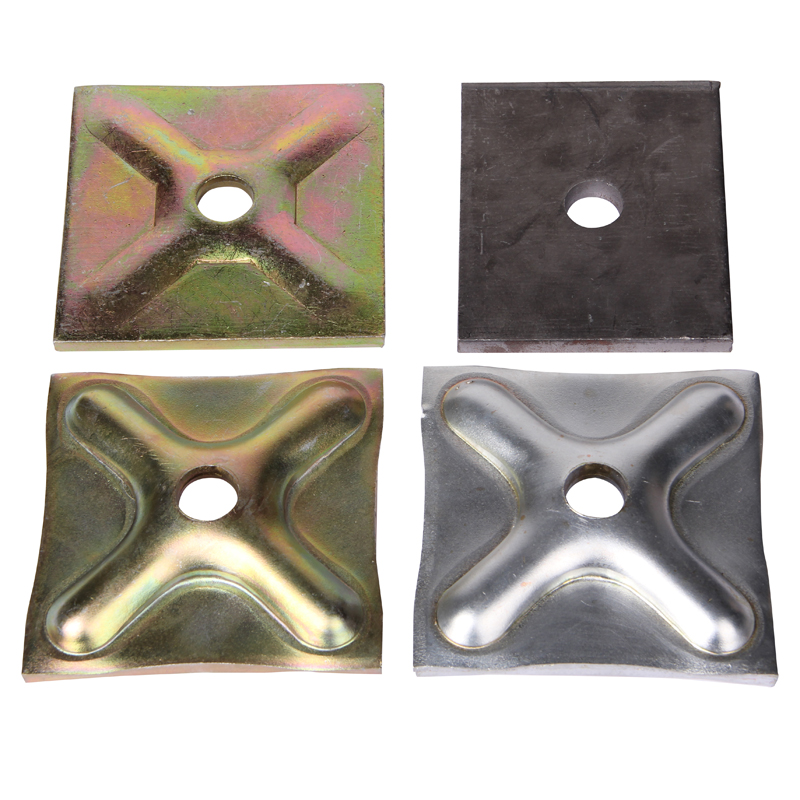

Waler plate |  | 120*120*8/10mm 100*100*8mm 100*125*8/10mm,etc | Up to thickness | Self color or galvanizing | / |
Different kind of diameter tie rod and related wing nut, water stop, hex nut, connection nut, washer plates are available as requirement.
