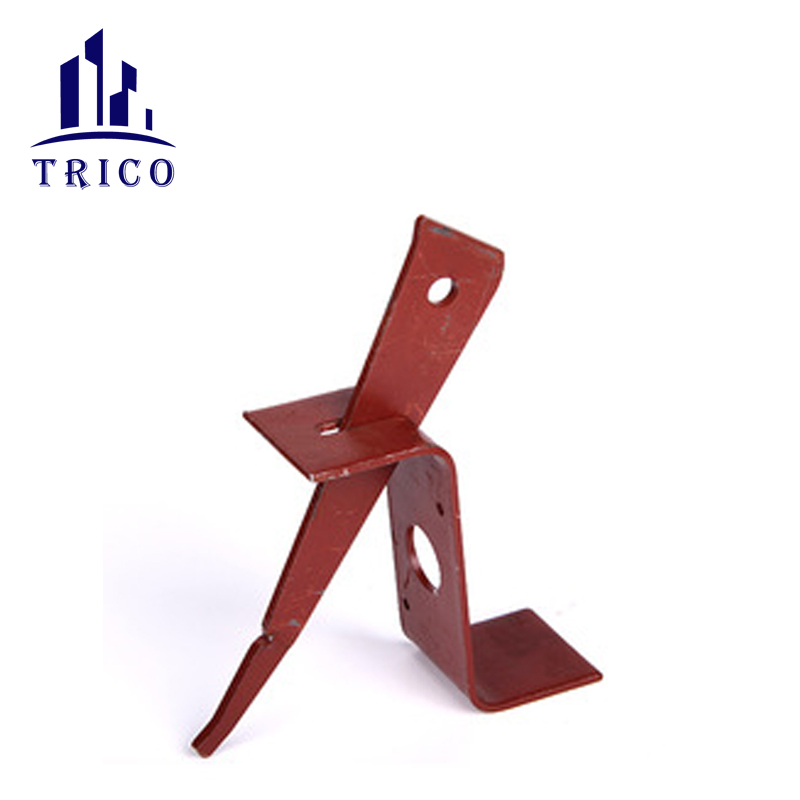

Concrete Forming Accessories Z Tie Holder and Waler Tie
  • Concrete Forming Accessories Z Tie Holder and Waler Tie
  • Concrete Forming Accessories Z Tie Holder and Waler Tie
  • Concrete Forming Accessories Z Tie Holder and Waler Tie
  • Concrete Forming Accessories Z Tie Holder and Waler Tie
  • Concrete Forming Accessories Z Tie Holder and Waler Tie
  • Concrete Forming Accessories Z Tie Holder and Waler Tie
Concrete Forming Accessories Z Tie Holder and Waler TieConcrete Forming Accessories Z Tie Holder and Waler TieConcrete Forming Accessories Z Tie Holder and Waler TieConcrete Forming Accessories Z Tie Holder and Waler TieConcrete Forming Accessories Z Tie Holder and Waler TieConcrete Forming Accessories Z Tie Holder and Waler Tie

Concrete Forming Accessories Z Tie Holder and Waler Tie

Product Introduction:

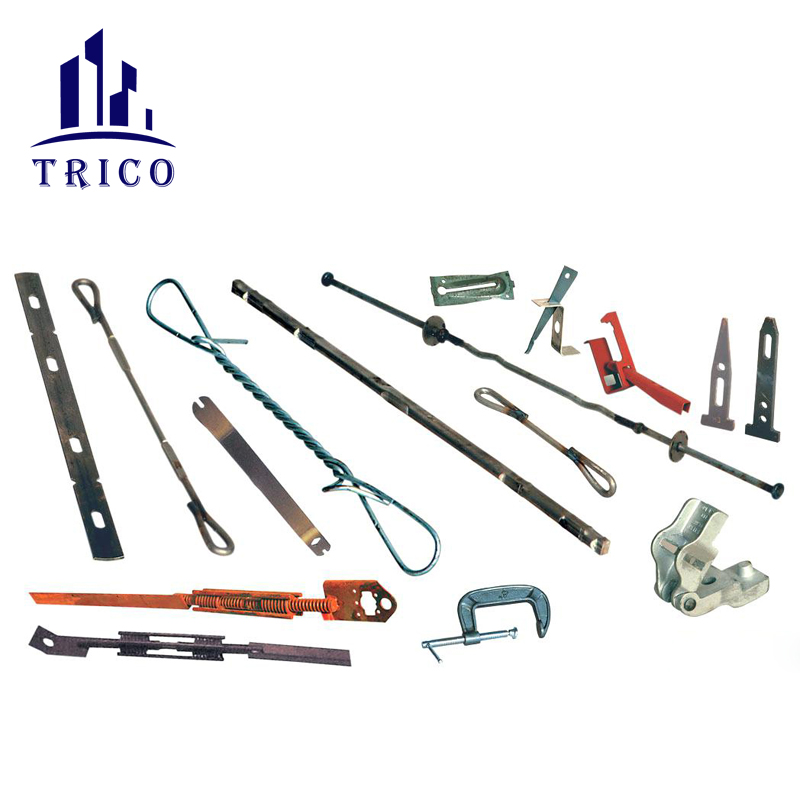

The full set of the Symons Formwork Accessories including the Wedge Bolt, Long Bolt, Short Bolt, X-Flat Tie, One Piece Waler Clamp, Z Tie Holders & Waler Tie, J-Strongback Hooks and Strongback Ties, Scaffold Brackets and Turnbuckles. The surface finish of the Z Tie Holder can be galvanized or painted.


Product Details

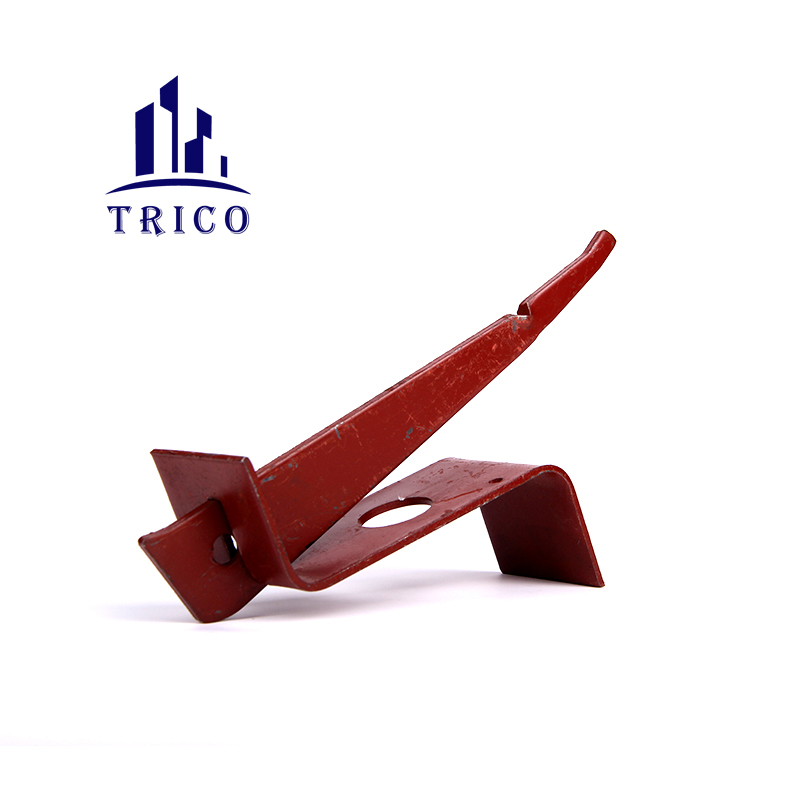

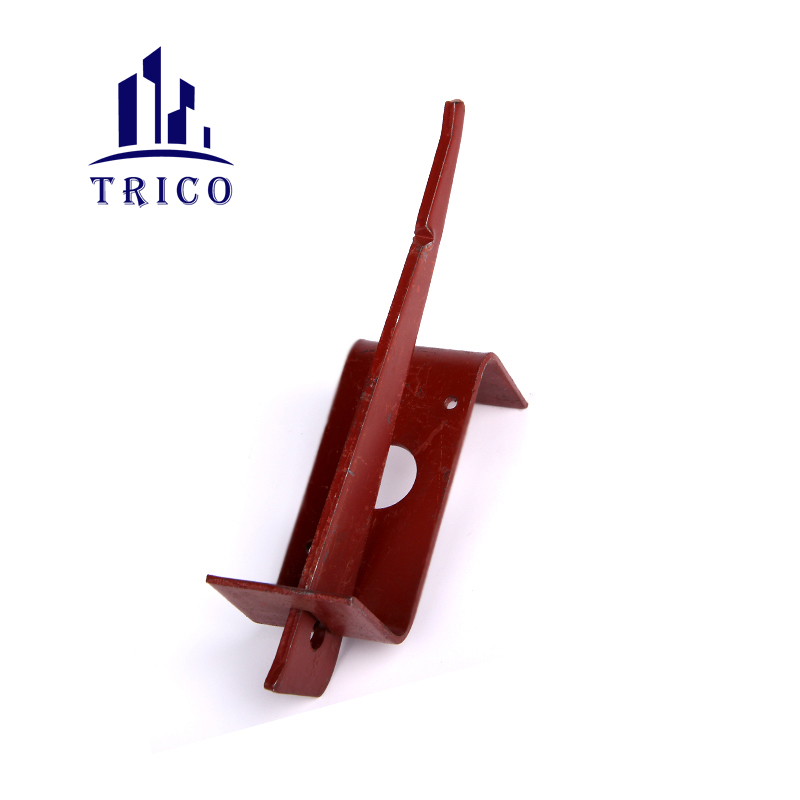

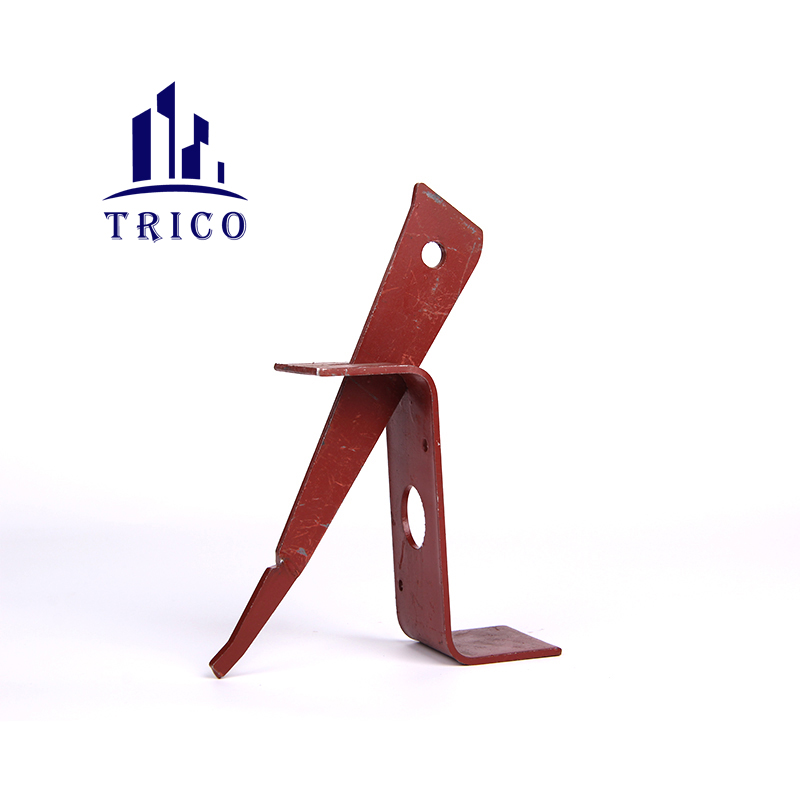

Concrete Forming Accessories Z Tie Holder and Waler Tie

The z tie holder used with the waler tie to secure double 2X lumbers wales to the forms.

Over length 6-3/16 designed to fit double 2x4 wales

Over length 8-1/32 desighed to fit double 2x6 wales

Concrete Forming Accessories Z Tie Holder and Waler Tie

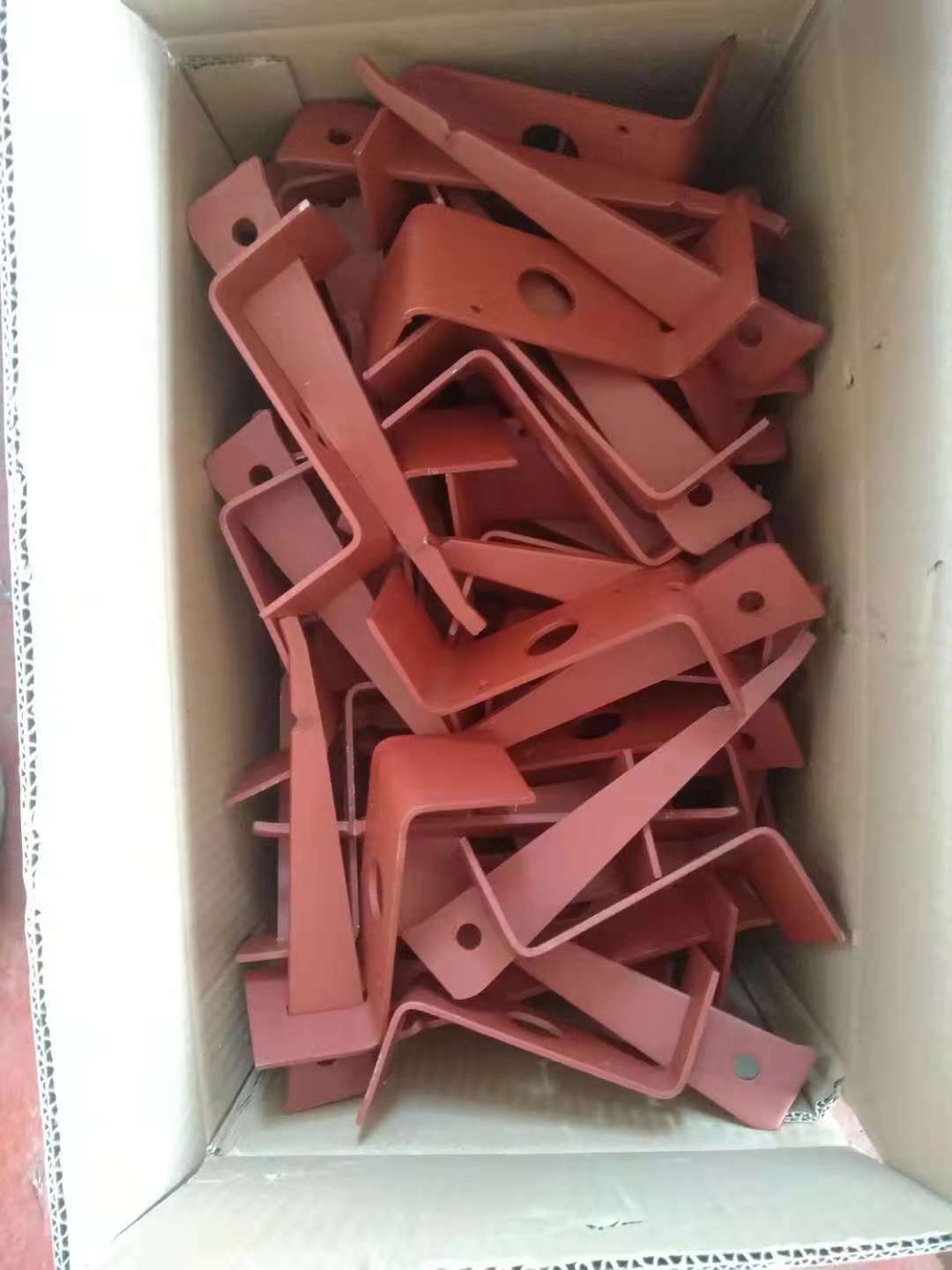

Packaging:


Concrete Forming Accessories Z Tie Holder and Waler Tie

As a pre-engineered concrete forming systemSymons Forms have been used in some of the most iconic buildings around the world. These systems are factory built with impressive reusability, making it an ideal choice for the construction of a variety of structures.

As a complete solution for all your projects, the Symons Forming system can be used to quickly build concrete walls, haunches, stoops, and even pedestals. Available in a wide range of sizes, it can be combined to form a number of structures in any dimensions.

Bolts

Wedge Bolts

Wedge bolts connect panels and ties together, eliminating the need for special tools or equipment in the set up process. Two identical wedge bolts work as a single lock-bolt set, connecting and clamping together. However, additional bolts may be needed for walker attachments, scaffold brackets, etc.

Long Bolts

imilar to a wedge bolt, these long bolts connect the 1, 1 ½, and 2-inch steel fillers, and are punched with two ¼ inch holes to make room for 16, or 20, D nails.

Short Bolts

Short Bolts are used to attach the pilaster form to a steel ply form. They eliminate the need for short stop wedge bolts and, upon proper installation, make stripping much easier.

X Flat Ties

X Flat Ties are used with Wedge Bolts to secure and space modular forms.  X Flat ties are available in 6″ up to 84″ in 1/2″ increments. Standard breakback is 1/4″.

One Piece Waler Clamps

One Piece Waler Clamps attach through the wedge bolt slot of modular type forms to provide wedge action aligning with single or double lumber.

Z Tie Holders & Waler Ties

Z Tie Holders are used in conjunction with Waler Ties to secure double 2x lumber wales to modular type forms.  The Waler Tie is available in two sizes to accommodate 2 x 4 and 2 x 6 lumber.



Trico offers the full set of the Symon Formwork accessories with high quality and competitive price. Please contact us for more details.
