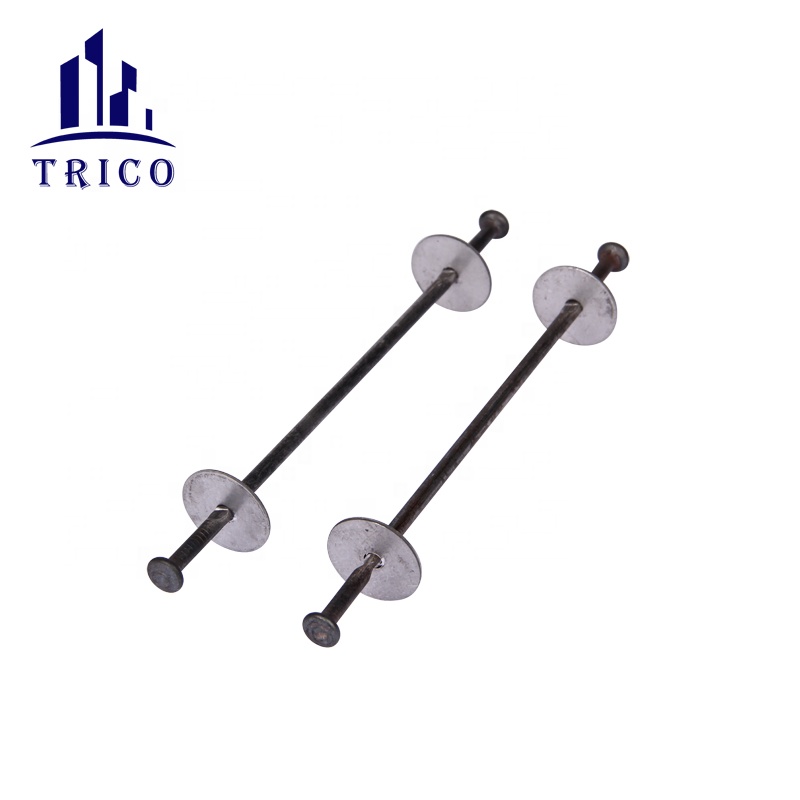

Concrete Ply Forming Accessories Snap Tie with Steel Washer
Short end 4-3/4" and long end 8-1/4". Snap Tie with washer are available with fixed 1-1/4" washers for a flush break back. This breakback routinely results in the wire being flush with the surface of the concrete or slightly protruding outside the surface. When a finished wall is desired, this tie is also available with in a 1" cone and a 1" breakback.
Concrete Ply Forming Accessories Snap Tie with Steel Washer
Snap Ties are manufactured with integral heads, and Metal or Plastic Form Spreaders. Snap Ties are designed to easily tie lumber forming systems. Snap Ties have a nominal 1" breakback. Each Tie incorporates an anti-turn device in order to properly break after use.
Features
Snap Ties provide a positive breakback to prohibit rust stains.
Wall sizes up to 36" are readily available.
Custom sizes are available.
| Snap Tie with Steel Washer 4-3/4" End | Snap Tie with Steel Washer 8-1/4" End | ||
| Wall Thickness | Unit Weight (g) | Wall Thickness | Unit Weight (g) |
| 6" | 0.0936" | 6" | 0.128 |
| 7" | 0.098 | 7" | 0.133 |
| 8" | 0.103 | 8" | 0.138 |
| 9" | 0.108 | 9" | 0.143 |
| 10" | 0.113 | 10" | 0.148 |
| 11" | 0.118 | 11" | 0.153 |
| 12" | 0.123 | 12" | 0.158 |
| 13" | 0.128 | 13" | 0.163 |
| 14" | 0.133 | 14" | 0.168 |
| 15" | 0.138 | 15" | 0.173 |
| 16" | 0.143 | 16" | 0.178 |
| 17" | 0.148 | 17" | 0.183 |
| 18" | 0.153 | 18" | 0.188 |
| 19" | 0.158 | 19" | 0.193 |
| 20" | 0.163 | 20" | 0.198 |
| 21" | 0.168 | 21" | 0.203 |
| 22" | 0.173 | 22" | 0.208 |
| 23" | 0.178 | 23" | 0.213 |
| 24" | 0.183 | 24" | 0.218 |
| 25" | 0.188 | 25" | 0.223 |
| 26" | 0.193 | 26" | 0.228 |
| 27" | 0.198 | 27" | 0.233 |
| 28" | 0.203 | 28" | 0.238 |
| 29" | 0.208 | 29" | 0.243 |
| 30" | 0.213 | 30" | 0.248 |
| 31" | 0.218 | 31" | 0.253 |
| 32" | 0.223 | 32" | 0.258 |
| 33" | 0.228 | 33" | 0.263 |
| 34" | 0.233 | 34" | 0.268 |
| 35" | 0.238 | 35" | 0.223 |
| 36" | 0.243 | 36" | 0.228 |
| 37" | 0.248 | 37" | 0.283 |
| 38" | 0.253 | 38" | 0.288 |
| 39" | 0.258 | 39" | 0.293 |
| 40" | 0.263 | 40" | 0.298 |
