Hollow Plastic Formwork Board to Replace Wood Template
  • Hollow Plastic Formwork Board to Replace Wood Template
  • Hollow Plastic Formwork Board to Replace Wood Template
  • Hollow Plastic Formwork Board to Replace Wood Template
  • Hollow Plastic Formwork Board to Replace Wood Template
  • Hollow Plastic Formwork Board to Replace Wood Template
  • Hollow Plastic Formwork Board to Replace Wood Template
Hollow Plastic Formwork Board to Replace Wood TemplateHollow Plastic Formwork Board to Replace Wood TemplateHollow Plastic Formwork Board to Replace Wood TemplateHollow Plastic Formwork Board to Replace Wood TemplateHollow Plastic Formwork Board to Replace Wood TemplateHollow Plastic Formwork Board to Replace Wood Template

Hollow Plastic Formwork Board to Replace Wood Template

Product Introduction:

Hollow plastic building formwork is a kind of energy-saving and green environmental protection product, pp plastic combined with macromolecule nano-technology. It can replace the wood plywood totally, good performance than WPC formwrok and PVC formwork.

It can reuse over 60 times. Different Sizes are Available like 915*1830mm/1220*2440mm


Product Details

Hollow Plastic Formwork

What is Plastic Formwork?

Hollow plastic building formwork is a kind of energy-saving and green environmental protection product, pp plastic combined with macromolecule nano-technology. It is a new product after wood formwork, composite steel formwork, bamboo-wood bonding formwork and all-steel large formwork. It is energy saving and environmental protection,andcan completely replace the traditional steel formwork, wood formwork, square wood. What’s more, its amortization cost is very low.

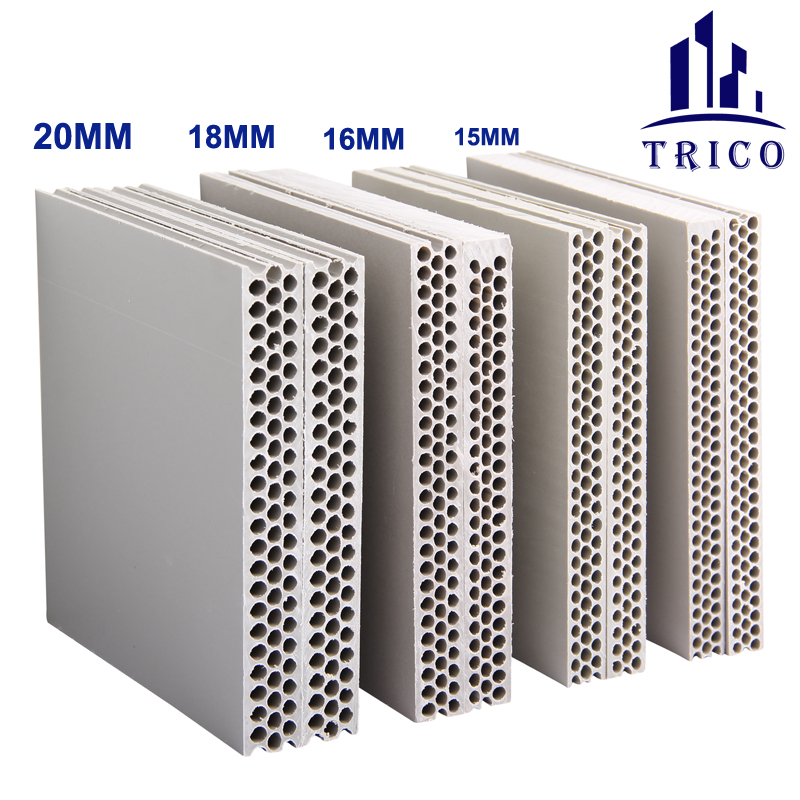

PP(Polypropylene) Formwork Board Specification

SizeWeightHole TypePackaging20GP Quantity40HQ Quantity
1220*2440*12mm21±1kg
Square Hole75pcs/Pallet
600pcs1200pcs
1220*2440*14mm24±1kgRound Hole65pcs/pallet520pcs1040pcs
1220*2440*15mm25±1kgRound Hole60pcs/pallet480pcs960pcs
1220*2440*16mm27±1kgRound Hole55pcs/pallet440pcs880pcs
1220*2440*18mm31±1kgRound Hole50pcs/pallet400pcs800pcs
1220*2440*20mm33±1kgRound Hole45pcs/pallet360pcs720pcs
If Special Sizes need, please contact with us!

New Desgin&Advantages


1. Round Hole Structural

Square Hole is updated to Round Hole. Structural Advantages make plastic formwork board stronger.

Concrete Molds Column Plastic PVC Formwork 4*8 Feet New Design Round Hole Plastic Formwork for Concrete Wall Building


2. Waterproof

Hollow plastic formwork is weather resistance, rain and shine are no longer an issue.


Concrete Molds Column Plastic PVC Formwork 4*8 Feet New Design Round Hole Plastic Formwork for Concrete Wall Building

3. Light Weight

It is lighter, easier to carry and release worker from heavy labor.Manual operation, no crane required reducing 20% labor cost than plywood

Concrete Molds Column Plastic PVC Formwork 4*8 Feet New Design Round Hole Plastic Formwork for Concrete Wall Building

4.Surface does not require maintenance

High pressure water jet flushes surface of the plastic template, but matal formwork requires surface maintenance

Concrete Molds Column Plastic PVC Formwork 4*8 Feet New Design Round Hole Plastic Formwork for Concrete Wall Building

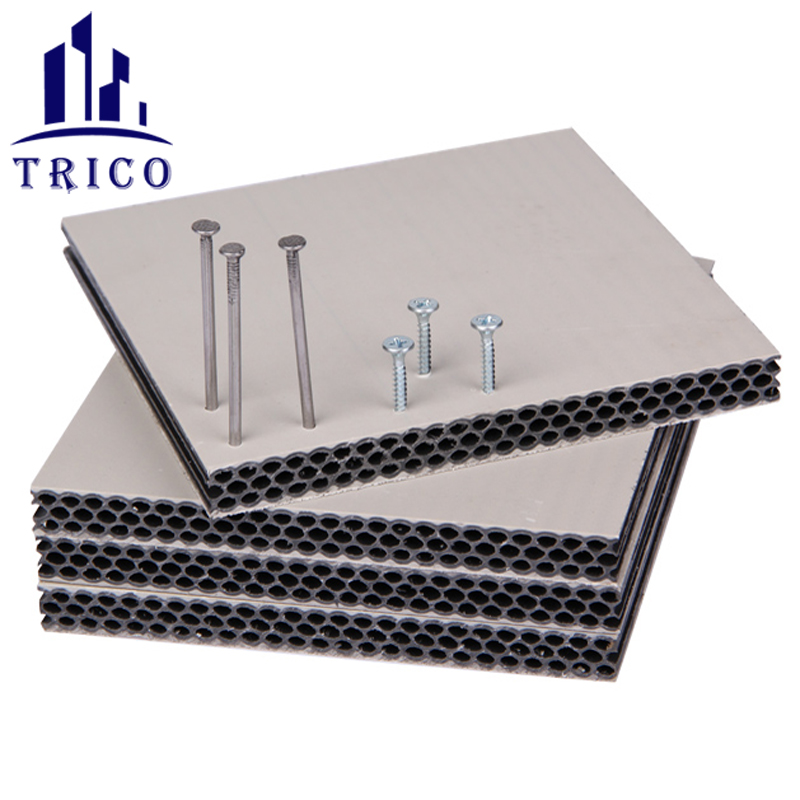

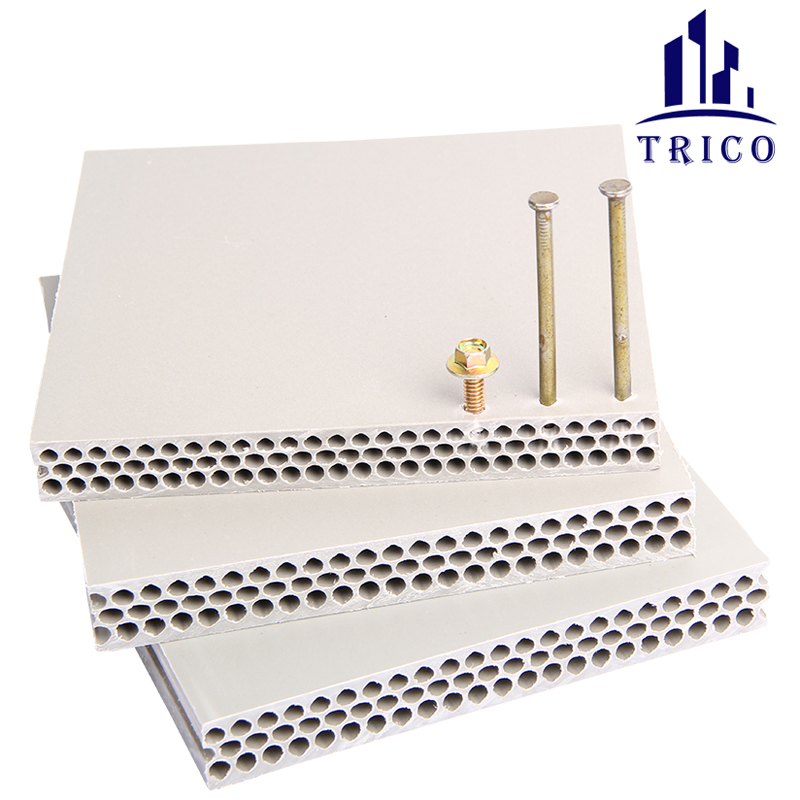

5. High Workability

User-friendly, work well with saw,nail,drill,cut,etc. Compatible with other materials such wood,steel,aluminum,etc.

Concrete Molds Column Plastic PVC Formwork 4*8 Feet New Design Round Hole Plastic Formwork for Concrete Wall Building

6. High Temperature Resistance

The material is polypropylene, the melting point can be as high as 167℃. PP vicat softening temperature of 150℃.

Concrete Molds Column Plastic PVC Formwork 4*8 Feet New Design Round Hole Plastic Formwork for Concrete Wall Building

7. Cost-Saving

One set plastic formwork can finish whole high building 2×35Floors, save 60% total budget than plywood and metal formwork

Concrete Molds Column Plastic PVC Formwork 4*8 Feet New Design Round Hole Plastic Formwork for Concrete Wall Building


Concrete Molds Column Plastic PVC Formwork 4*8 Feet New Design Round Hole Plastic Formwork for Concrete Wall Building

Concrete Molds Column Plastic PVC Formwork 4*8 Feet New Design Round Hole Plastic Formwork for Concrete Wall Building

Concrete Molds Column Plastic PVC Formwork 4*8 Feet New Design Round Hole Plastic Formwork for Concrete Wall BuildingConcrete Molds Column Plastic PVC Formwork 4*8 Feet New Design Round Hole Plastic Formwork for Concrete Wall Building

Concrete Molds Column Plastic PVC Formwork 4*8 Feet New Design Round Hole Plastic Formwork for Concrete Wall Building

Concrete Molds Column Plastic PVC Formwork 4*8 Feet New Design Round Hole Plastic Formwork for Concrete Wall Building

Concrete Molds Column Plastic PVC Formwork 4*8 Feet New Design Round Hole Plastic Formwork for Concrete Wall BuildingConcrete Molds Column Plastic PVC Formwork 4*8 Feet New Design Round Hole Plastic Formwork for Concrete Wall Building

Concrete Molds Column Plastic PVC Formwork 4*8 Feet New Design Round Hole Plastic Formwork for Concrete Wall Building
